MIF (Noise Budget)
kentaro.komori - 3:04 Friday 26 December 2025 (35964) Print this report
CARM noise budget in Nov. 2025

We have completed the CARM noise budget (Fig. 1).

The main references are as follows:
- Block diagram of the CARM loop: klog:35597
- Measurement of CMS transfer functions and noises: klog:35669, klog:35682
- RFPD transimpedance measurement: klog:35935
- Actuator efficiency measurements: klog:35884, klog:35897

The dominant noise sources are the CARM shot noise and the residual frequency noise resulting from the finite gain of the CARM loop.

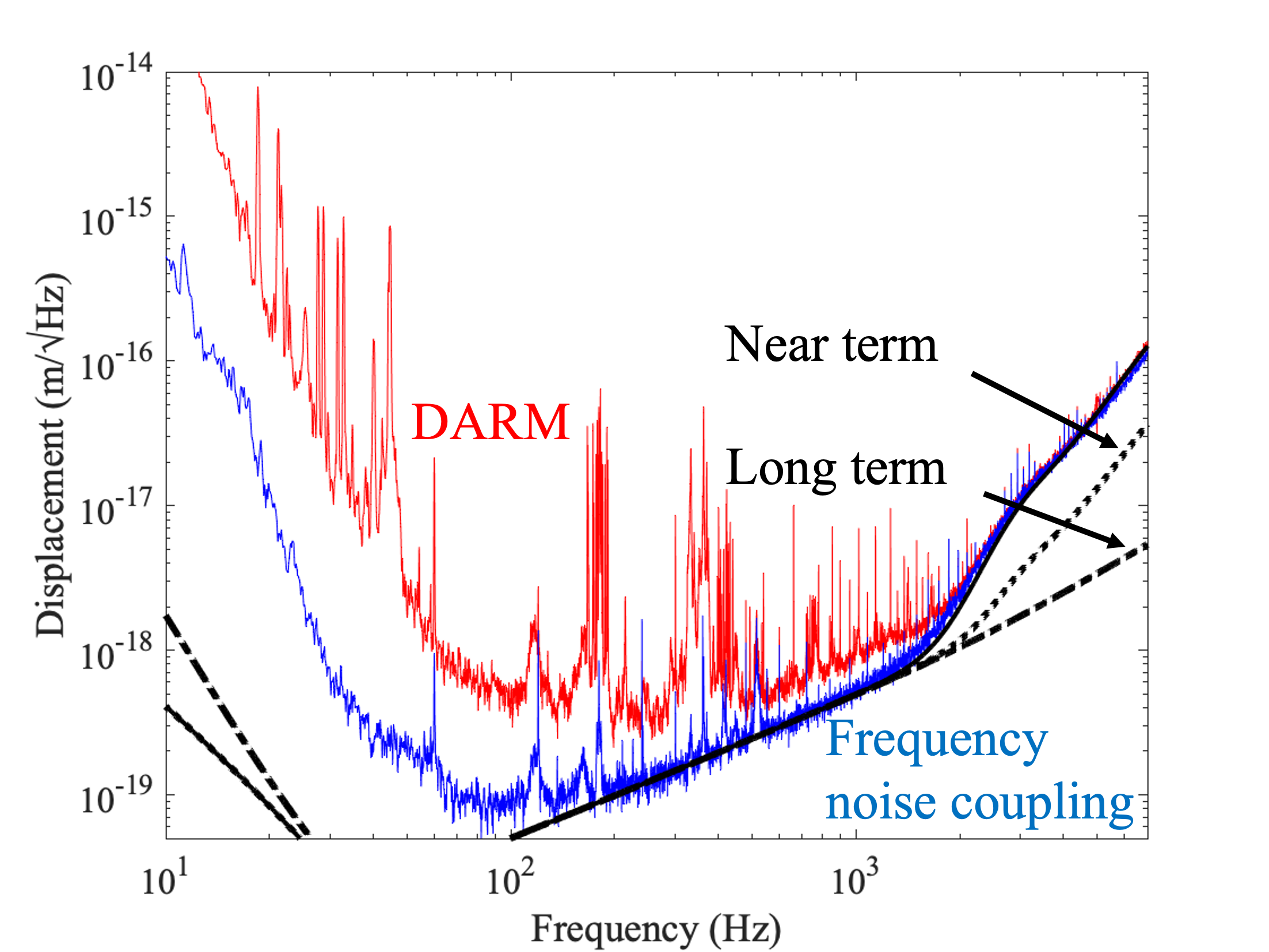

Further details, including future prospects for reducing CARM noise coupling (Fig.2), are presented in JGW-G2517117.

Images attached to this report
