2025/12/08

[Obata, Komori, Yokozawa]

This is the report on the Q-value measurements of the blade springs in the four Type-A suspensions.
We measured the Q-values of the pitch modes, which are the most critical for suspension thermal noise.

Over all gain in awggui of the excitation : 10

ETMX : 02:17:15 UTC, K1:VIS-ETMX_NBDAMP_P3_OUT_DQ

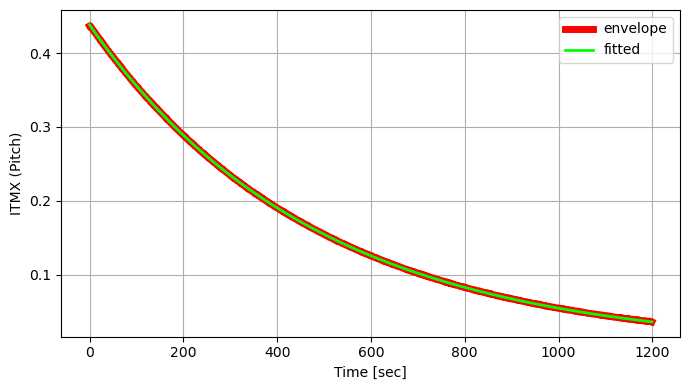

ITMX : 06:33:20 UTC, K1:VIS-ITMX_NBDAMP_P3_OUT_DQ

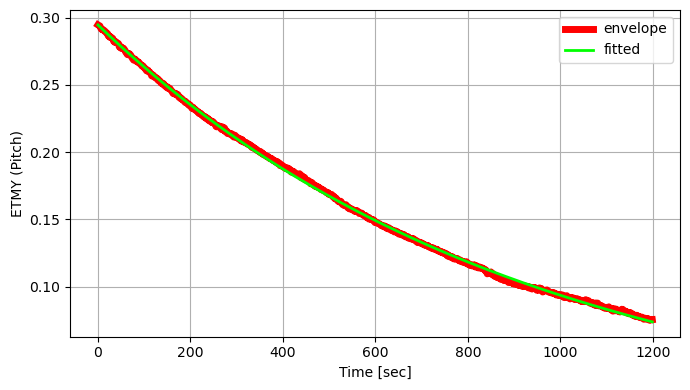

ETMY : 09:47:30 UTC, K1:VIS-ETMY_NBDAMP_P3_OUT_DQ

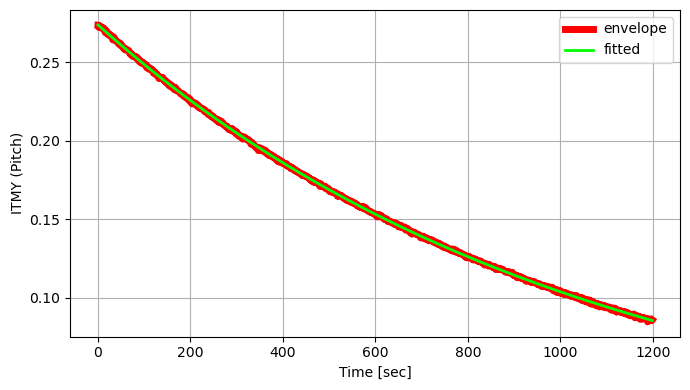

ITMY : 06:33:20 UTC, K1:VIS-ITMY_NBDAMP_P3_OUT_DQ

Measured Q-values are as the table and the pictures.
Compared to the previous measurements (32484, 32476), they aren't much different.
