A CAL Tcam session was performed to obtain beam position information necessary for Pcal. The parameters have already been updated, and SDF has already been accepted.
During this work, we adjusted Pcal-X beam position by using PCAL_EX2 pico. The related SDF has been accepted.

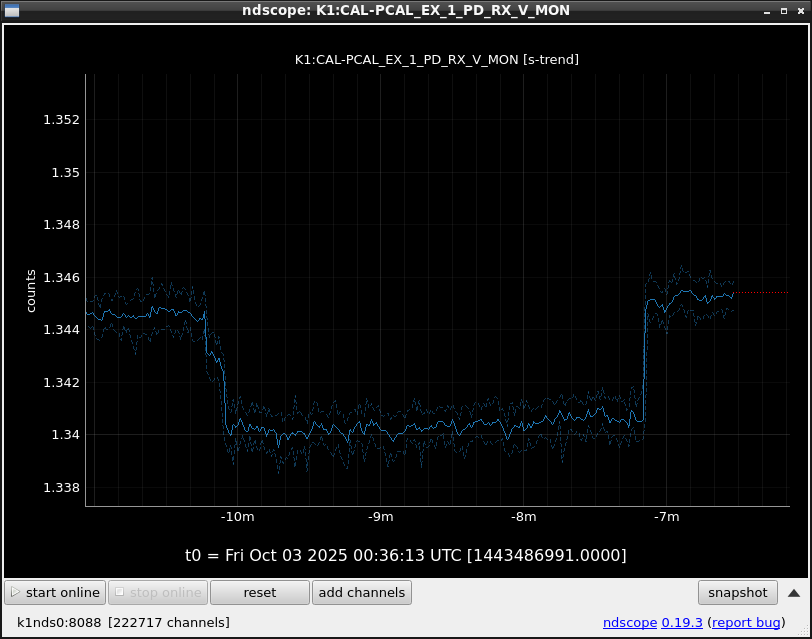

We could not see the RxPD output change before/after this beam position adjustment.
Operator: Dan Chen, Misato Onishi
Update Time: 2025/10/03 09:43:57
| EPICS Key | Before [mm] | After [mm] | Δ (After - Before) [mm] |
|---|---|---|---|
| K1:CAL-PCAL_EX_TCAM_PATH1_X | 1.03752 mm | -0.05083 mm | -1.08835 mm |
| K1:CAL-PCAL_EX_TCAM_PATH1_Y | 63.65155 mm | 64.40961 mm | +0.75806 mm |
| K1:CAL-PCAL_EX_TCAM_PATH2_X | 0.51673 mm | -2.28924 mm | -2.80597 mm |
| K1:CAL-PCAL_EX_TCAM_PATH2_Y | -67.11092 mm | -64.92314 mm | +2.18778 mm |
Update Time: 2025/10/03 09:44:50
| EPICS Key | Before [mm] | After [mm] | Δ (After - Before) [mm] |
|---|---|---|---|
| K1:CAL-PCAL_EY_TCAM_PATH1_X | 0.18050 mm | 1.39792 mm | +1.21742 mm |
| K1:CAL-PCAL_EY_TCAM_PATH1_Y | 63.77287 mm | 64.52843 mm | +0.75556 mm |
| K1:CAL-PCAL_EY_TCAM_PATH2_X | -1.18102 mm | -0.42296 mm | +0.75806 mm |
| K1:CAL-PCAL_EY_TCAM_PATH2_Y | -70.09640 mm | -69.94413 mm | +0.15227 mm |
