With Akio OMAE and Hirokazu YAMAGUCHI

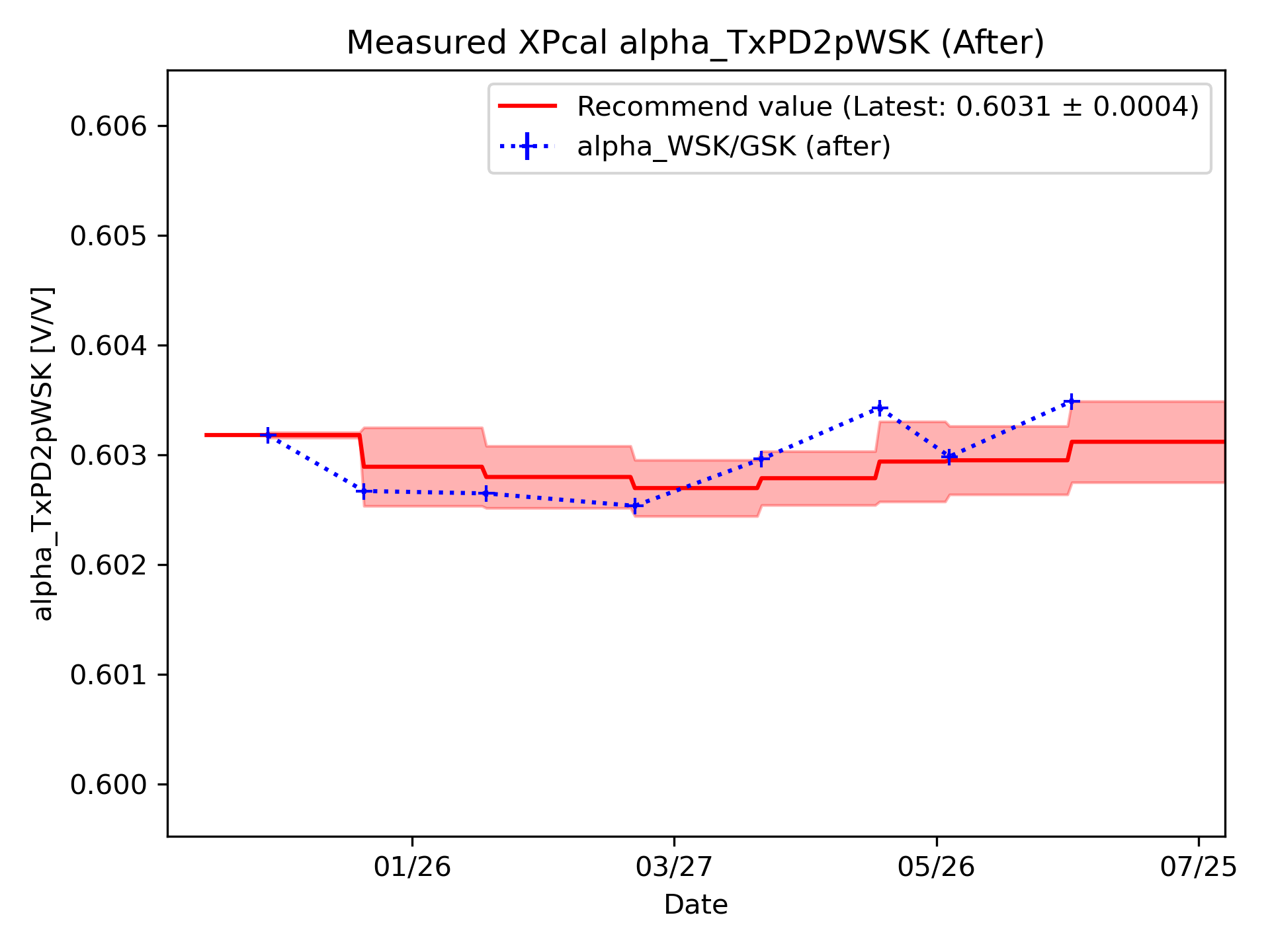

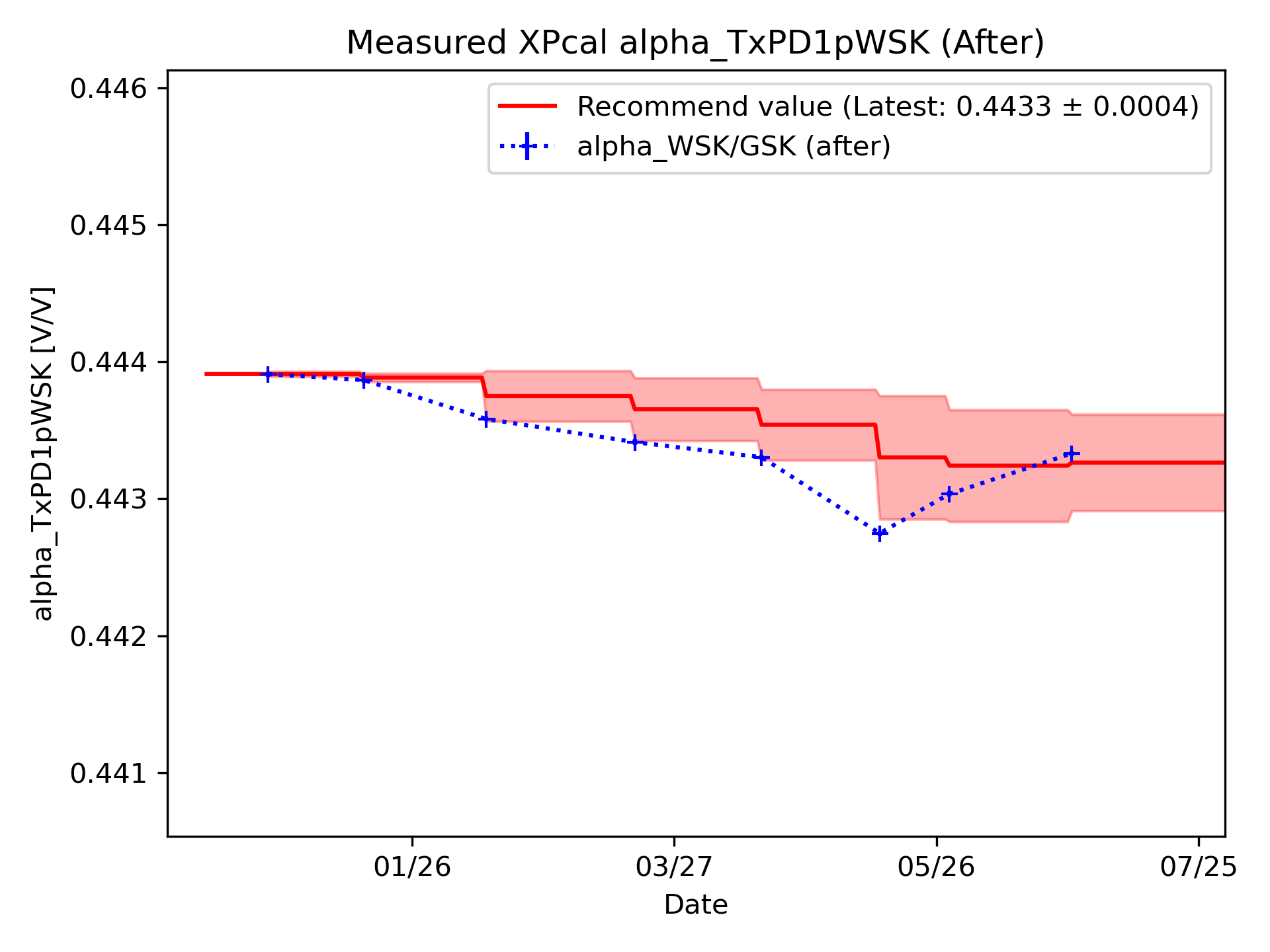

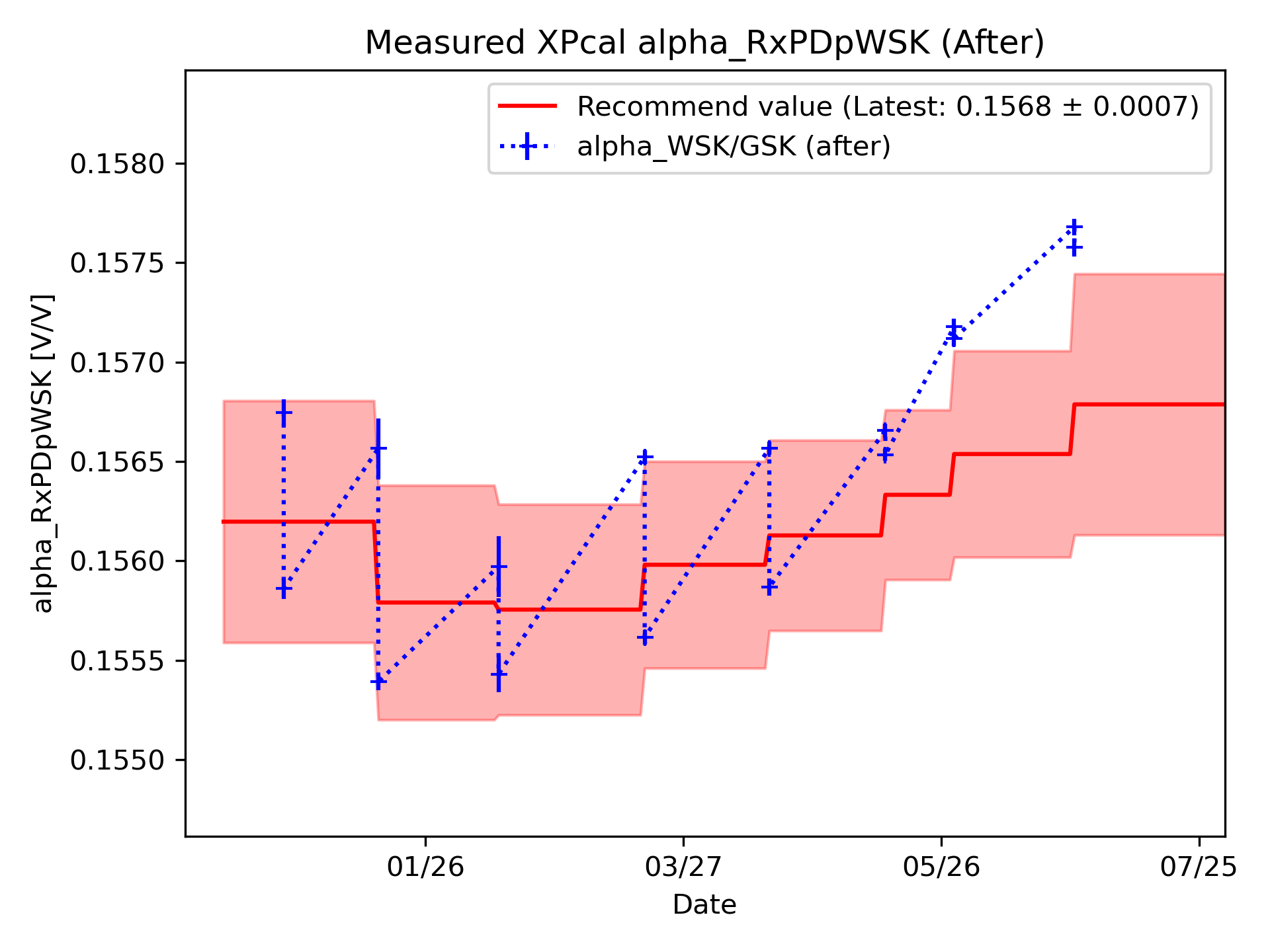

We performed the integrating sphere calibration for Pcal-X.
The online parameters were updated based on the calibration results.
A detailed report is attached as a PDF.
There were no significant changes in the RxPD or TxPD values.
Updated EPICS Channel Values (rounded to four significant figures):
| EPICS Key | Before | After |
|---|---|---|
| K1:CAL-PCAL_EX_1_PD_BG_TX_V_SET | 0.007299 | 0.006231 |
| K1:CAL-PCAL_EX_2_PD_BG_TX_V_SET | 0.006345 | 0.005251 |
| K1:CAL-PCAL_EX_1_PD_BG_RX_V_SET | -0.003784 | -0.003732 |
| K1:CAL-PCAL_EX_1_OE_T_SET | 0.9846 | 0.9841 |
| K1:CAL-PCAL_EX_1_OE_R_SET | 0.9846 | 0.9841 |
| K1:CAL-PCAL_EX_2_OE_T_SET | 0.9778 | 0.9776 |
| K1:CAL-PCAL_EX_2_OE_R_SET | 0.9778 | 0.9776 |
| K1:CAL-PCAL_EX_1_RX_V_R_SET | 0.5024 | 0.5023 |
| K1:CAL-PCAL_EX_2_RX_V_R_SET | 0.4976 | 0.4977 |
| K1:CAL-PCAL_EX_WSK_PER_TX1_SET | 0.5268 | 0.5268 |
| K1:CAL-PCAL_EX_WSK_PER_TX2_SET | 0.3873 | 0.3872 |
| K1:CAL-PCAL_EX_WSK_PER_RX_SET | 1.492 | 1.489 |
| K1:CAL-PCAL_EX_2_INJ_V_GAIN | 0.9483 | 0.9492 |
