takaaki.yokozawa - 12:05 Saturday 31 May 2025 (33985) Print this report
SDF check observation about the PEM channels
I checked the SDF status about the PEM channels for the observation state.

1. K1:PEM-*_SHINDO

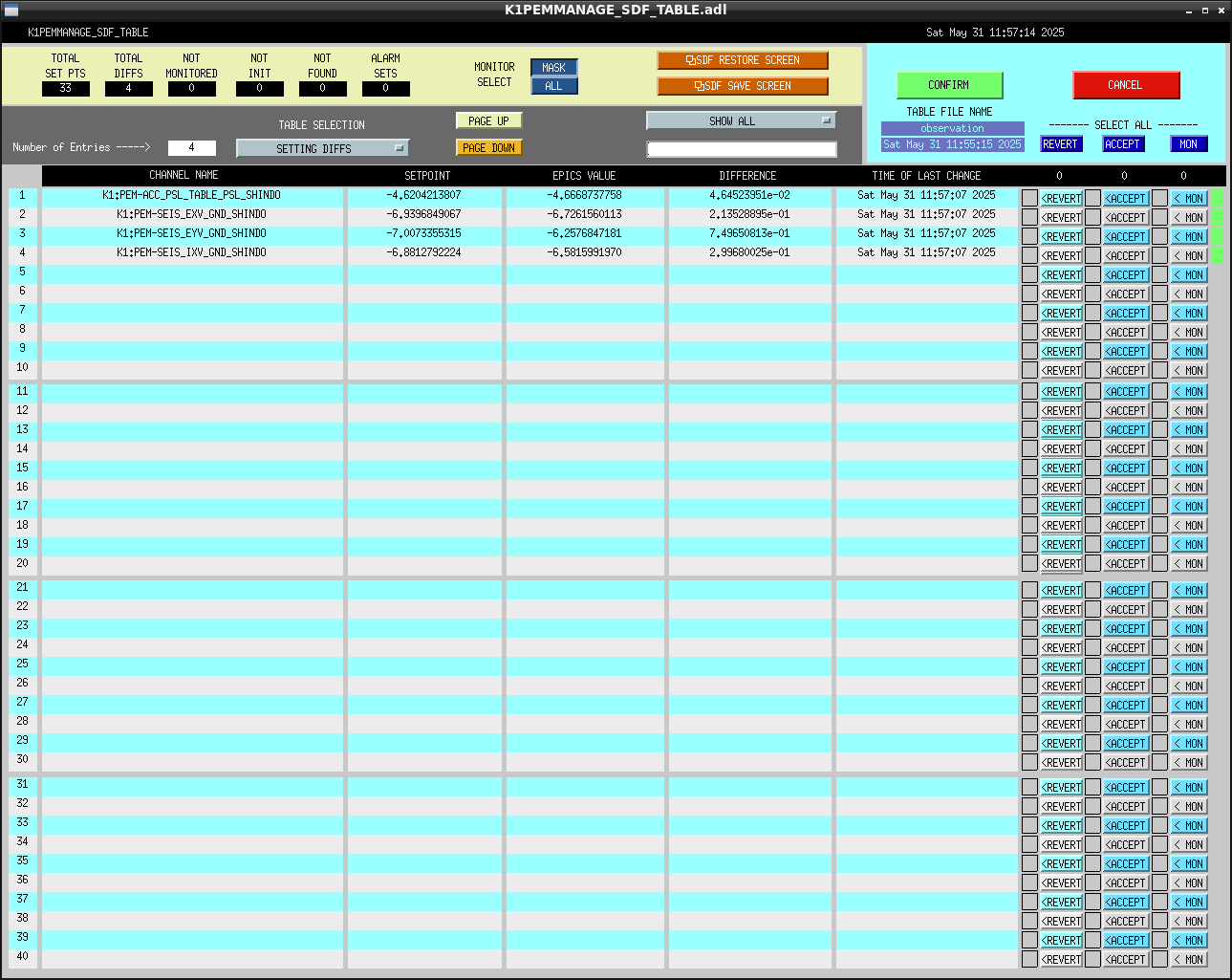

Fig.1.
in the model of the k1pemmanage, they monitored the shindo channels.
But those values changed during observation, so I removed from monitor channel.

I also changed confirmed the change of the channel status by the current work of the klog33950 and so on

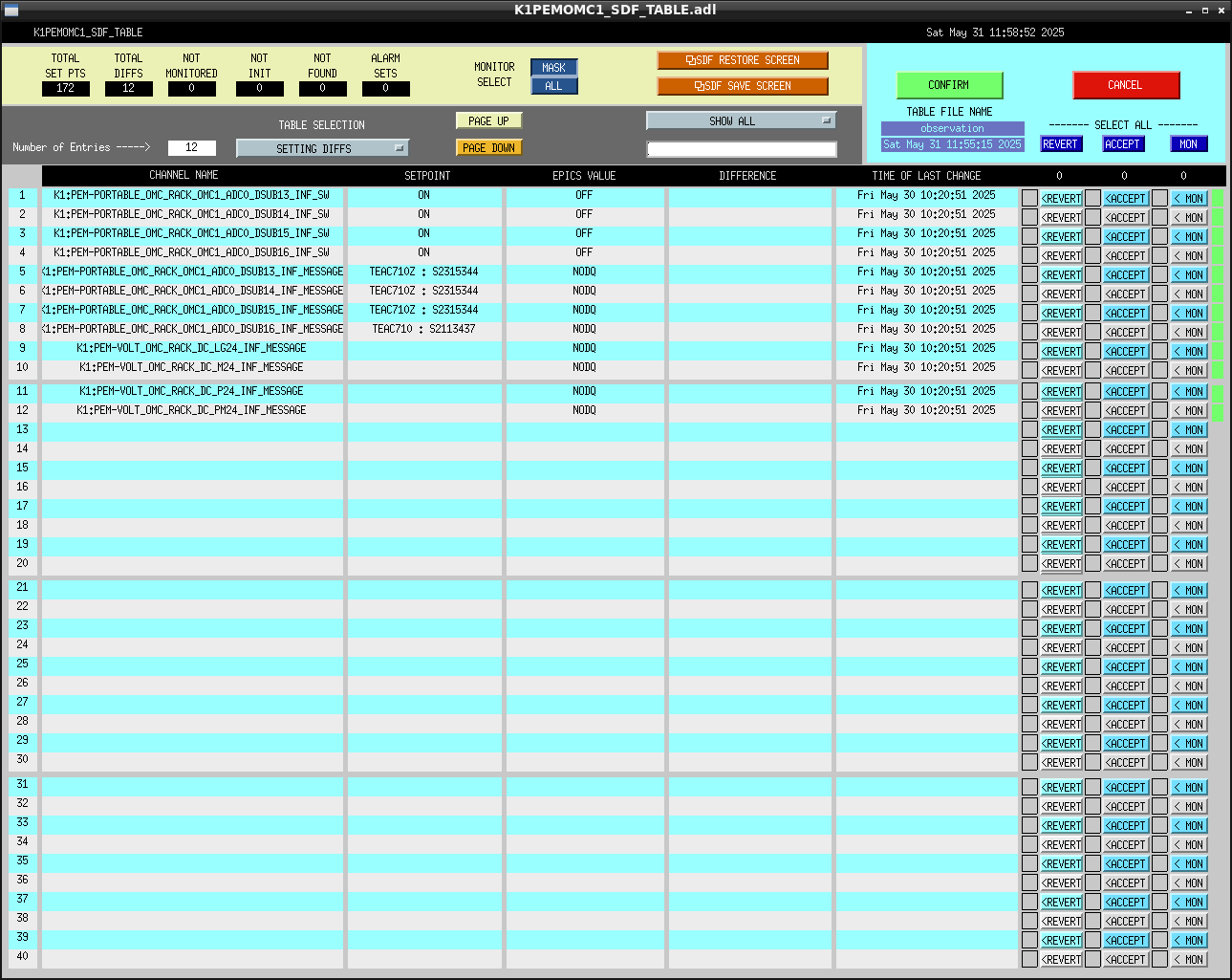

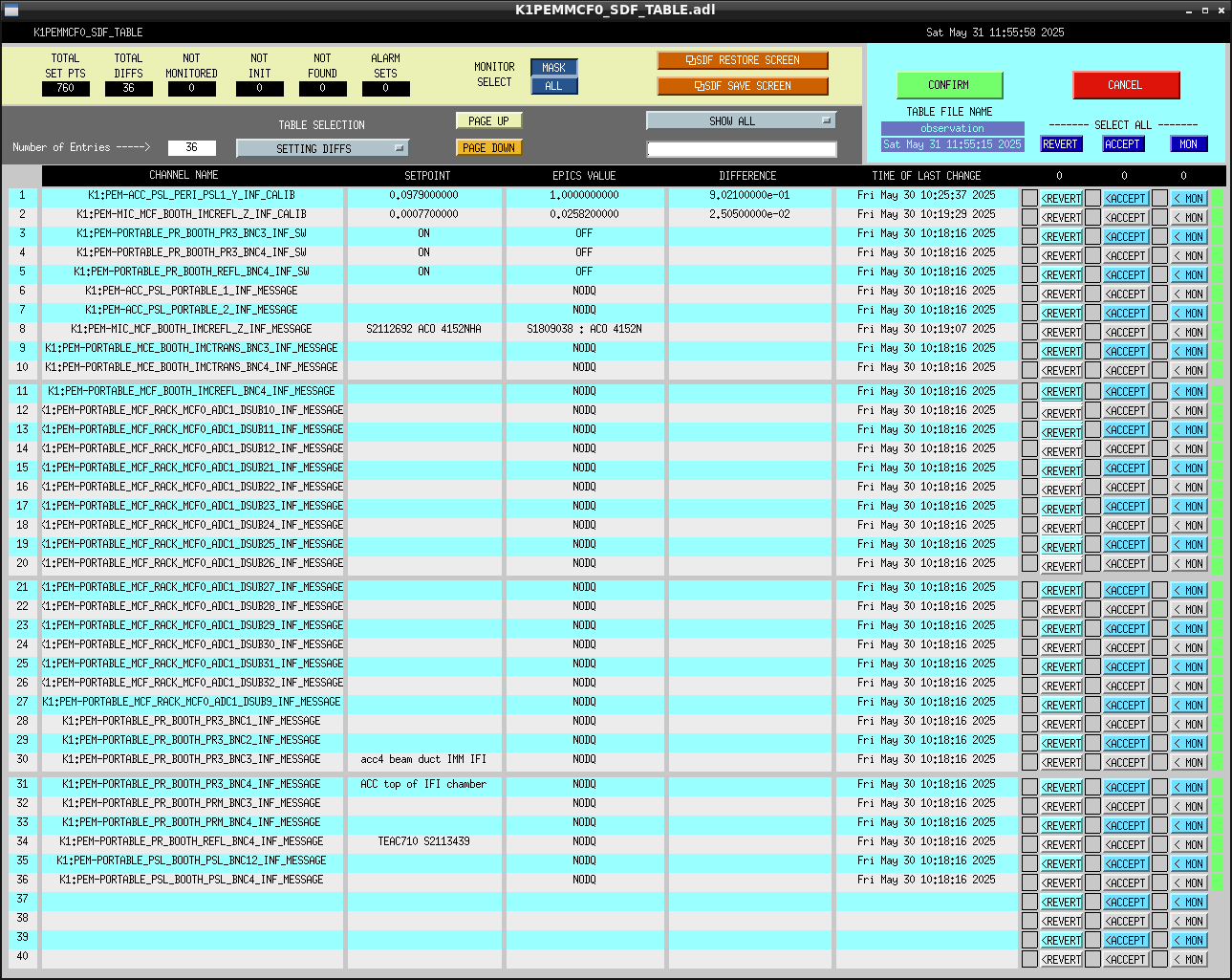

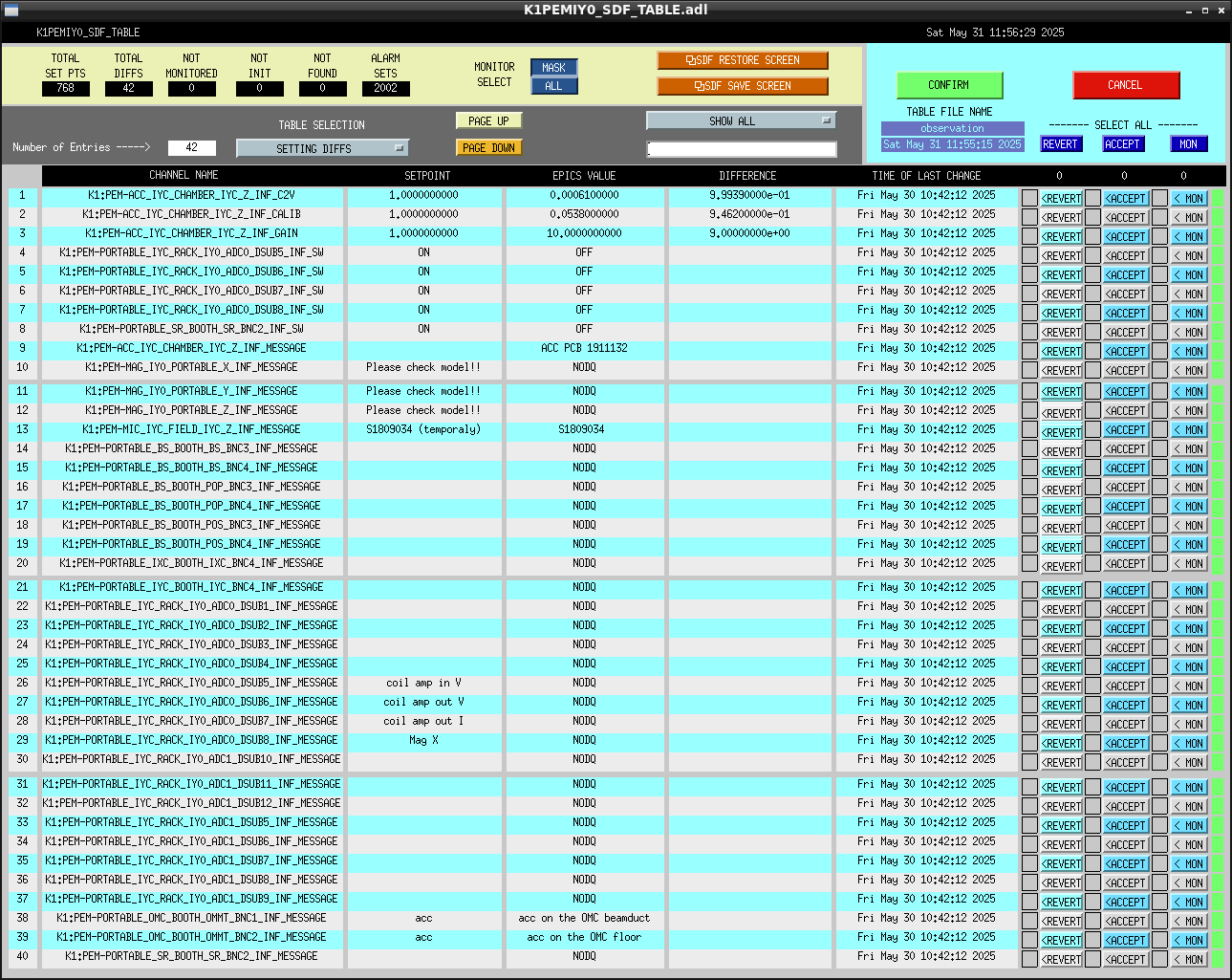

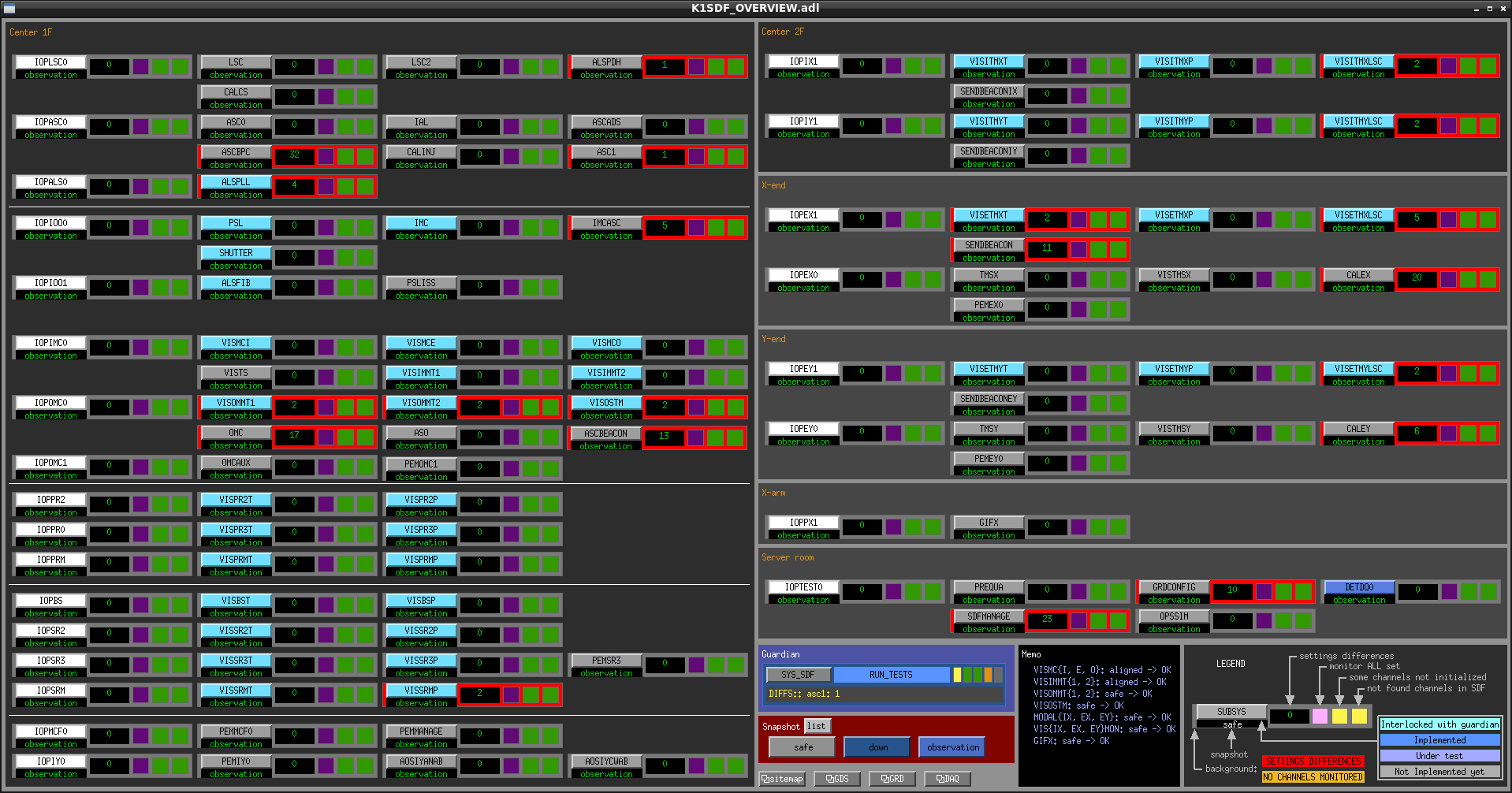

Fig.2. - Fig.6. showed the SDF before accept
Images attached to this report
