MIF (General)
takafumi.ushiba - 15:37 Tuesday 29 April 2025 (33595) Print this report
OBSERVATION state with OMC dither CLK of 30000 cnts

I kept OBSERVATION state with OMC dither CLK of 30000 cnts to obtain better SNR OMC length residual motion signals.
Start time: 2025-04-29 05:30 UTC
Stop time: 2025-04-29 06:30 UTC

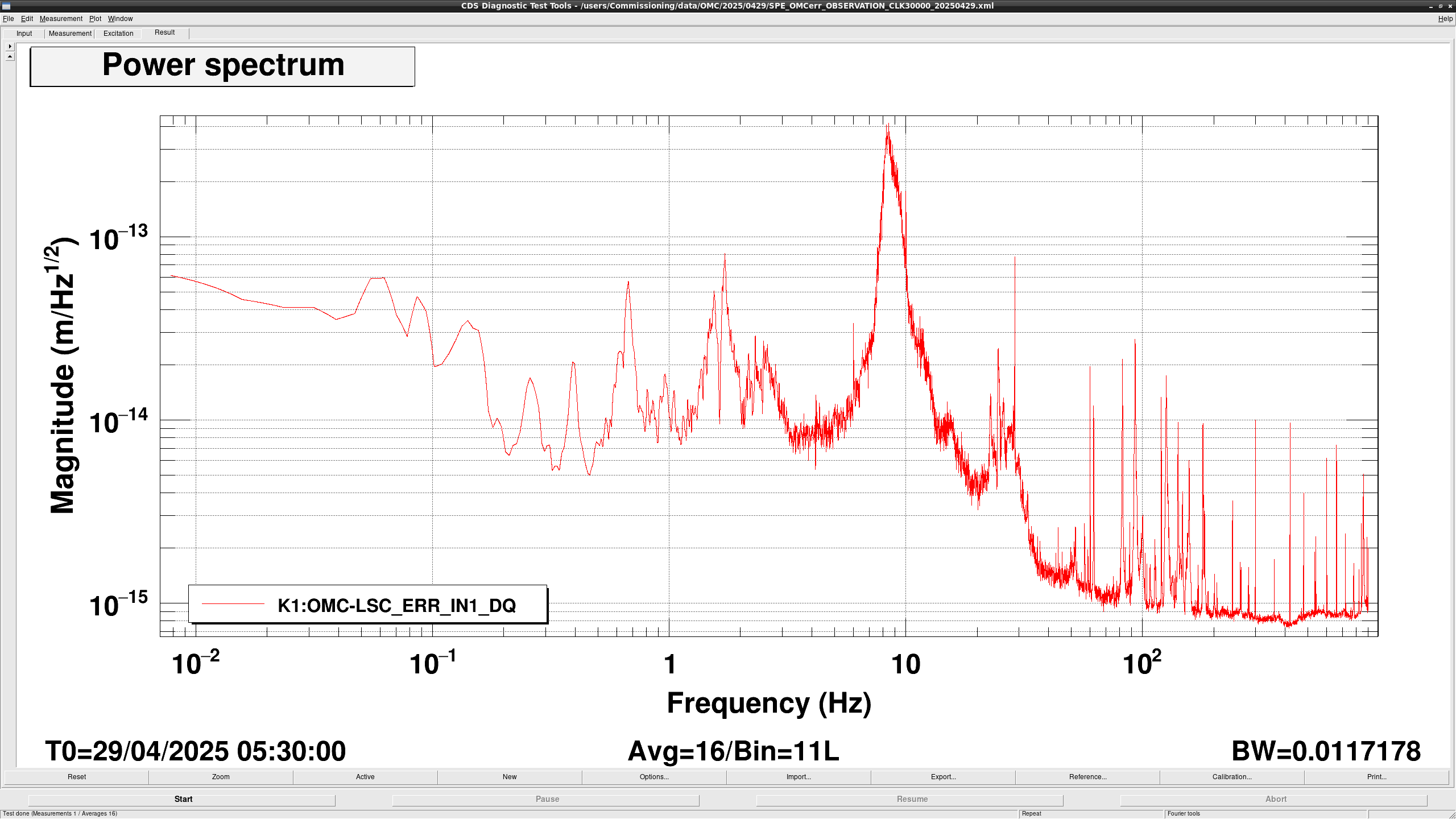

Figure 1 shows an example of spectrum of OMC error signals.
Calibration factor of 2e-11 m/cnt was used for the calibration as reported in klog33591.

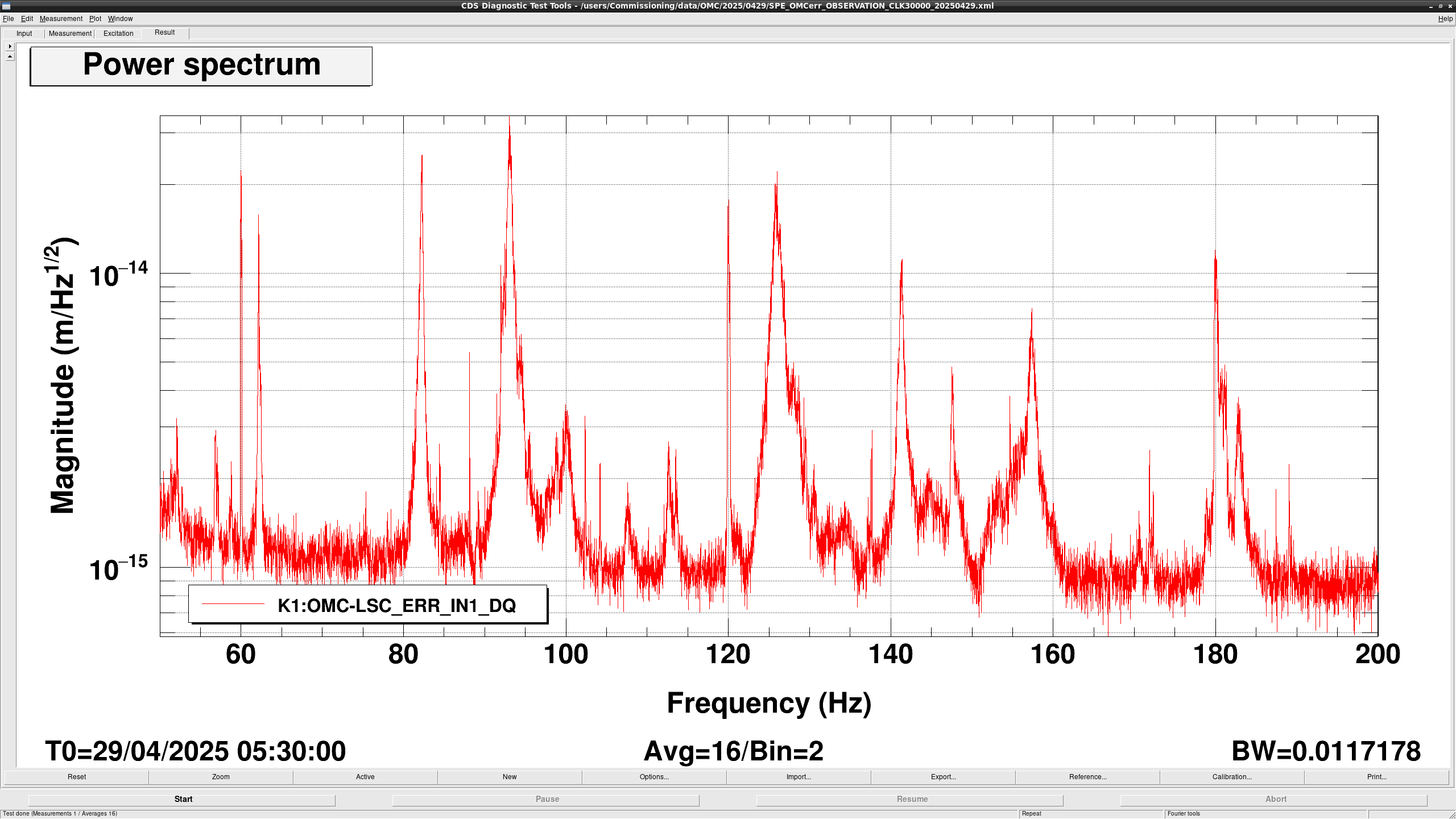

Figure 2 shows the same spectrum with narrower frequency band (from 50Hz to 200Hz).
Though 100Hz large coupling from GND shaker to OMC length was reported (klog33586), 100Hz peak is much smaller than the others, so 100Hz peak would not be problematic at this moment.

Images attached to this report
Comments to this report:
takahiro.yamamoto - 9:27 Wednesday 30 April 2025 (33605) Print this report
30000cnt@5kHz is saturated due to the digital AI process for converting from 32kHz to 64kHz.
(See also details in klog#32969)

So it might be better to use 23983ct or smaller.
