Analysis for

PEM injection using Saker #4 IMM shaker
2025/04/17 9:23:00 - 09:33:00
Excitation : K1:PEM-EXCITATION_MCF0_RACK_12_EXC
100 - 150 Hz , 1Hz resolution, 10 s in each measurement, 100 cnt

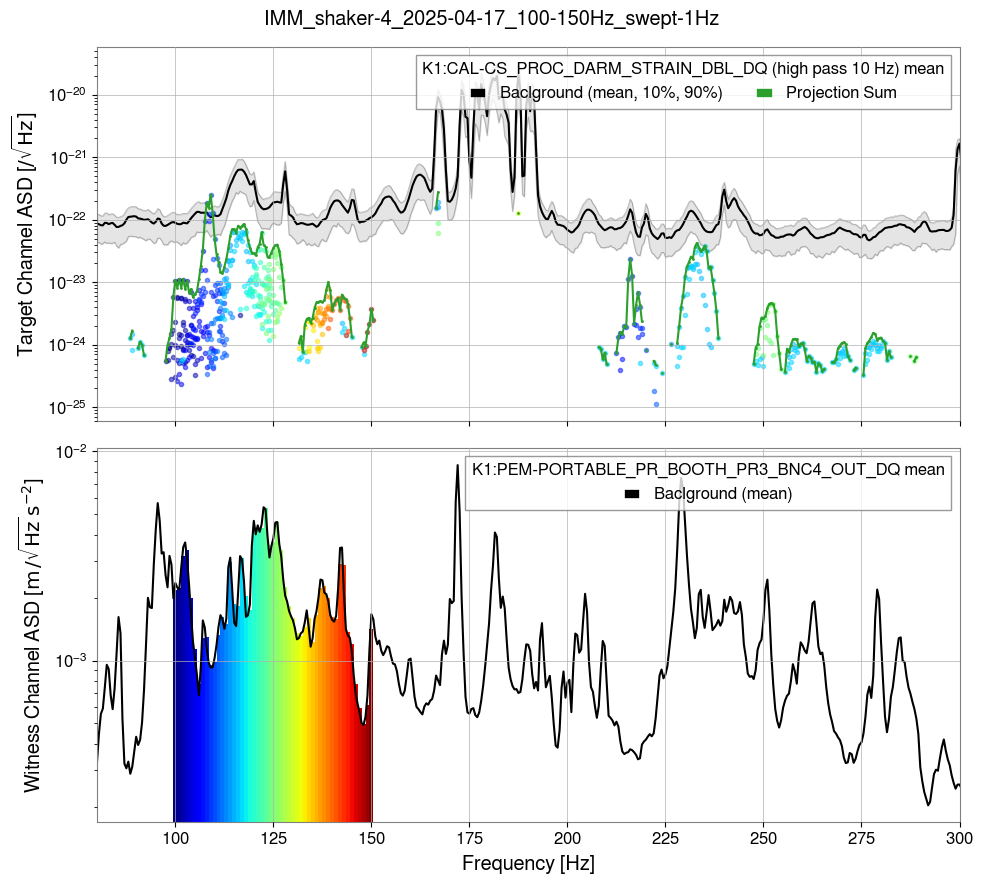

Fig.5. showed the result

The projected noise spectrum shape around 116 Hz is similar to the current sensitivity, but its amplitude is smaller.
