Analysis for

PEM injection using Saker #3 IMM shaker
2025/04/17 5:20:00 - 05:55:00
Excitation : K1:PEM-EXCITATION_MCF0_RACK_11_EXC
50 - 900 Hz , 5Hz resolution, 10 s in each measurement, 100 cnt

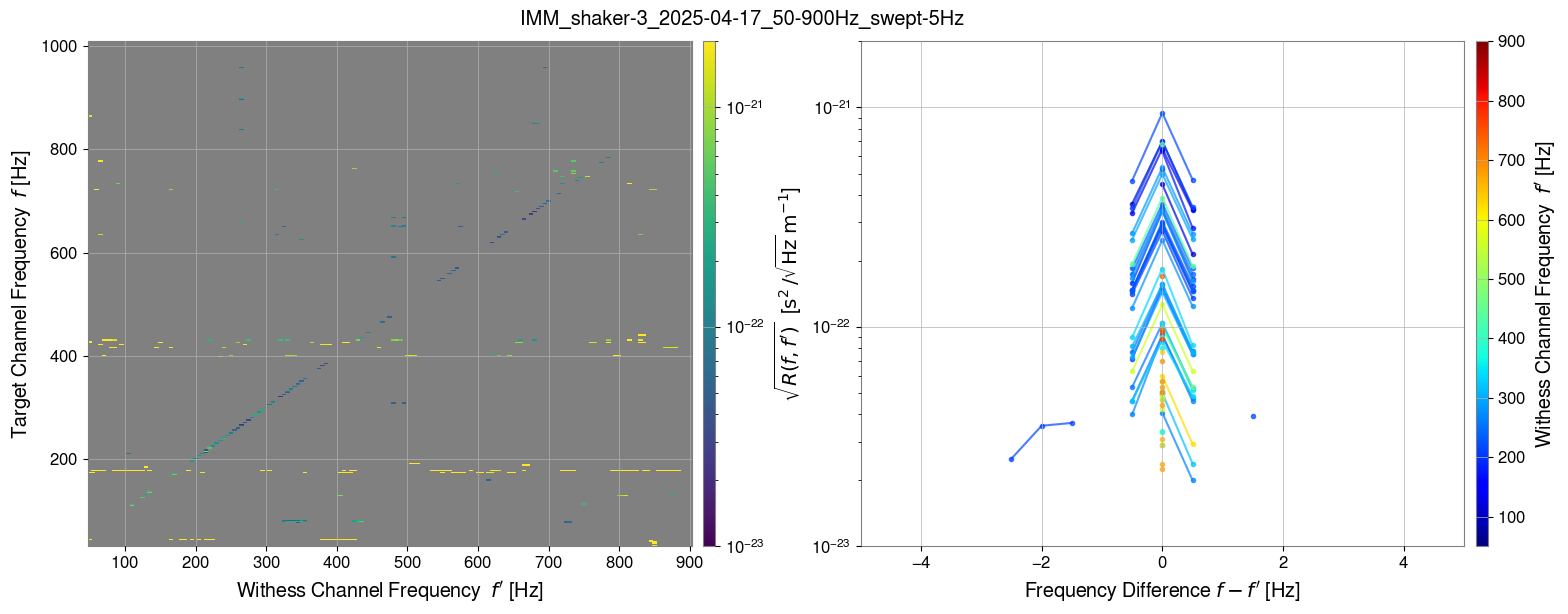

Fig.1. showed the results, there are several linear coupling around 300 Hz, but not so large.

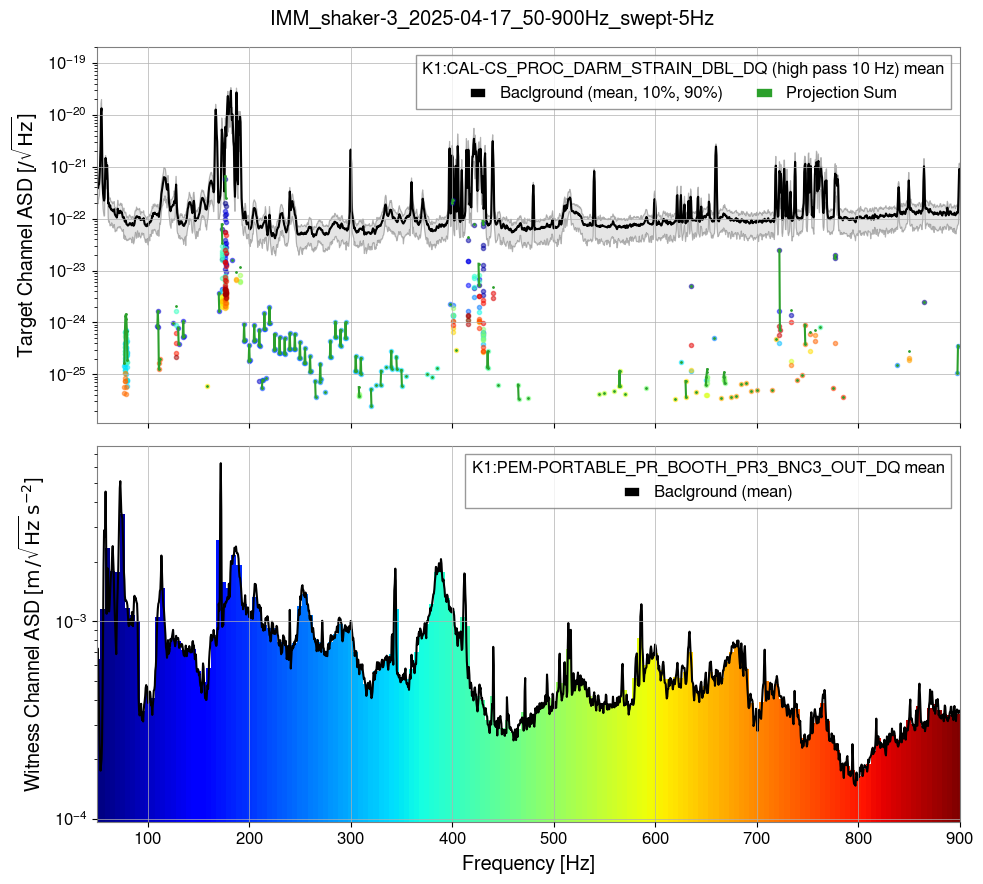

The projection result is very small.
