takafumi.ushiba - 17:41 Wednesday 26 February 2025 (32807) Print this report
Health check of OMMT1

Previous result is in klog31800.

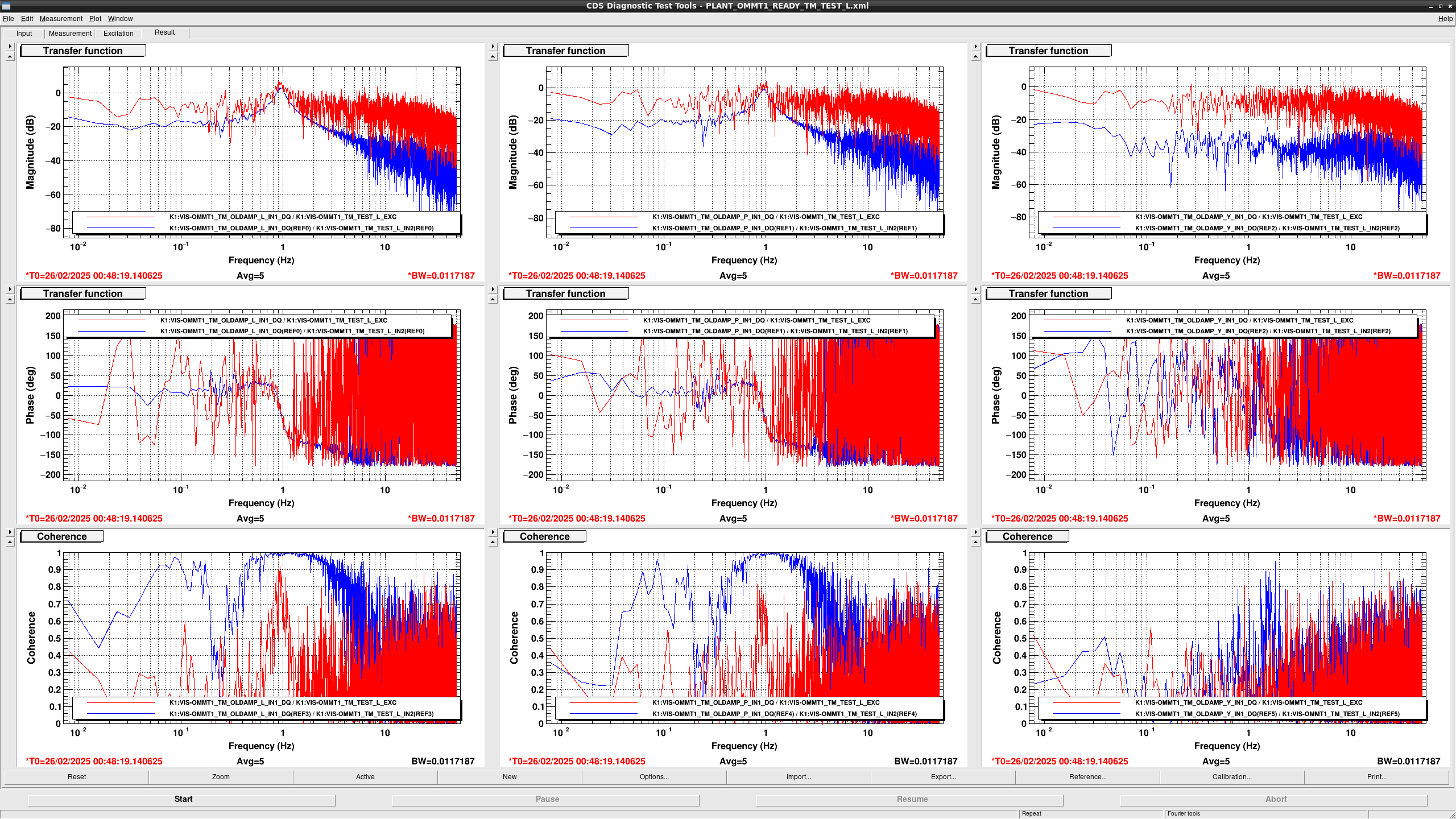

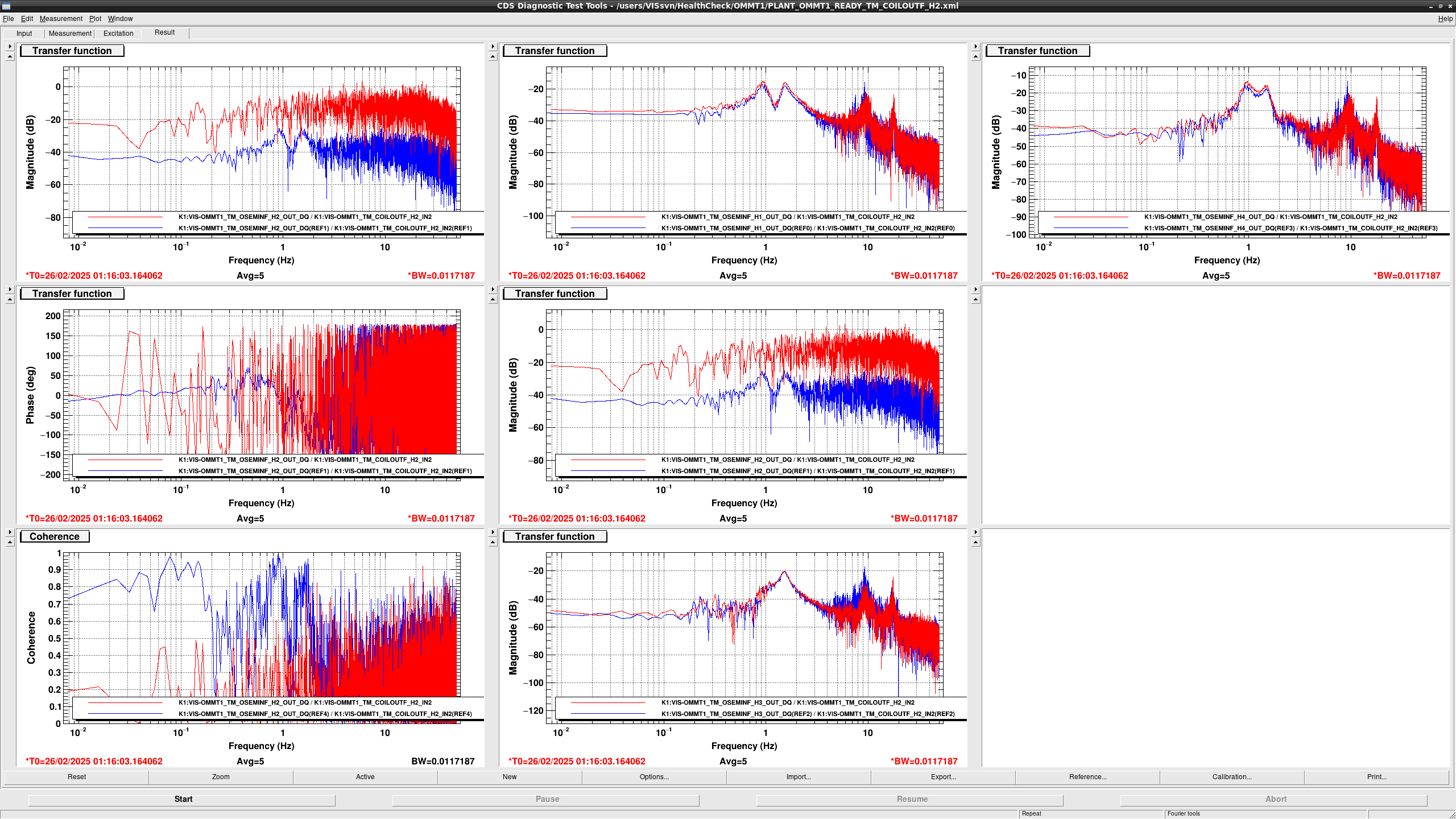

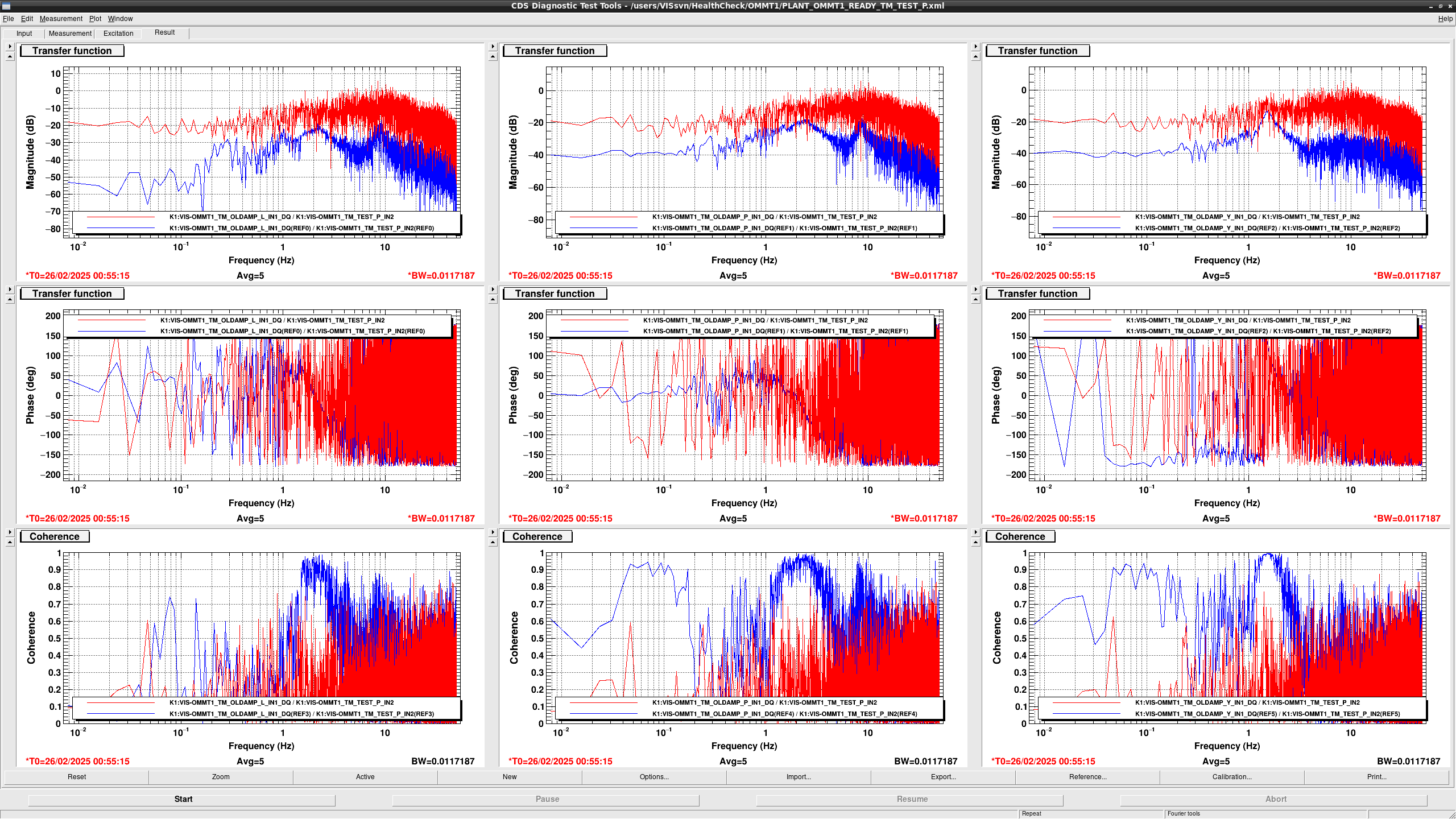

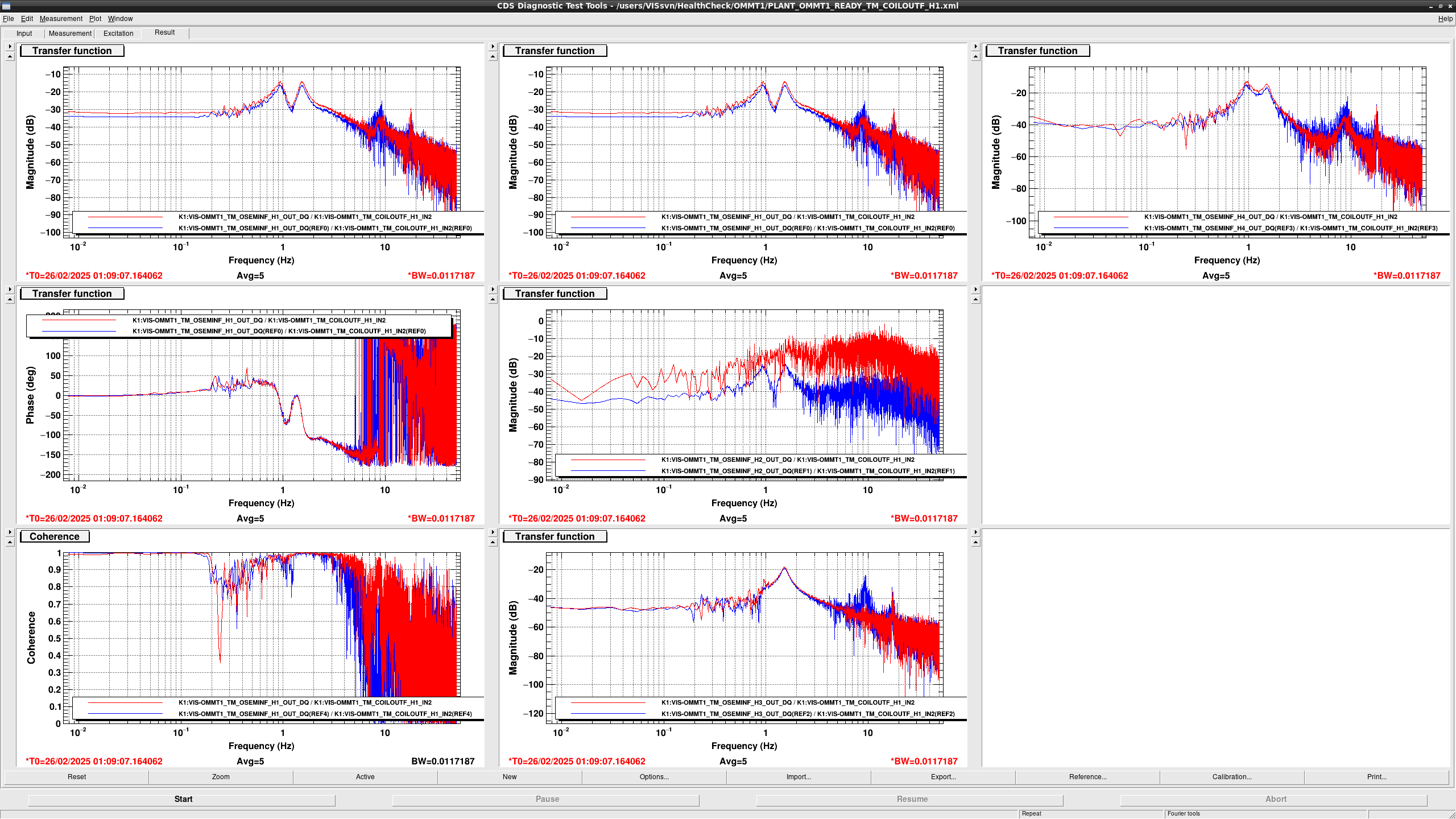

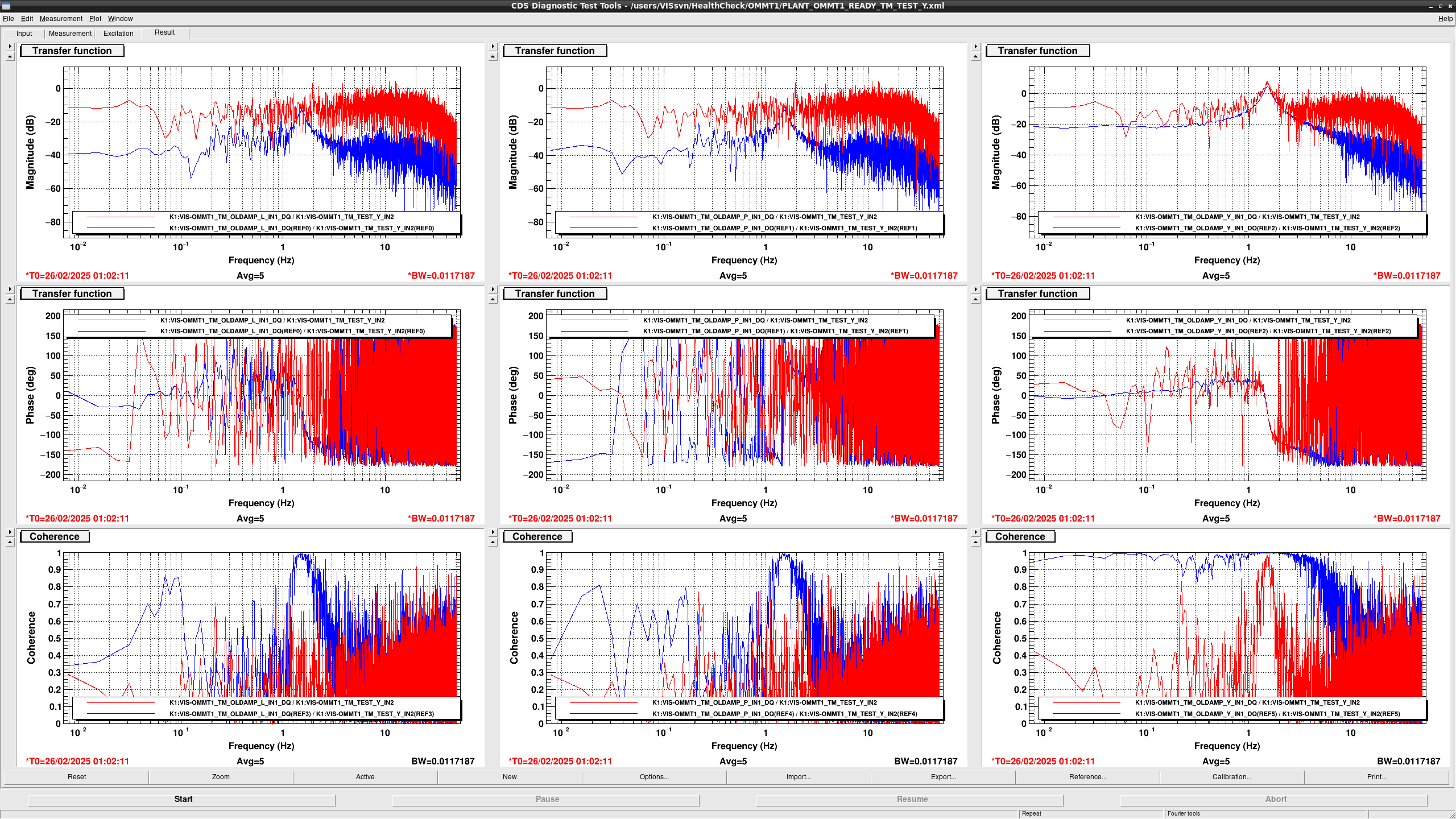

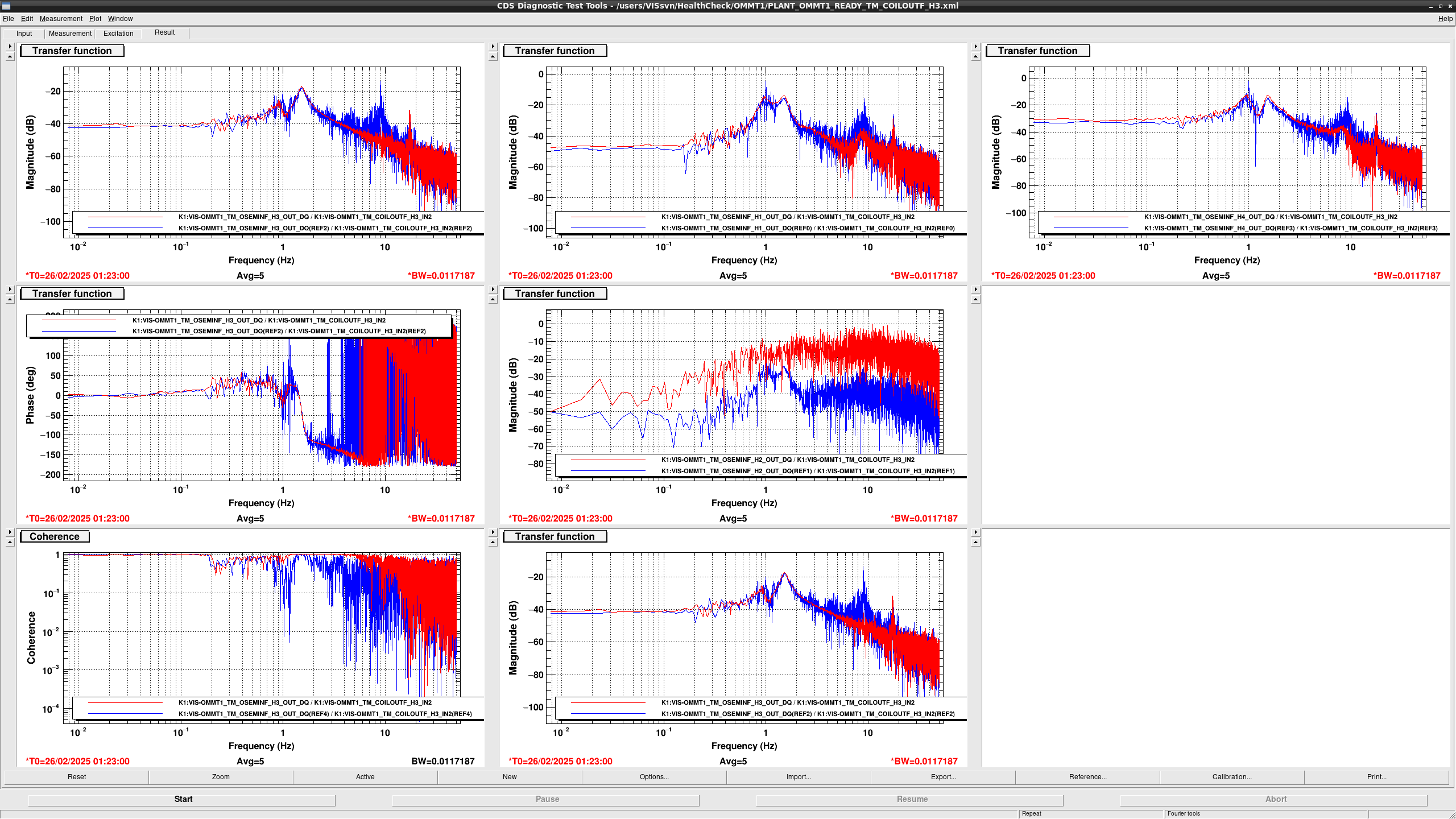

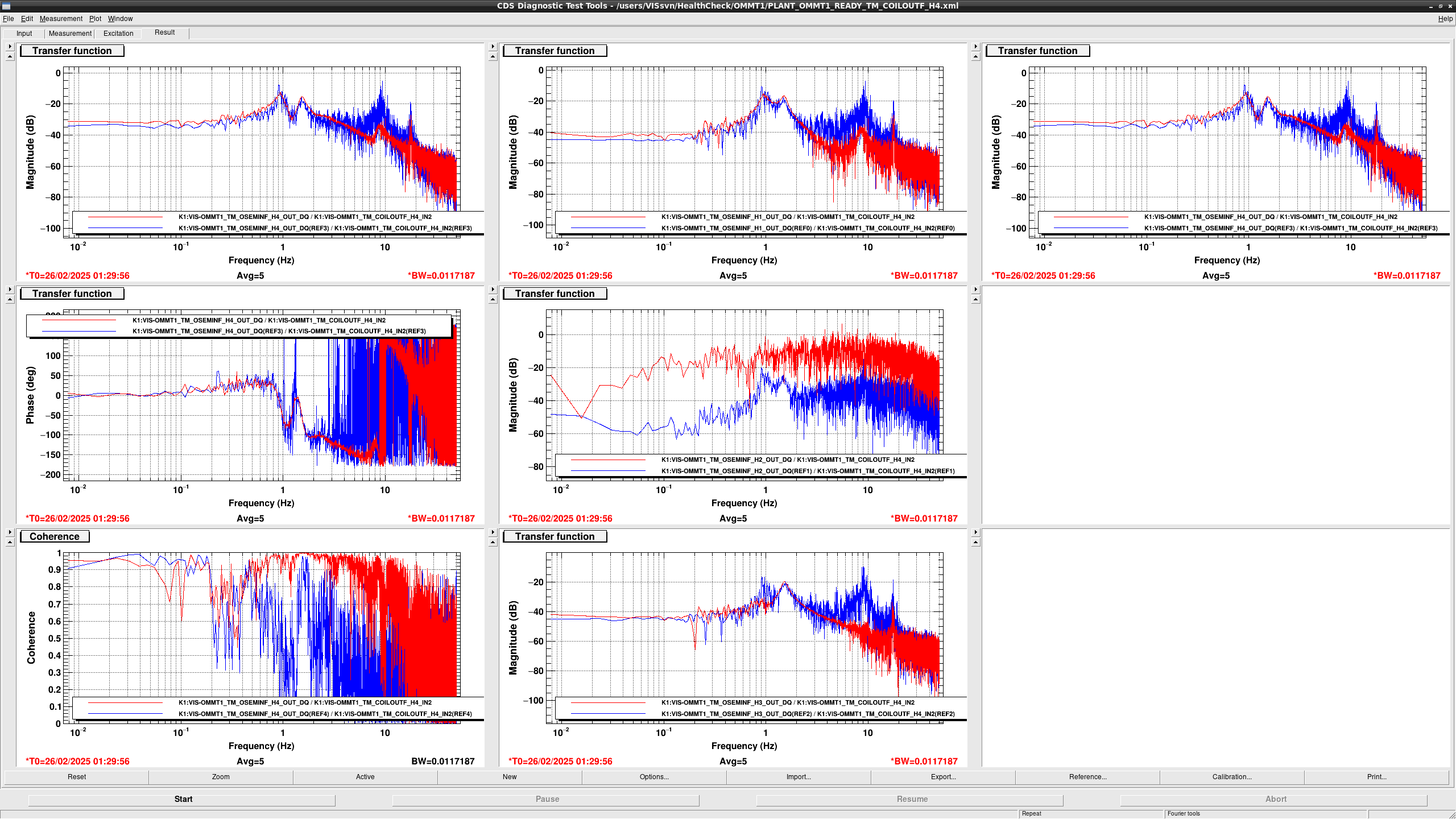

Figure 1-7 show the results.
Since H2 OSEM has large glitches (klog31659), sensing of the OMMT1 motion is bad.
According to the TF from each actuator to each OSEM, actuator seems to work well.

Previous time, we acceptecd this glitch, so I hope we can accept this issue.

Images attached to this report
