MIF (General)
takahiro.yamamoto - 17:54 Saturday 23 November 2024 (31744) Print this report
Re-tuning of PLL temperature bias
When IMC lock was lost around 13:23, temperature feedback to NPRO laser had large jump.
Temperature feedback and guardian state transition of IMC and PLLs around this large jump are shown in Fig.1.
After this jump, PLL repeatedly failed with GRUB_RESONANCE.

So I re-tuned PLL temperature bias around 17:00 in order to recover PLL lock.

The reason why temperature feedback of IMC has so large jump hasn't investigated yet.
Images attached to this report
Comments to this report:
takafumi.ushiba - 13:50 Sunday 24 November 2024 (31745) Print this report

Is it similar behaviour reported in klog30314?
If so, it is well known issue to be solved for long-term stable operation.

takahiro.yamamoto - 15:06 Sunday 24 November 2024 (31747) Print this report

> Is it similar behaviour reported in klog30314?
Yes to the fact that PLL lock by guardian is prevented by the jump of IMC temperature feedback.

No to the reason why IMC temperature feedback jumped.
In the previous case, IMC guardian executed "clear history" because the feedback output became lager than software threshold. As a result, IMC temperature feedback jumped to 0ct. In this time temperature feedback jumped from ~-5000ct to ~-6000ct. So it's not due to "clear history".

In any case, PLL guardian must become to find a proper temperature bias on its own.

takahiro.yamamoto - 21:58 Monday 25 November 2024 (31762) Print this report

Because Ushiba-kun pointed out that channel of IMC temp feedback is difference between klog#30314 and klog#31747, I checked carefully again.

I had seen the feedback signal after adding the offset.
On the other hand, monitor point before adding the offset was shown in klog#30314.

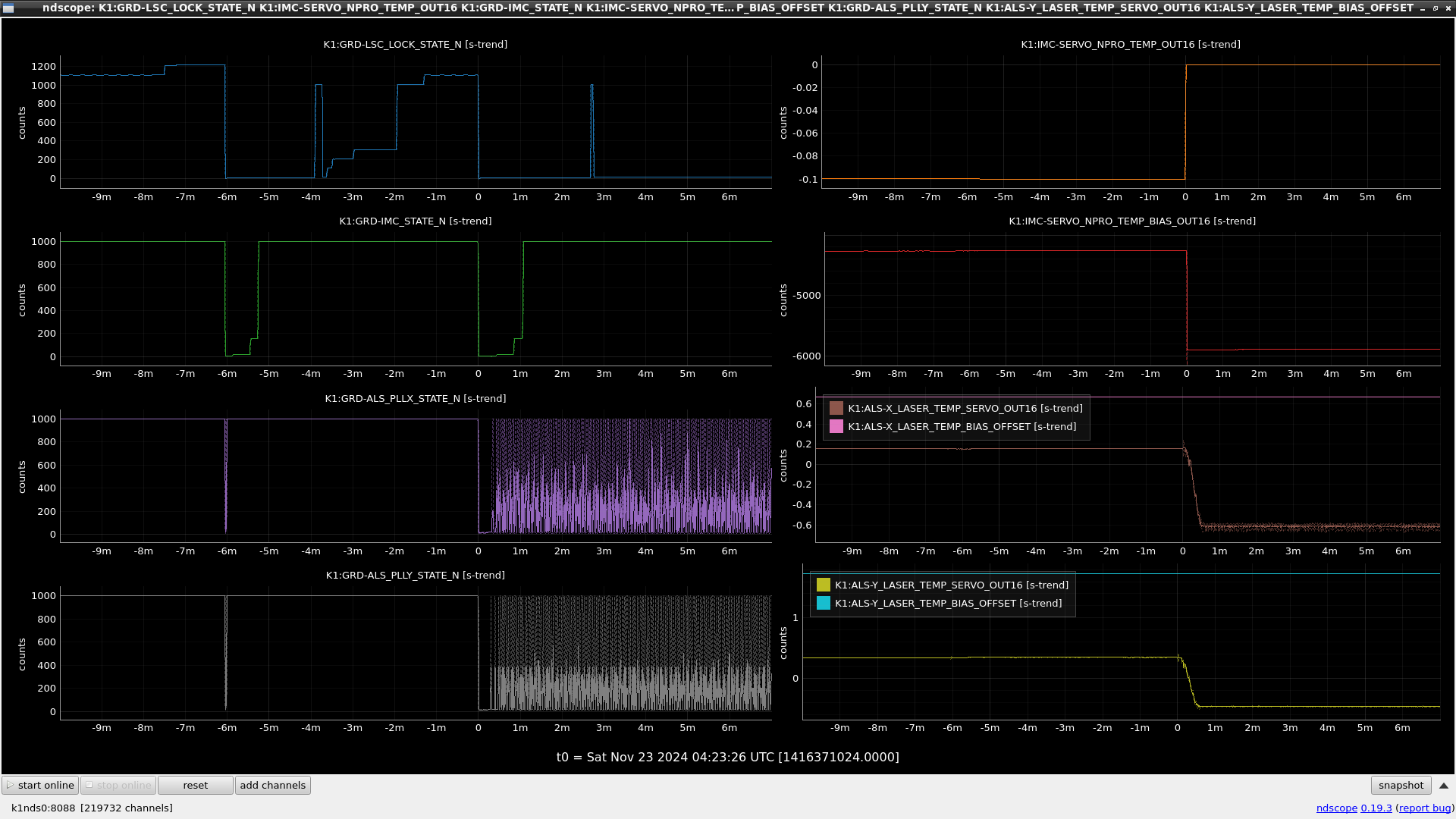

So I made a plot with the monitor point before adding the offset and then, I can confirm that feedback signal was cleared to 0 (see also right top panel in the attachment).

This fact means that a cause of jump in IMC feedback was also a same reason as the past case.


Images attached to this comment
