[Takase, Hirose]

In klog29466, it was found that htePZTs for REFLWFS1 and WFS2 placed on the shefe of REFL optical table cover. We moved PZTs for REFL WFS1 and WFS2 to on the REFL optical table cover.

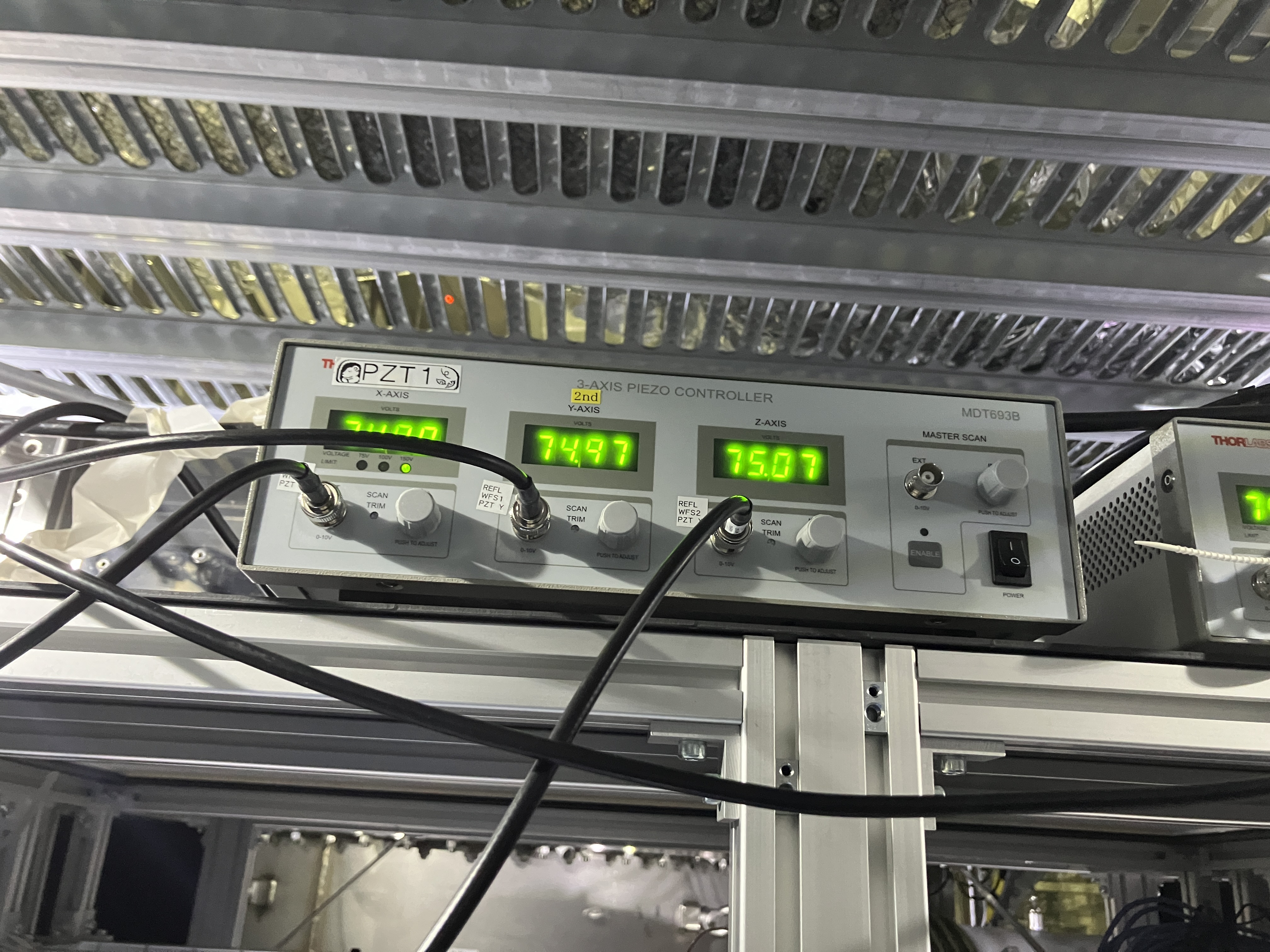

(Fig1: From left to right PZT1 yaw, PZT1 pit, PZT2 yaw.

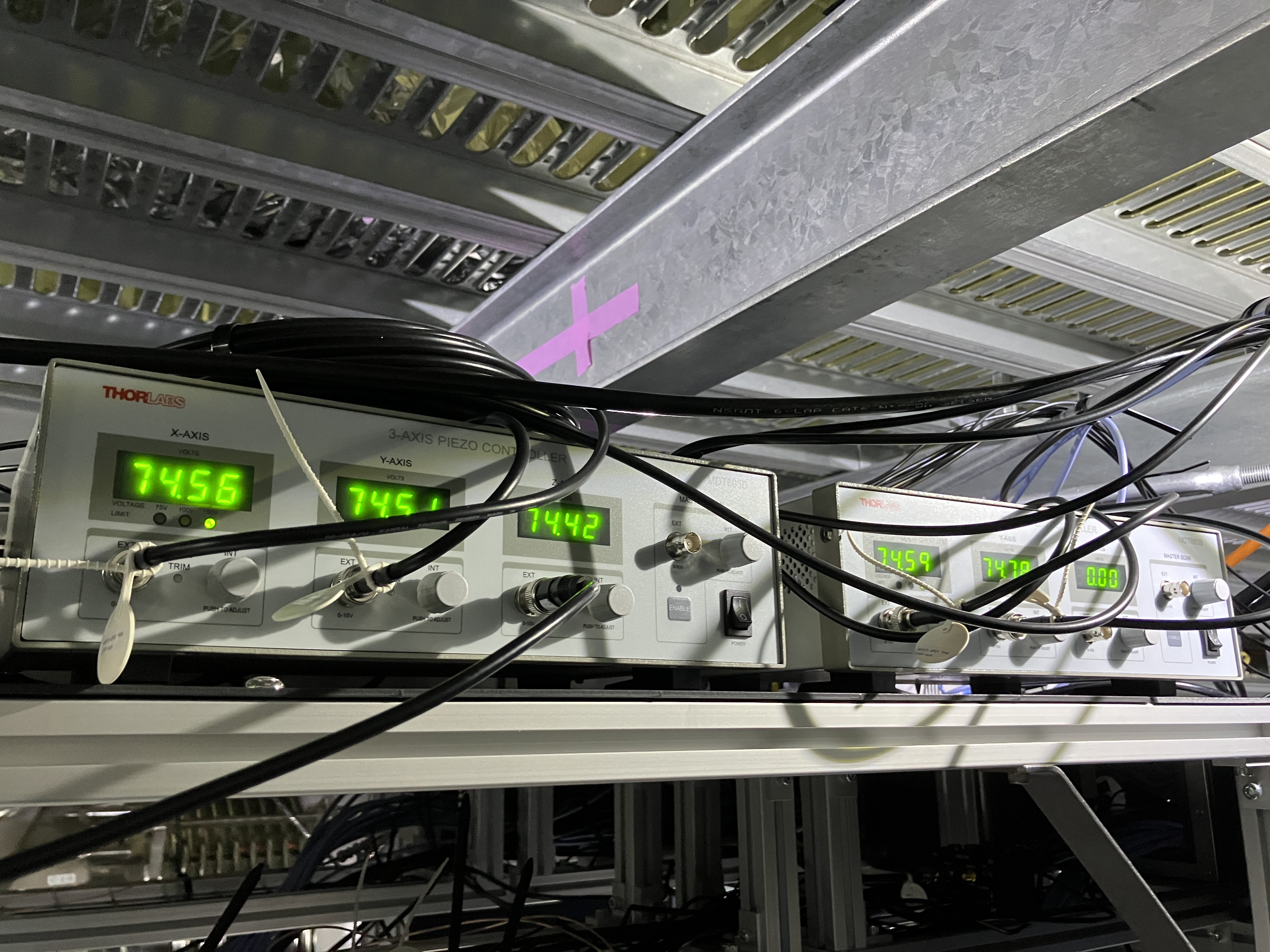

Fig2: From left to right PZT4 yaw, PZT4 pit, PZT2 pit, PZT3 yaw, PZT3 pit.)
I connected the PZTs and mounts for REFLWFS1-4.

They also aligned roughly to the QPD with Xarm locked. In WFS1 and 2, we confirmed on the beam spot that the PZT was moving properly for each degree of freedom.(Fig3)

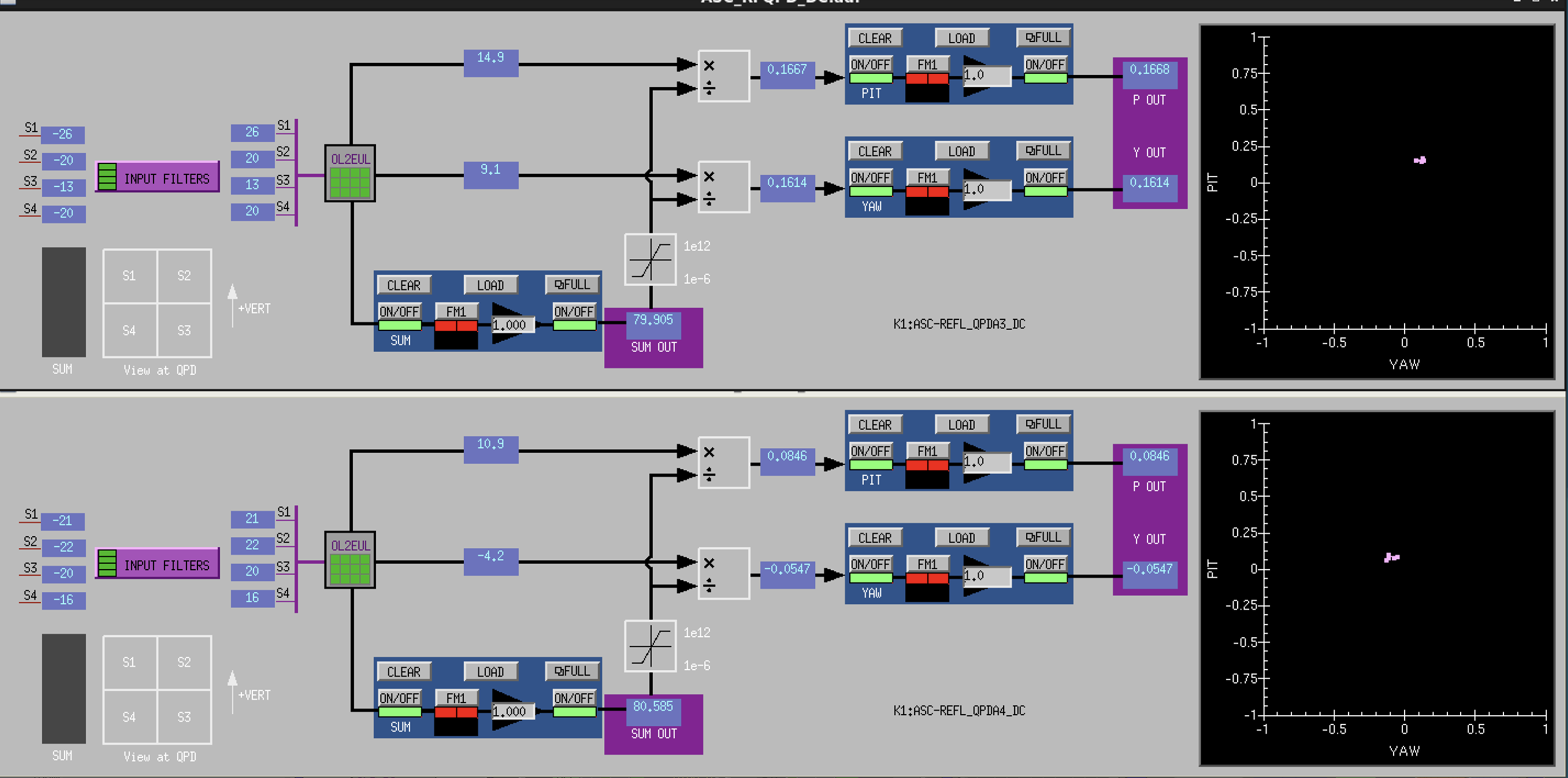

In WFS3 and 4, it was confirmed on the beam spot that PZT and pico were moving properly for each degree of freedom.(Fig4) Mission of klog29839 was completed.
