VAC (MCF)
nobuhiro.kimura - 13:54 Monday 19 October 2026 (37689) Print this report
Closed the gate valve between MCF and IFI

[Kimura and Yasui]

 At 1:20 p.m., the gate valve between the MCF and the IFI was closed, and the gate valve interlock was disabled.

The pressure in the MCF prior to closing the gate valve was 2.8 × 10⁻⁵ Pa.

After closing the gate valve, we closed the gate valve between the vacuum duct and the #1 vacuum pump unit, and turned off the #1 ion pump.

Images attached to this report
Comments to this report:
takashi.uchiyama - 16:45 Monday 19 October 2026 (37690) Print this report
We started venting the IMC at 14:50.
We stopped the venting at 16:12. The vacuum pressure reached 0.12 atm.
takashi.uchiyama - 16:50 Monday 19 October 2026 (37693) Print this report
2026/10/19

Uchiyama

A horizontal line to indicate the mounting direction was drawn on the 400-diameter flange with reference to the laser leveler beam. Also, I put a sticker that marked "Up" in the upward direction so that I could see the up and down direction.
Images attached to this comment
takashi.uchiyama - 12:21 Tuesday 20 October 2026 (37701) Print this report
2026/10/20

Yasui, Kimura, Uchiyama

We resumed the venting at 8:50 and completed it at 12:15.
We spent 4.5 air cylinders.
takashi.uchiyama - 16:05 Tuesday 20 October 2026 (37707) Print this report
2026/10/20

mTakahashi, Sawada, Yasui, Kimura, Uchiyama

We removed the bellows duct and dia. 400 flange from the MCF chamber.
Since there is a high-quality window on the dia. 400 flange, we protected both sides of the window with plastic covers and so on.
Images attached to this comment
takashi.uchiyama - 12:52 Monday 26 October 2026 (37730) Print this report
2016/10/26

Nakajima(Mirapro), Kimura, Yasui, Sawada, Takahashi, Uchiyama

We attached the 400-diameter flange. The flange’s rotation was adjusted so that the previously marked line aligns with the laser leveler’s line.
Images attached to this comment
takashi.uchiyama - 15:11 Monday 26 October 2026 (37735) Print this report
2026/10/26

Nakajima (Mirapro), Kimura, Yasui, Sawada, Takahashi, Uchiyama

We temporarily connected the bellows duct to MCE.
Images attached to this comment
takashi.uchiyama - 11:00 Tuesday 27 October 2026 (37744) Print this report
2026/10/27

Kimura, Yasui, Sawada, Takahashi, Uchiyama

We tightened the dia. 400 flange and the bellows duct (Photo 2) at MCE. The torques we applied them as follows,

Dia. 400 flange: 20 -> 40 -> 40 Nm (Photo 1)
Bellows duct MCE side: 20 -> 40 -> 60 -> 70 Nm (Photo 3)
Bellows duct MCF side: 20 -> 40 -> 60 -> 60 Nm (Photo 4)
Images attached to this comment
takashi.uchiyama - 11:01 Tuesday 27 October 2026 (37745) Print this report
2026/10/27

We start pumping down IMC at 10:40 on 27 October.
takashi.uchiyama - 14:17 Wednesday 28 October 2026 (37759) Print this report
2026/10/28

Uchiyama

I started TMP at 9 AM on 28 October.
takashi.uchiyama - 8:14 Friday 30 October 2026 (37770) Print this report
2026/10/30

Fig. 1 shows the current vacuum pressure level.
Fig. 2 shows time trend of the vacuum pressure in IMC.

The current vacuum pressure level in IMC is 1.1E-4 Pa. The vacuum pressure is continuously decreasing.
Images attached to this comment
takashi.uchiyama - 11:17 Friday 30 October 2026 (37774) Print this report
2026/10/30

Yasui, Uchiyama

We opened GVifi from 10:00 to 10:26 for the IMCL measurement. Since the vacuum pressure at IFI was about 1E-4 Pa when GVifi was opened, we closed GVifi again to save the ion pump at IFI.
takashi.uchiyama - 15:47 Friday 30 October 2026 (37775) Print this report

I attached time tend of the vacuum pressure in IMC at 15:42 on 30 October.
Images attached to this comment
takaaki.yokozawa - 16:52 Friday 30 October 2026 (37778) Print this report

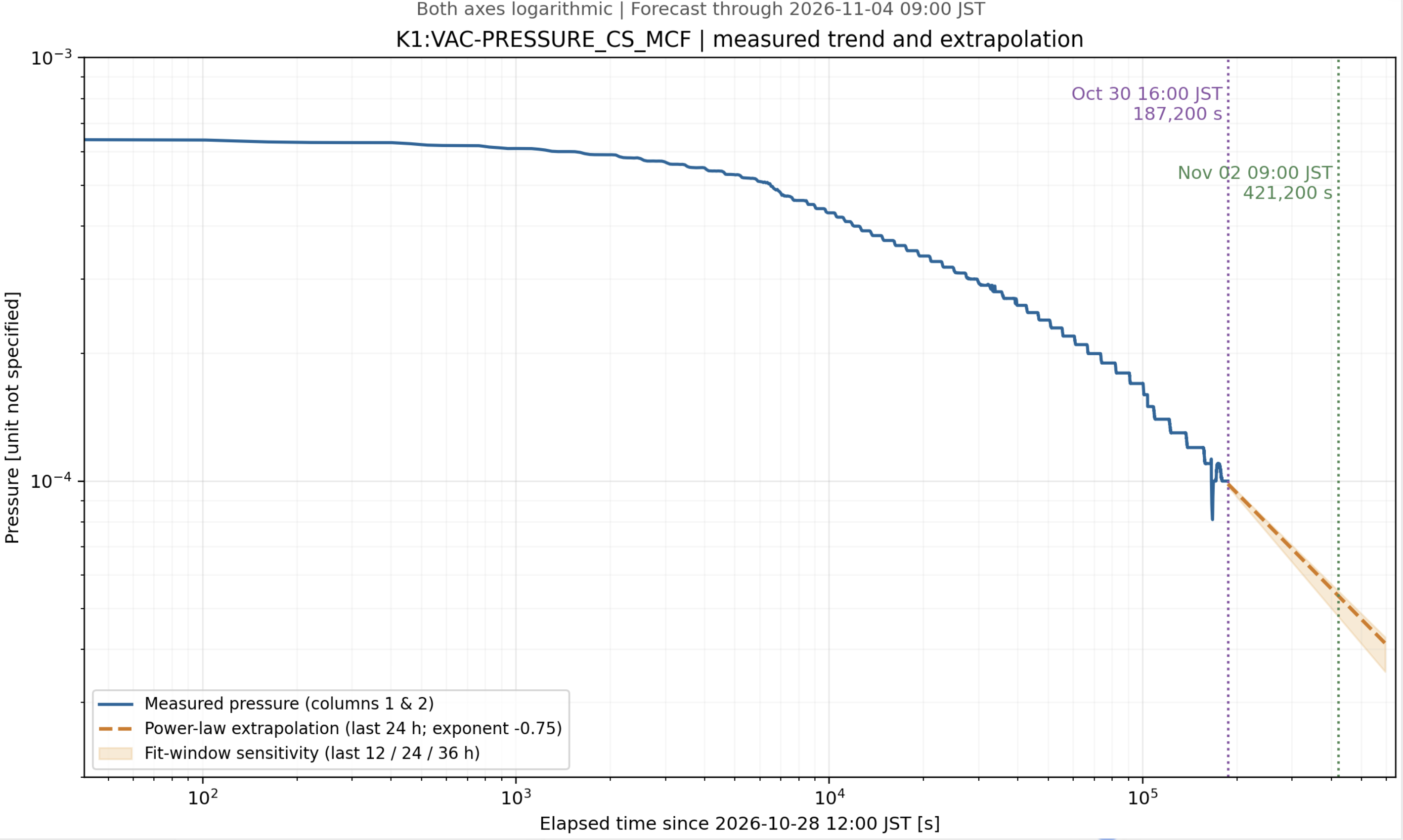

I generarted log-log plot for vacuum pressure and evaluated the expected pressure at the morning of 2nd Nov.
As Uchiyama-san forecasted, vacuum level would be 5e-5, I think
Images attached to this comment
takafumi.ushiba - 16:57 Friday 30 October 2026 (37777) Print this report

[Yamamoto, Ushiba]

We made log-log plot of MCF vacuum level (fig1).
Vacuum evacuation speed doesn't seem saturated and it will reach ~6e-5 Pa next Monday if the leak will limit the vacuum level until then.

Note:

Yamamoto-kun prepared the script to make log-log plot and anyone can use it from VAC_OVERVIEW medm (fig2).
To use the script, clock "Plots" at the bottom left of VAC_OVERVIEW and select  "Make log-log plot".
Then, GUI shown in fig3 is appeared, so selct start time, end time, and channels you want to make plot.

Images attached to this comment
