PEM (Center)
tatsuki.washimi - 7:57 Thursday 19 February 2026 (36393) Print this report
Test the Magneticfield Measurements for the Power Outage

I started to test the Magneticfield Measurements for the power outage

Images attached to this report
Comments to this report:
tatsuki.washimi - 13:43 Tuesday 24 February 2026 (36421) Print this report

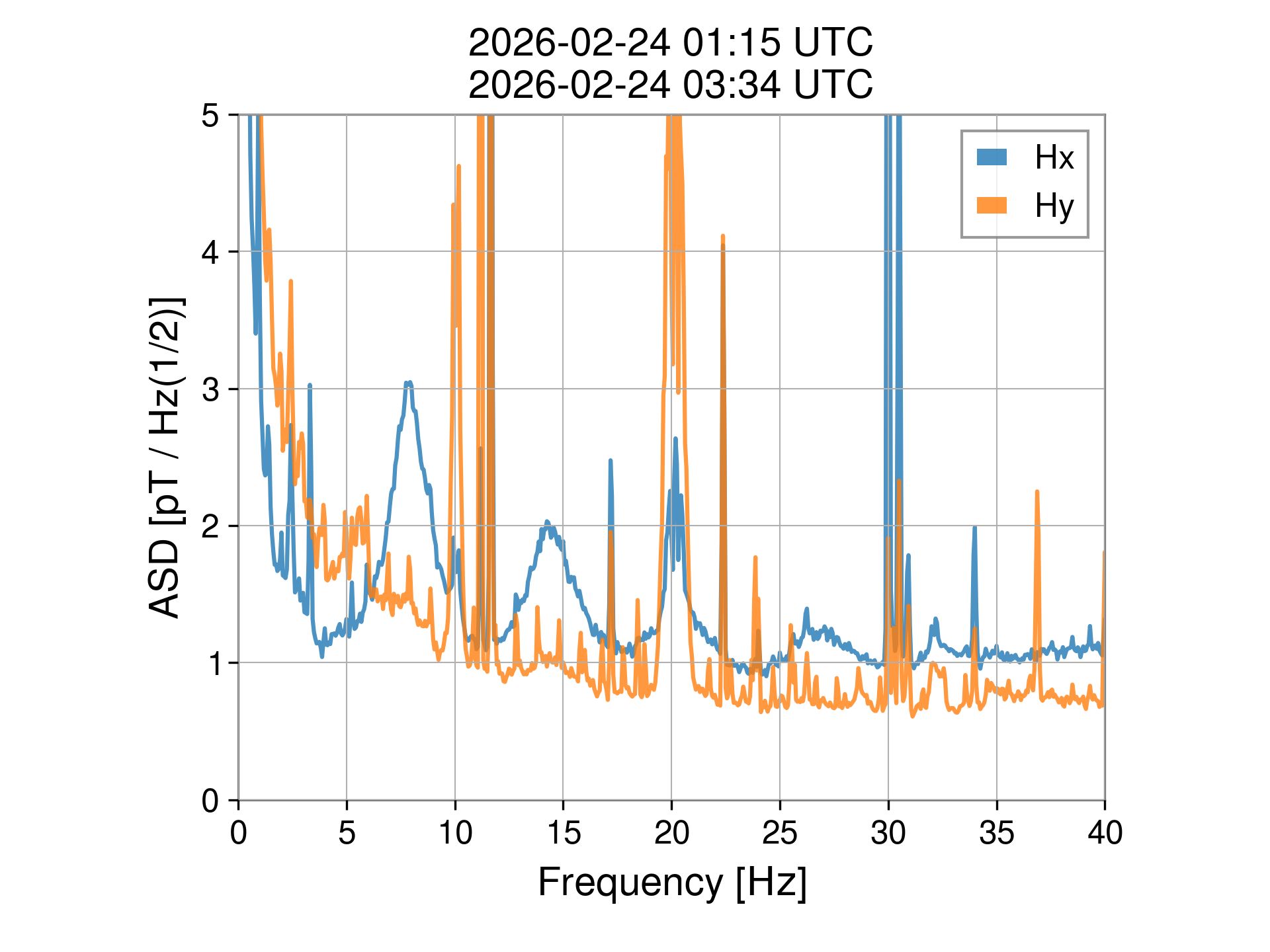

I checked the status of the Magnetic field measurements.

The directory of Feb.20 had been generated, but it was empty, somehow.
I started the job and confirmed the data is generated.

Images attached to this comment
tatsuki.washimi - 16:51 Wednesday 25 February 2026 (36440) Print this report

I checked the magnetic field data today. A 1/f noise is found in both X & Y direction, larger than tha outside.

I susupect a noise from the DAQ and the portable powersurpply, and moved them as far as possible.
The 1/f noise amplitude was not changed. So it may be an environmental one.

Images attached to this comment
