VAC (IX)

koji.nakagaki - 17:09 Monday 26 October 2026 (37736)

Online Monitoring of the Pressure Gauge Inside the IXC Booth

[Kimura, Yasui, Nakagaki]

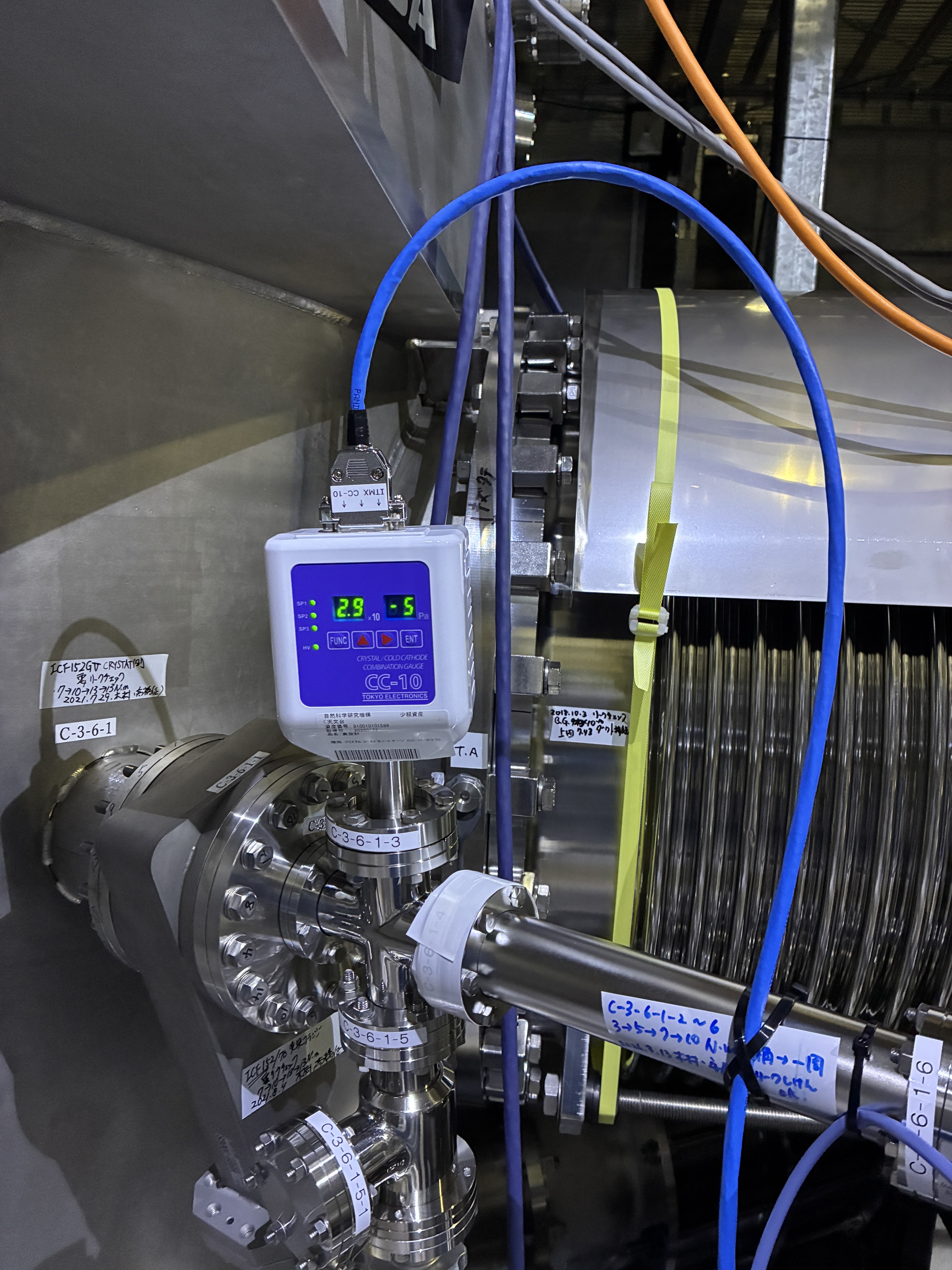

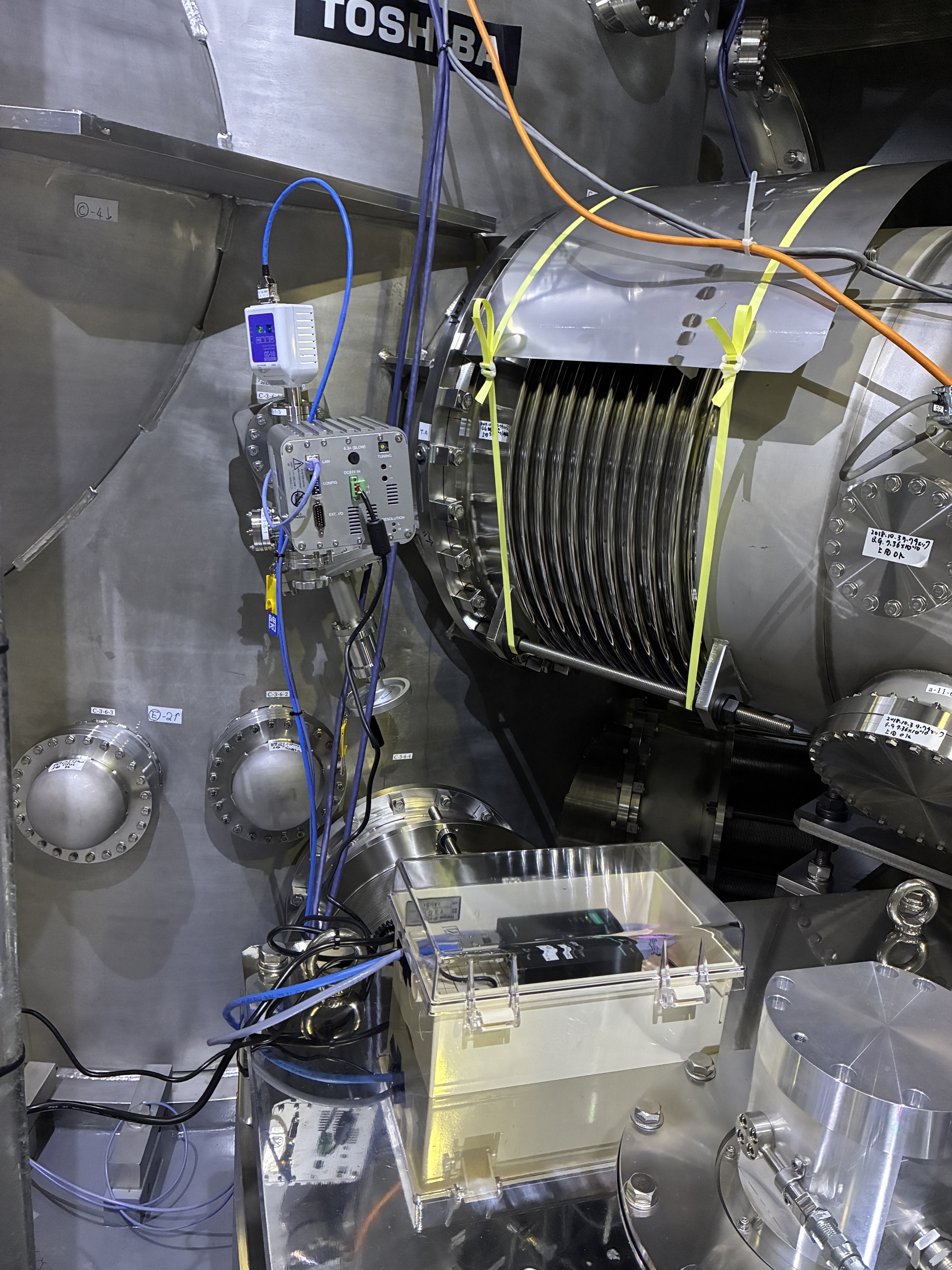

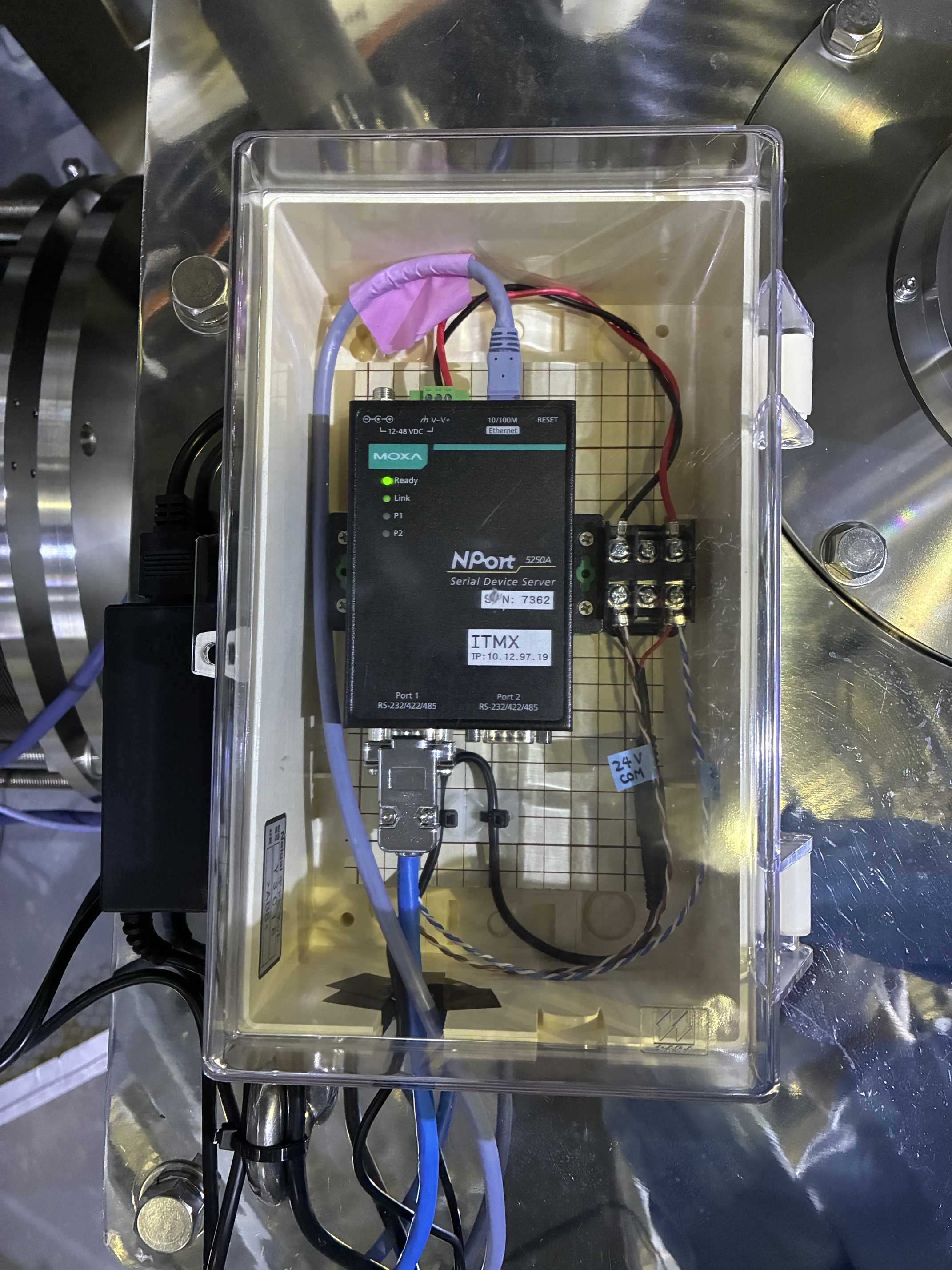

We have connected the pressure gauge of the IXC cryostat to the network.
The readings are provided via the following PV:

K1:VAC-PRESSURE_X_ITMX

Images attached to this report

Comments to this report:

takahiro.yamamoto - 0:24 Tuesday 27 October 2026 (37742)

The readout channel of vacuum level at ITMX was added to the DAQ, Guardian alert, and the Web trend monitor.
The status of the gate valves at PR3-PRM and SR3-SRM was also added to the DAQ and Guardian alerts.

koji.nakagaki - 14:22 Wednesday 28 October 2026 (37758)

PV:K1:VAC-PRESSURE_X_ITMX has been added to the MEDM screen “VAC_OVERVIEW”.
