PEM (Center)
tatsuki.washimi - 16:15 Friday 13 February 2026 (36361) Print this report
Comment to PEM injection test 260213 (36345)

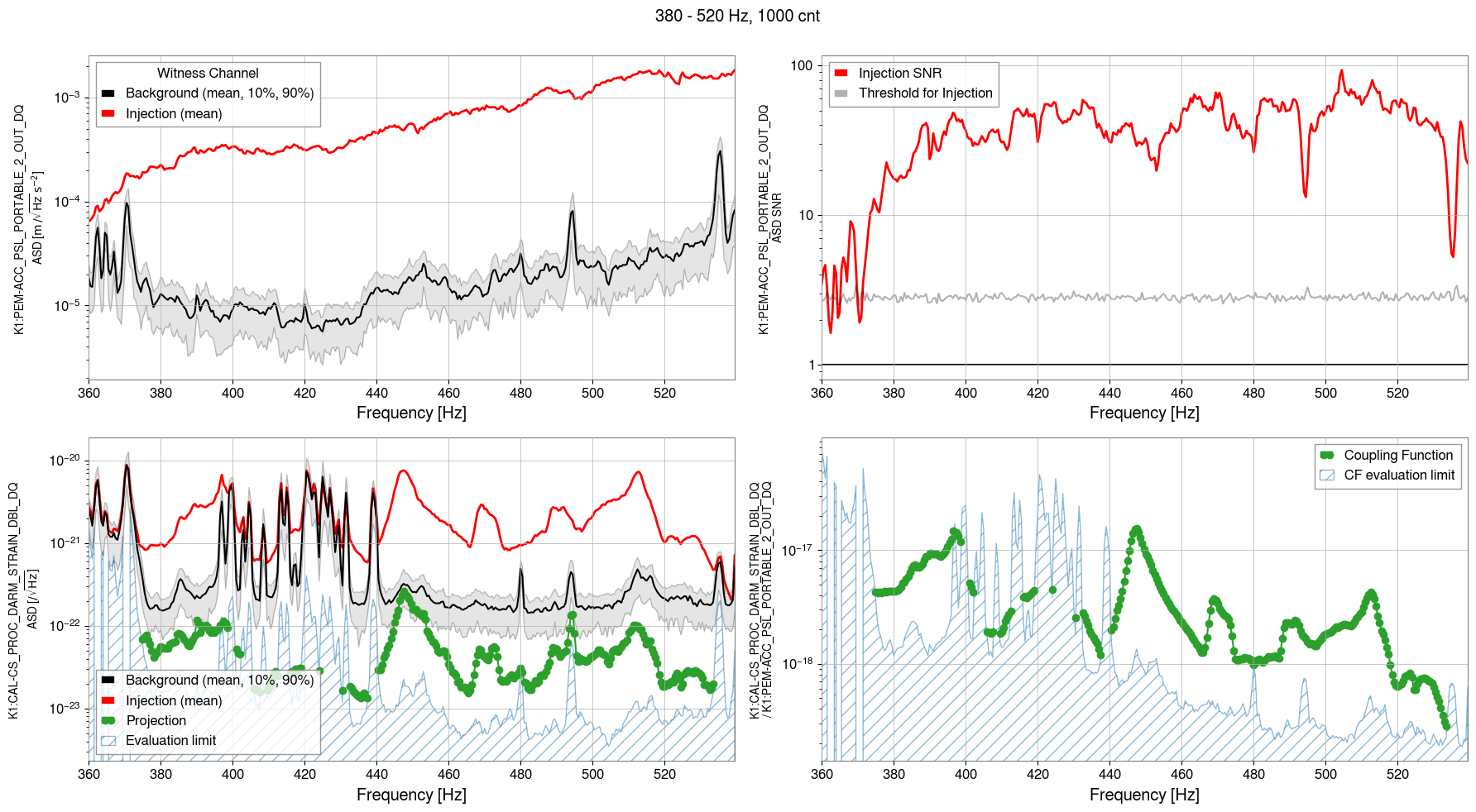

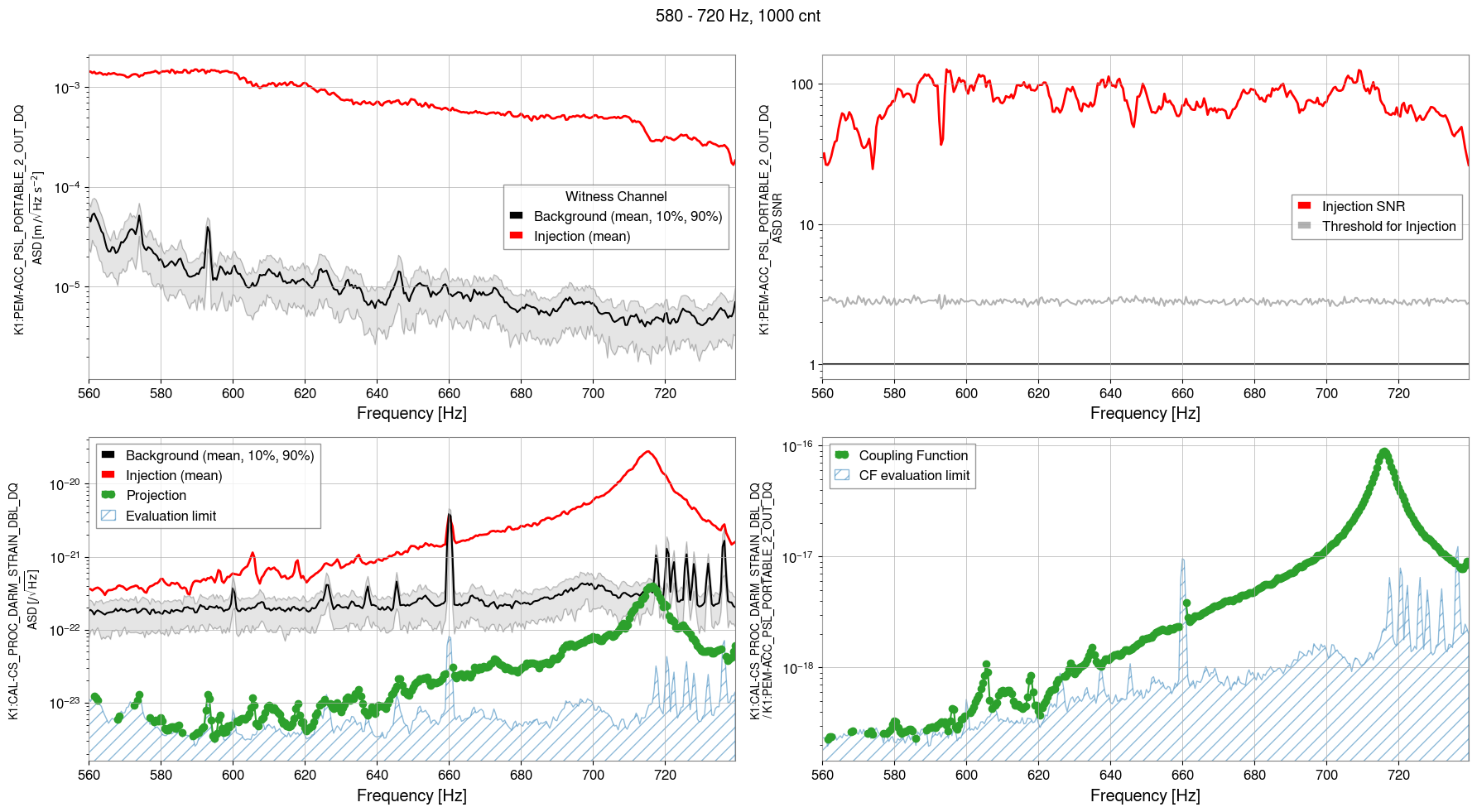

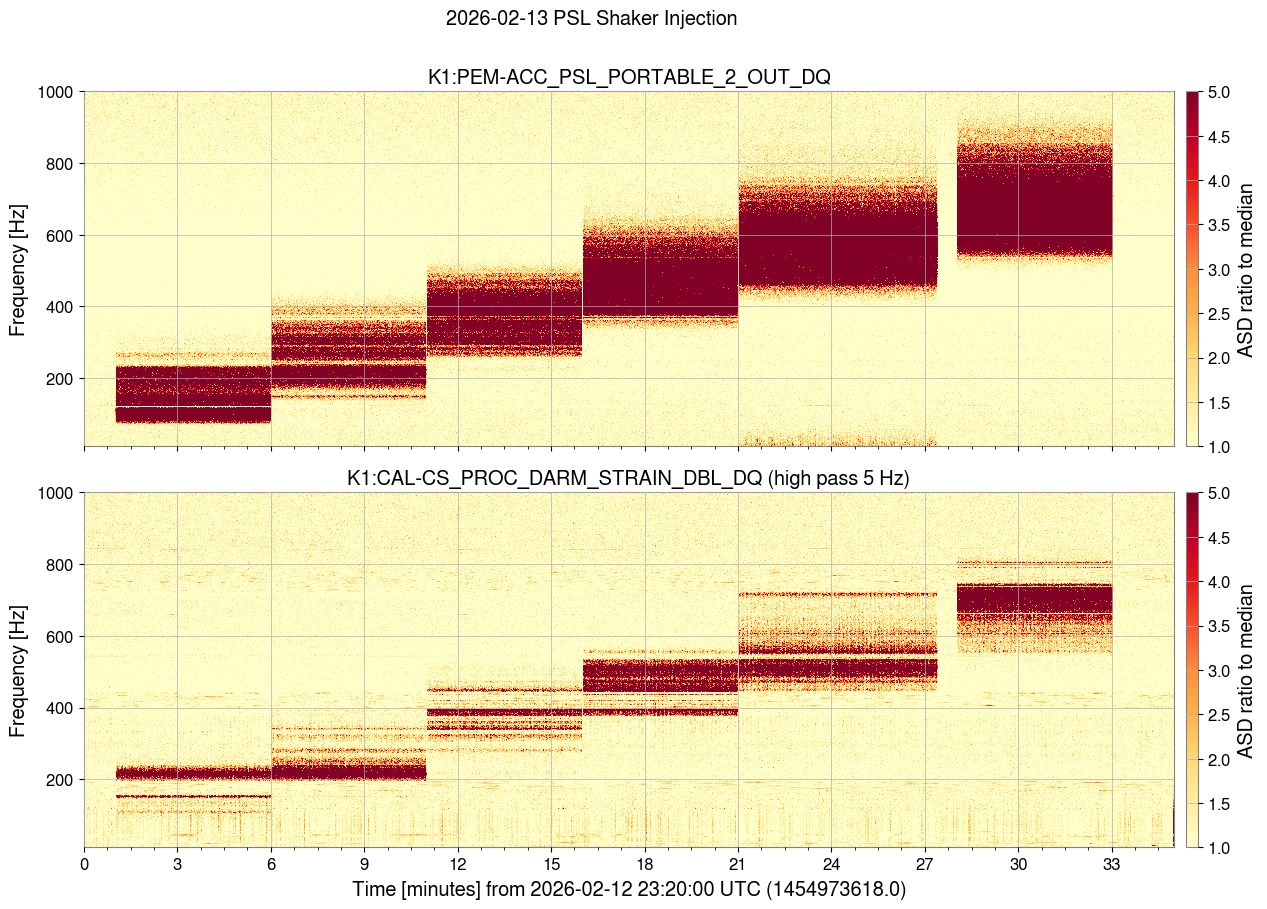

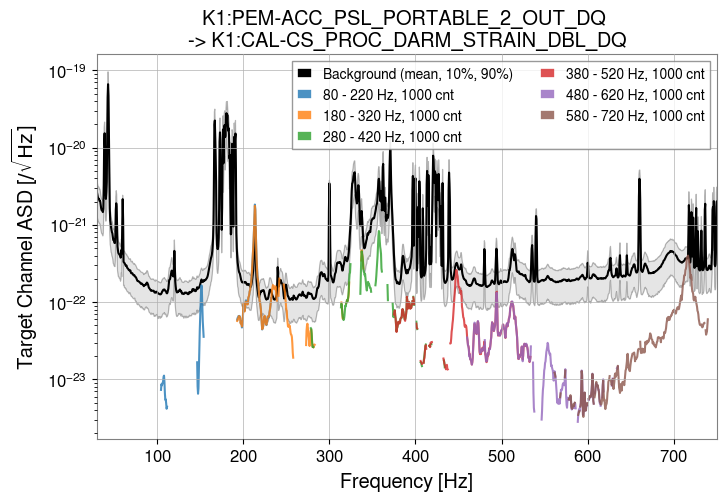

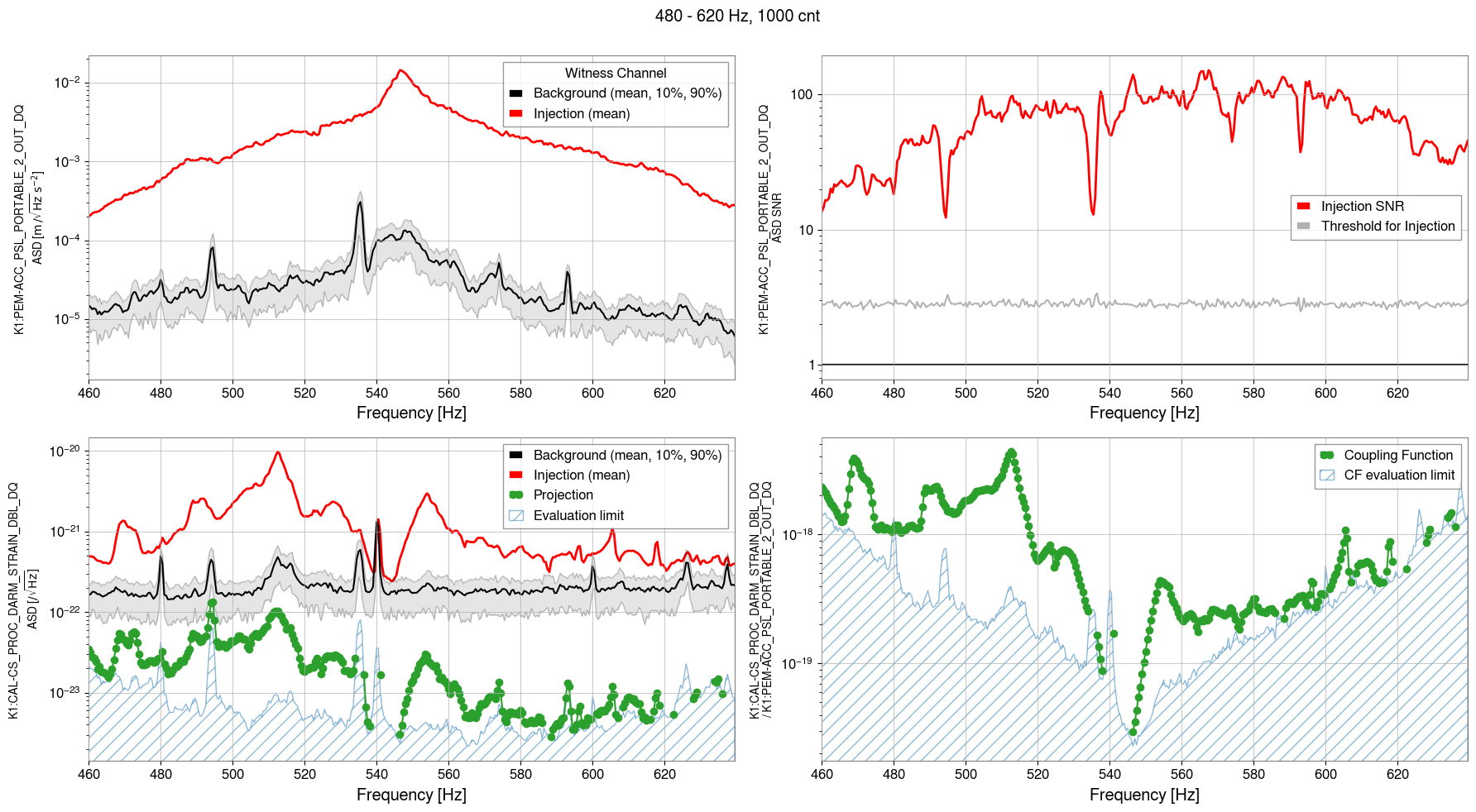

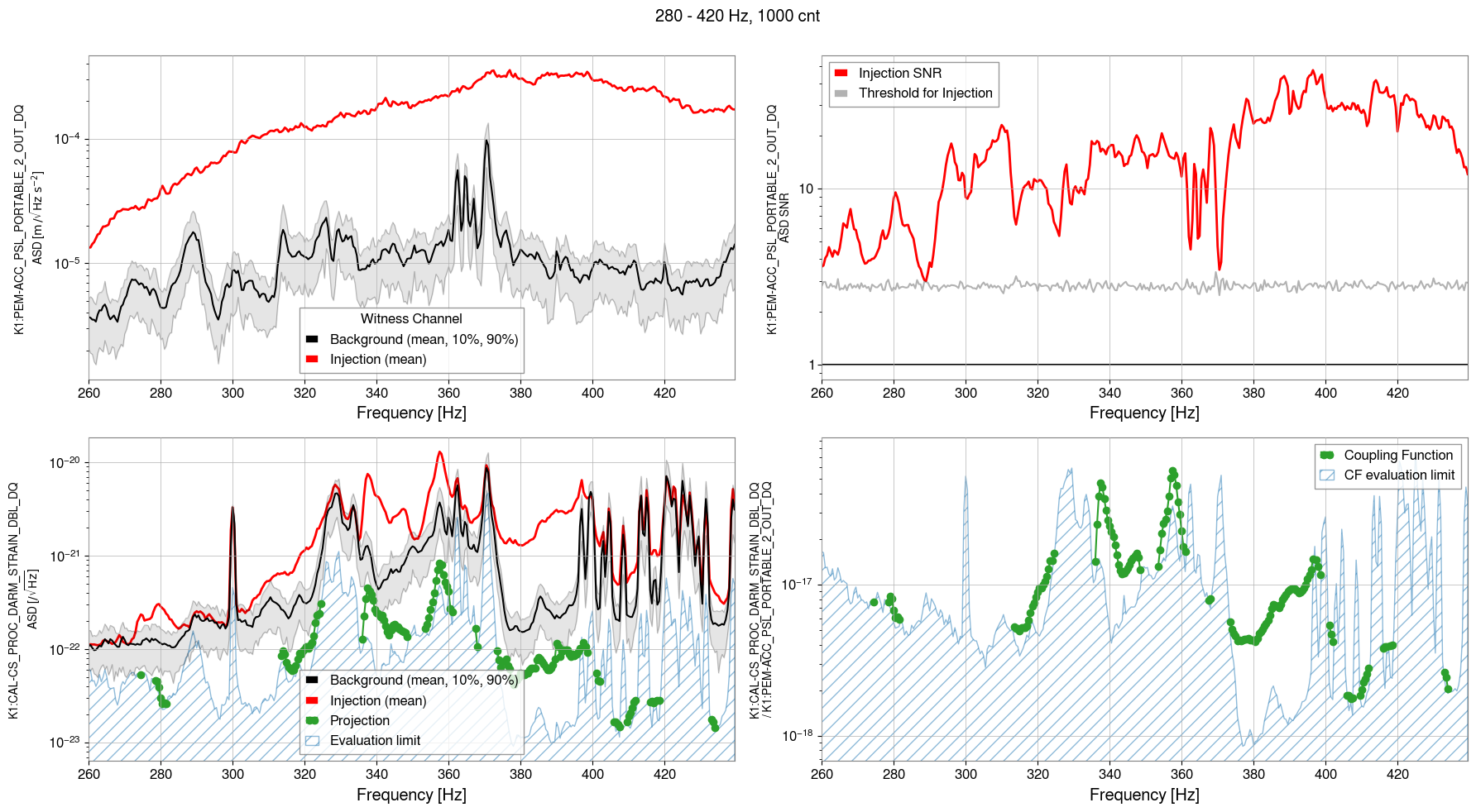

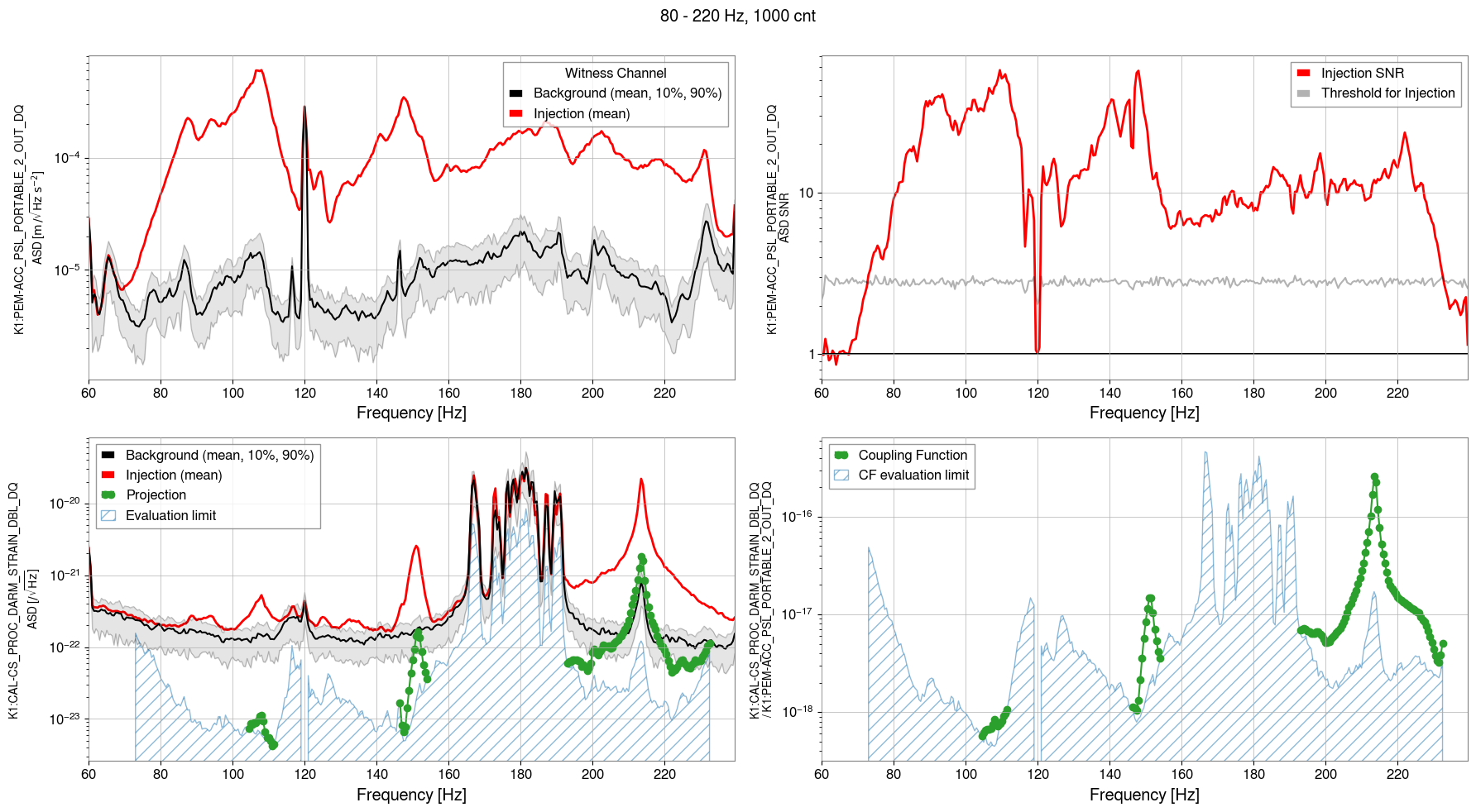

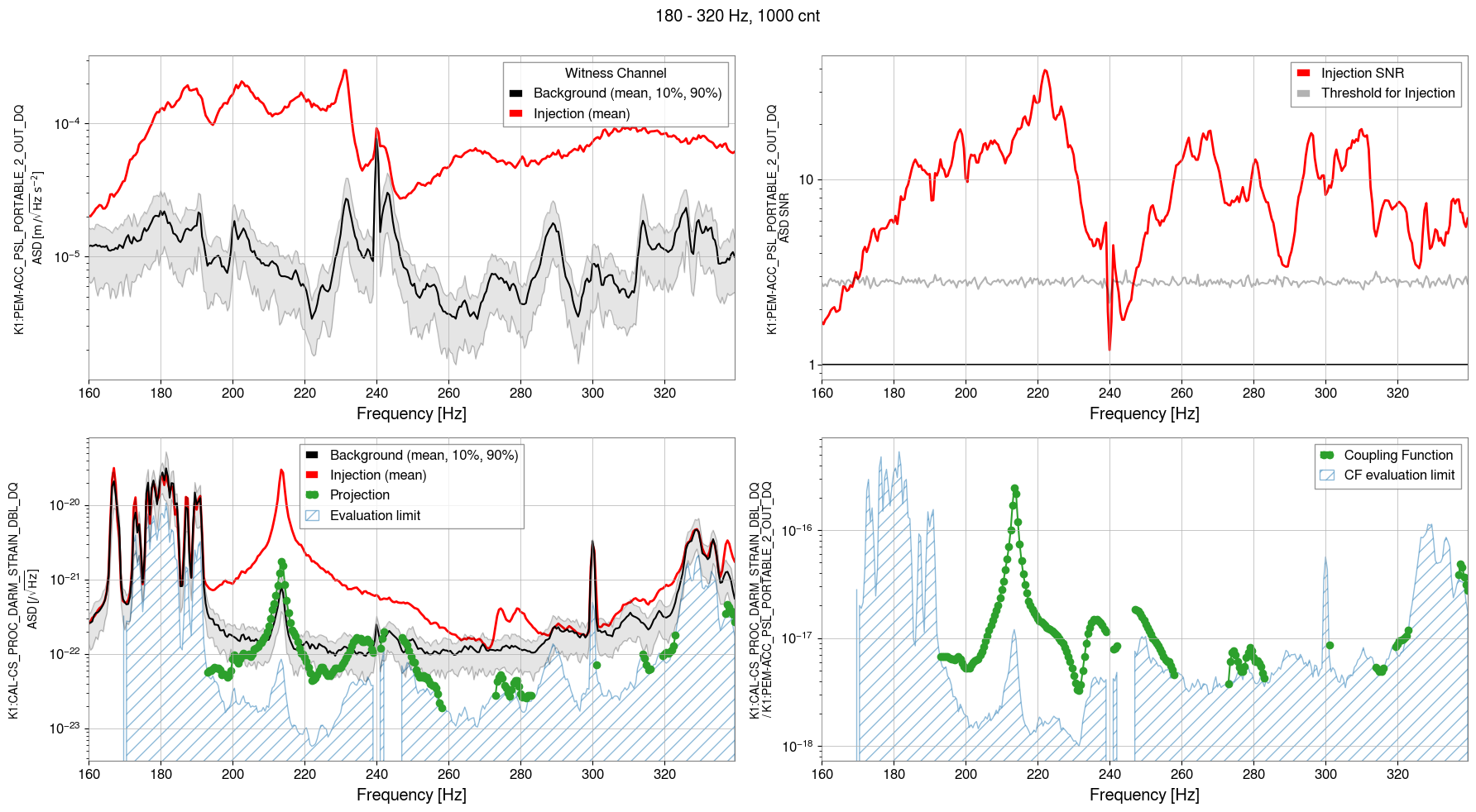

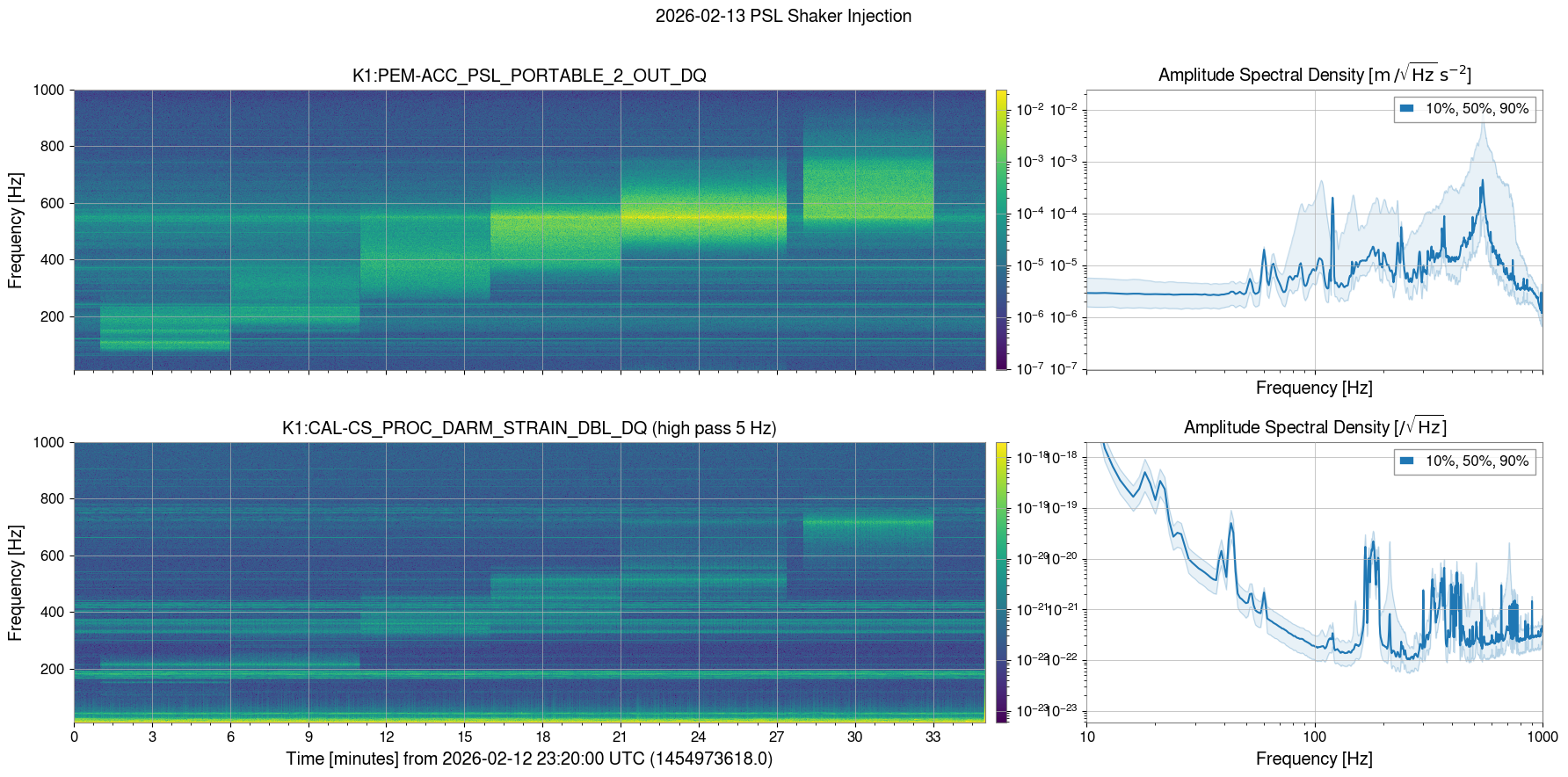

Plots for the Shaker 4 injection:

EXC channel : K1:PEM-EXCITATION_MCF0_RACK_12_EXC
REF : K1:PEM-ACC_PSL_PORTABLE_2_OUT_DQ

Images attached to this comment
