For the future shaker injection test at PSL room, we performed the cabling from the MCF0 rack to cable entrance at the PSL room.
We used the DAC0 9 - 12 ch.
We don't know this work affect or not, I found the model of the K1MCF0 was not working, as shown in Fig.1.
> We don't know this work affect or not, I found the model of the K1MCF0 was not working, as shown in Fig.1.
Status Check
The status of k1mcf0 has been confirmed.
All k1mcf0 models are dead (fig1)

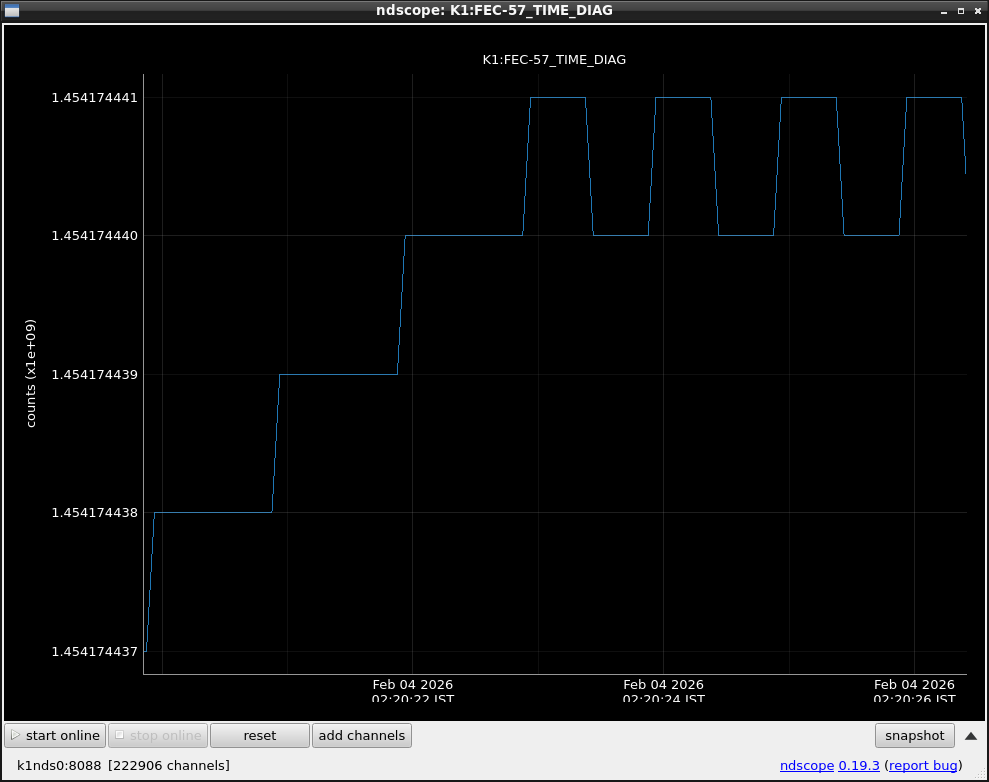

FEPC hung, occurring around 2026-2-4 2:20:24 (JST) (fig2)

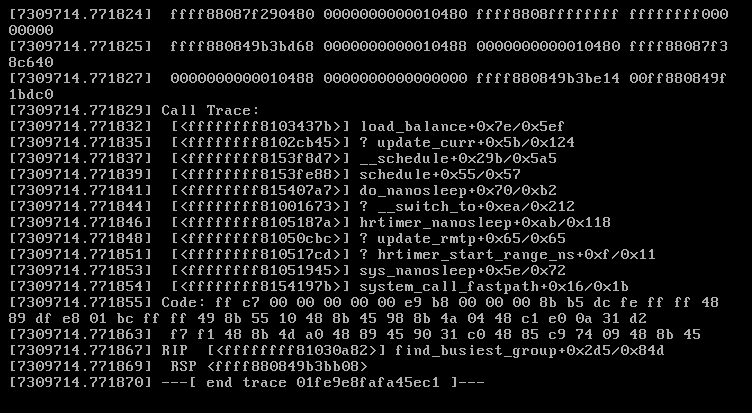

Upon checking the terminal screen, it had stopped due to factors such as a Kernel Panic (fig3)
Countermeasures
Performed a reset via the BMC interface and rebooted.
The Front-end computer was alive at this time.
