For P

Phase (deg) for P

I added more information from Washimi-san's result
REFL_QPDA{1,2}_RF17_{I,Q}


REFL_QPDA{1,2}_RF45_{I,Q}


POP_QPDA{1,2}_RF17_{I,Q}



For IMMT2 ASC control, REFL QPD2 RF17 I with -52 dB(-0.0025)
For PR3 ASC control, REFL QPD1 RF 45 Q with - 46 dB (0.005)
For BS ASC control, the combination of the POP QPDA2 RF 17 I with -27 dB(-0.0450) and Q with -22 dB (0.0790)


We selected the sensors for INP, PRC, MICH for P as follows:

• INP: REFL 2 RF17 I
• PRC: REFL 2 RF45 I
• MICH: POP 2 RF17 I and Q

Then, we adjusted the INMTRX.

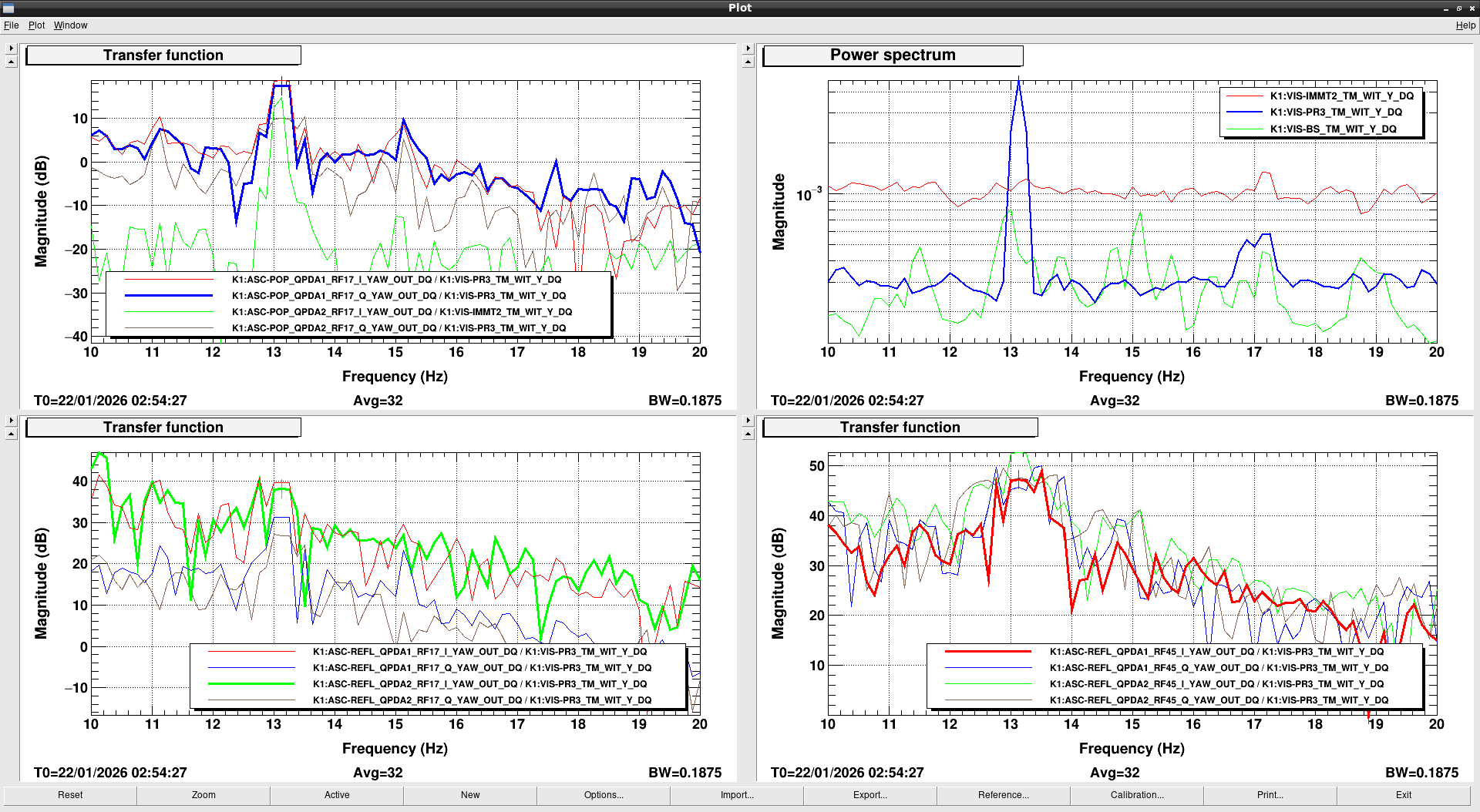

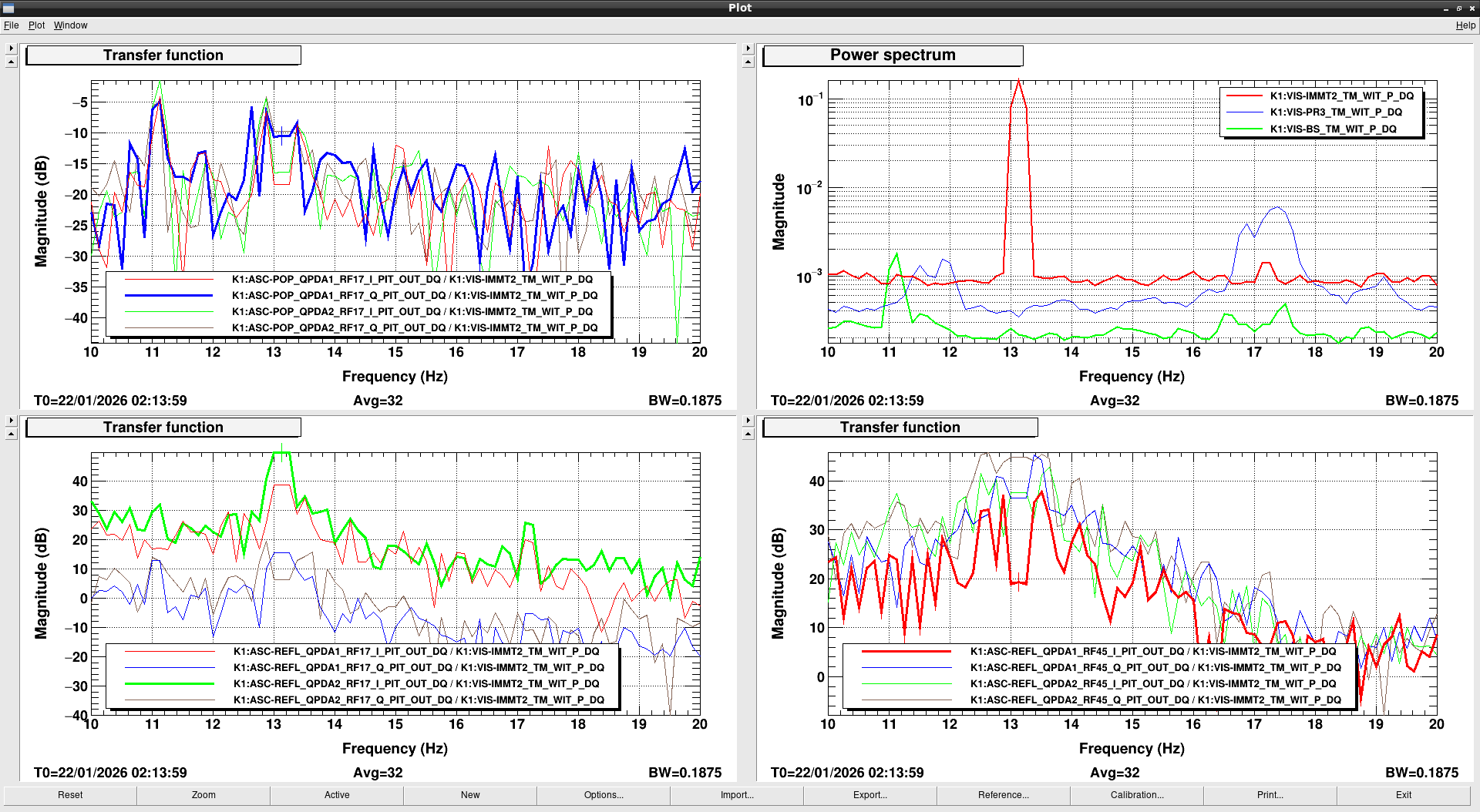

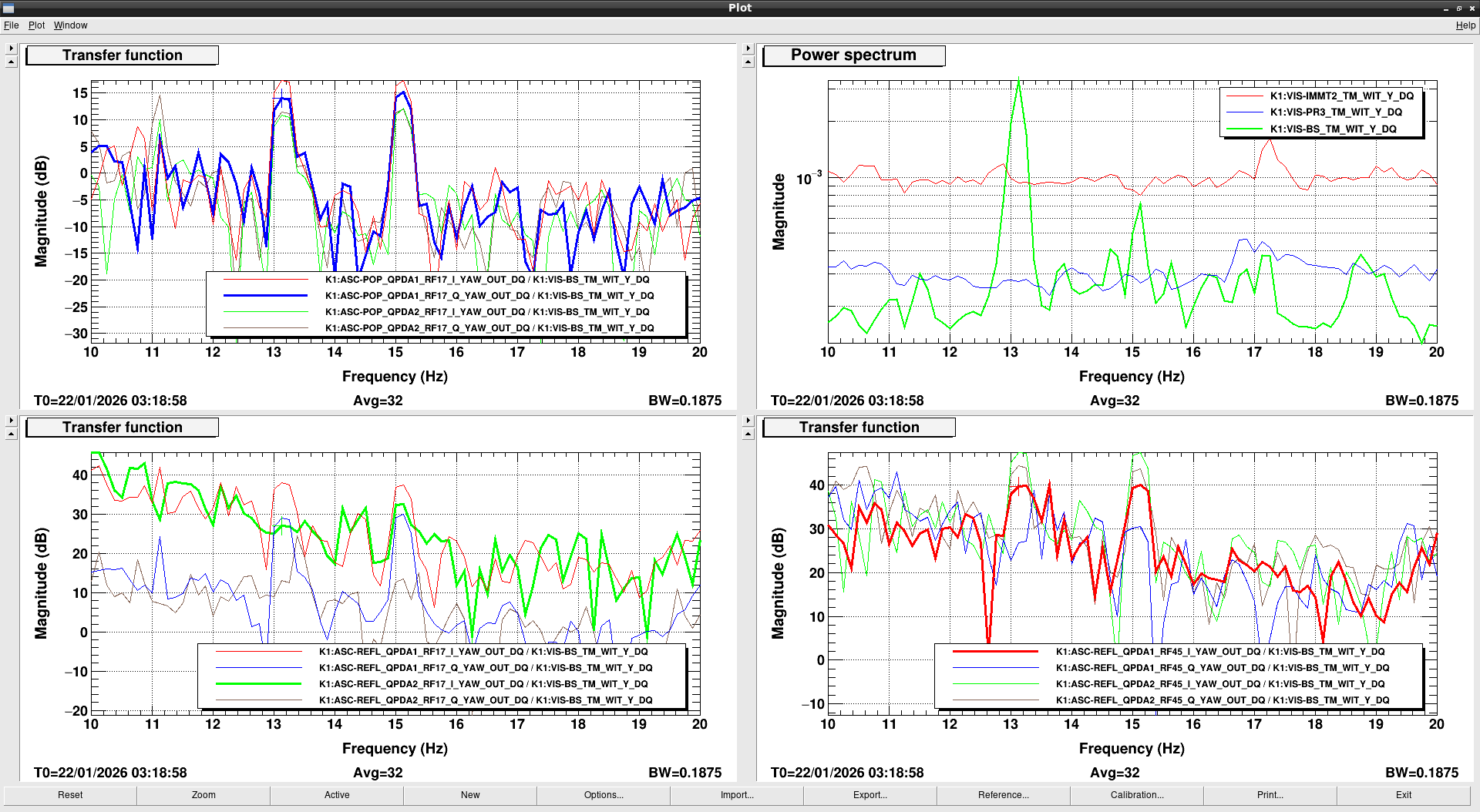

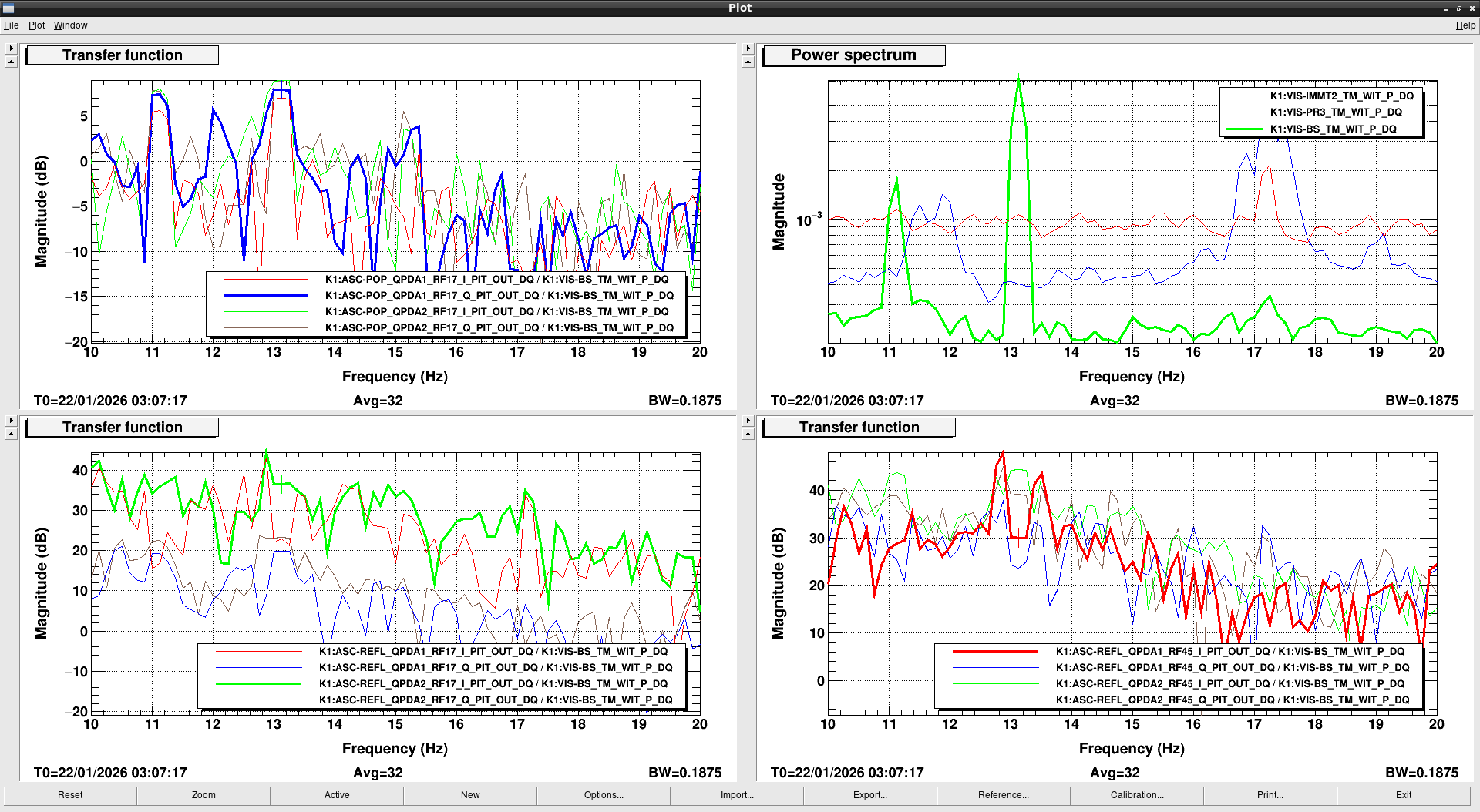

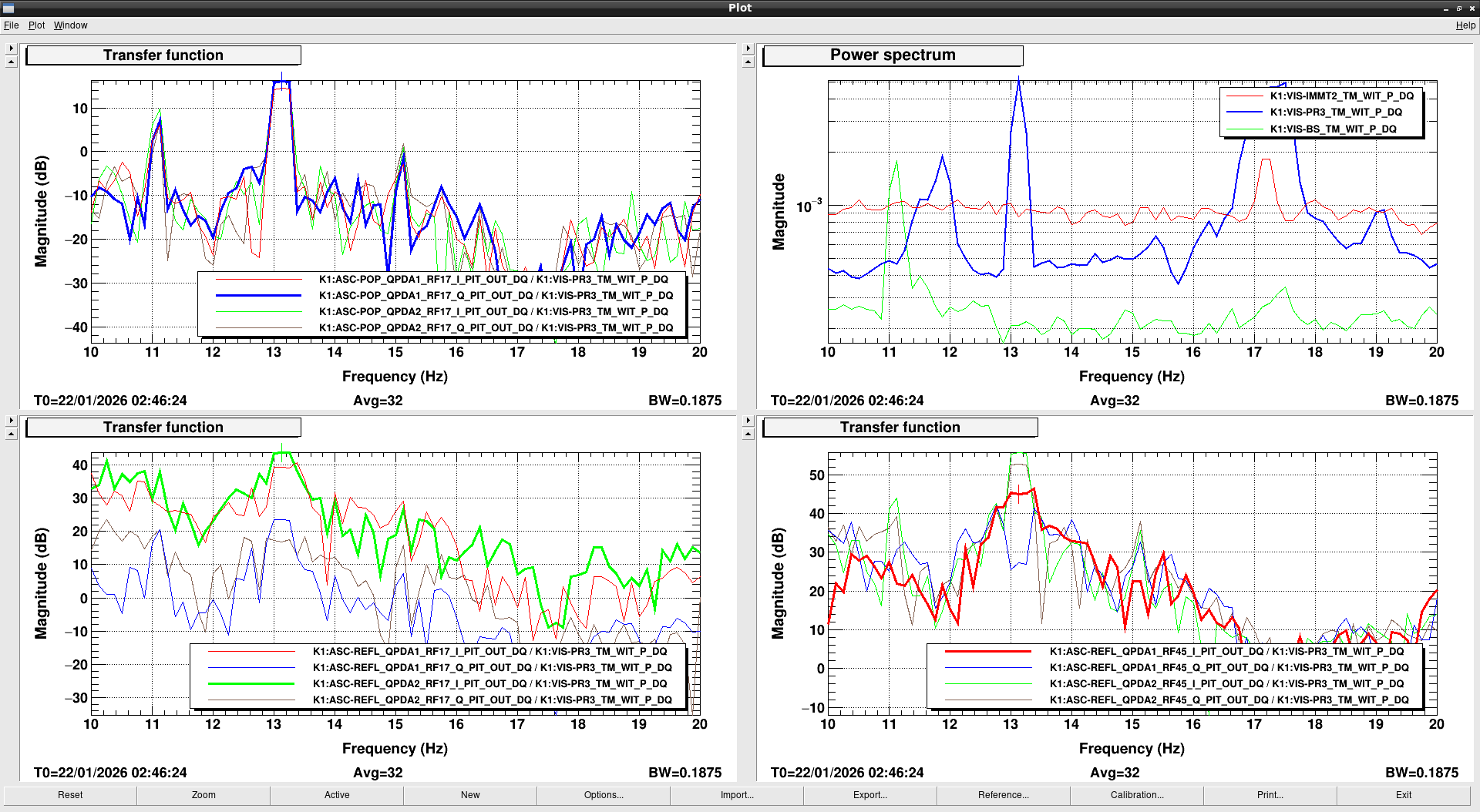

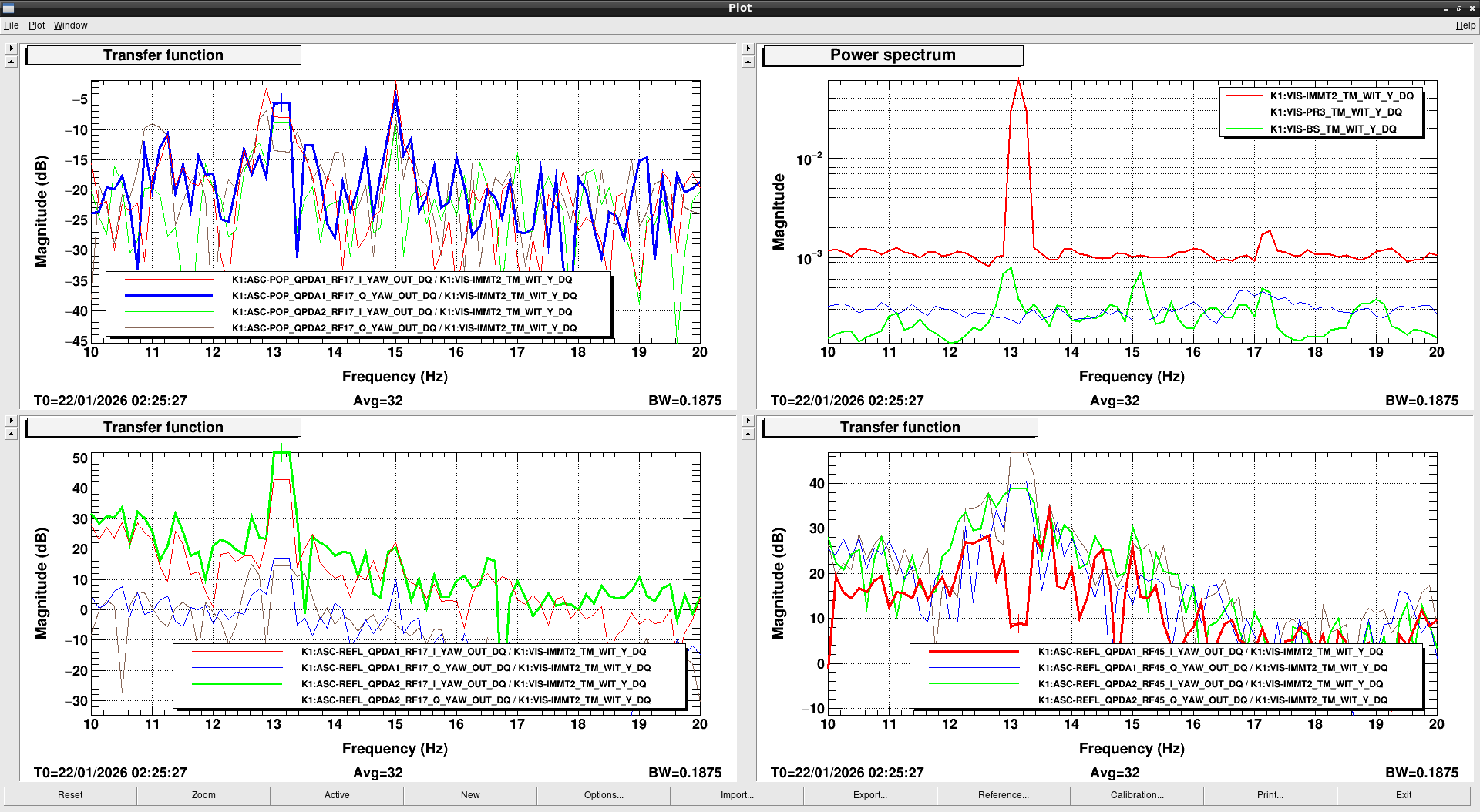

Attached figure shows the result. We used the 13.125Hz to measure the relations.

• INP: REFL 2 RF17 I
• PRC: REFL 1 RF45 I and Q
• MICH: POP 1 RF17 I and Q
