We have installed a data logger Yokogawa DL950 (JGW-S2516987) in TMSX rack.

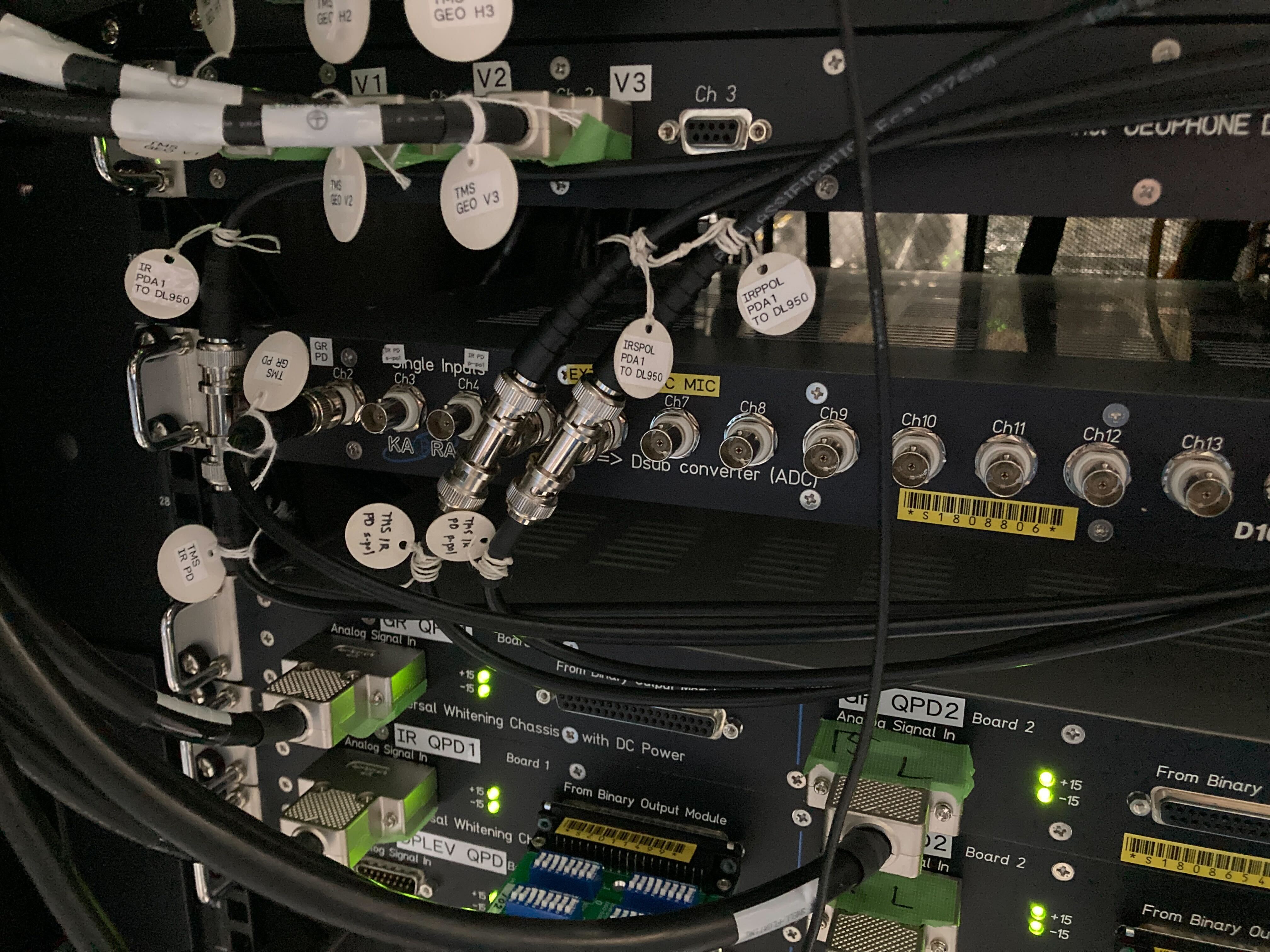

The BNC cables from the PDs to the BNC-Dsub Converter were split into two (Fig. 1), and sent to DL950.

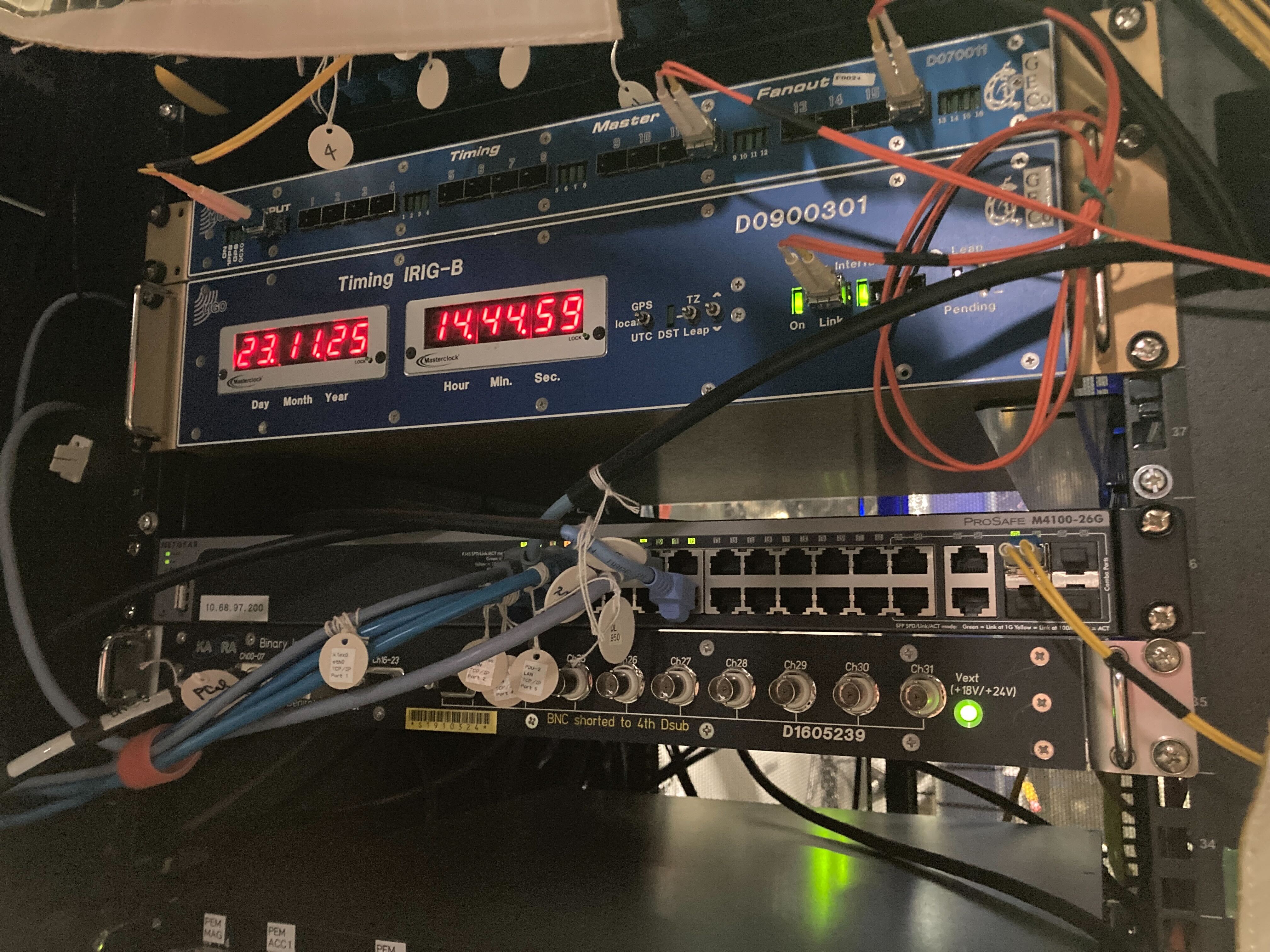

The 40 m LAN cable was inserted to the M4100-26G DGS in EX0 rack JGW-D1809427 (Fig. 2), and sent to DL950.

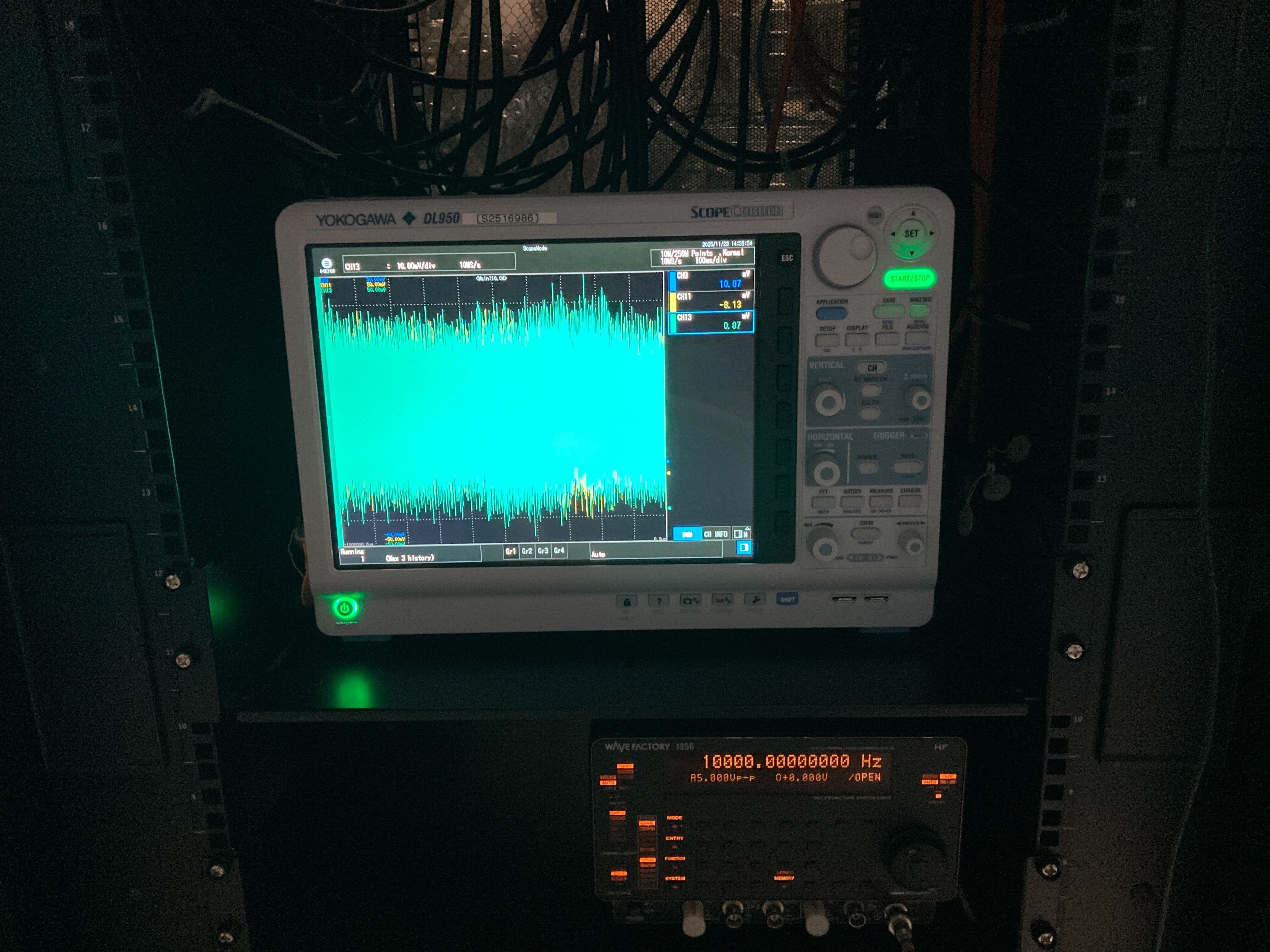

It is now sitting above the function generator (occupying 10-16 of the TMSX rack JGW-D1809427) (Fig. 3).
We have assigned an IP address, and now can be controlled from a web browser.
It is now monitoring the direct outputs (so, no whitening nor anti-aliasing) from X_IR_PDA1 (Ch 9), X_IRSPOL_PDA1 (Ch 11), and X_IRPPOL_PDA1 (Ch 13) (see, also klog #33283) to get a high frequency polarization fluctuation data.
Work log
Entered the mine: 11:45
Entered Yend: 12:16
Exited Yend: 14:50
Exited the mine: 15:10
(All in November 23, 2025 in JST)
