IOO (Laser Bench)
kenta.tanaka - 13:58 Friday 13 June 2025 (34193) Print this report
Comment to Segment 1 and 4 of PSL ALIGNMON QPD are saturated when PSL output gets 10W (34116)

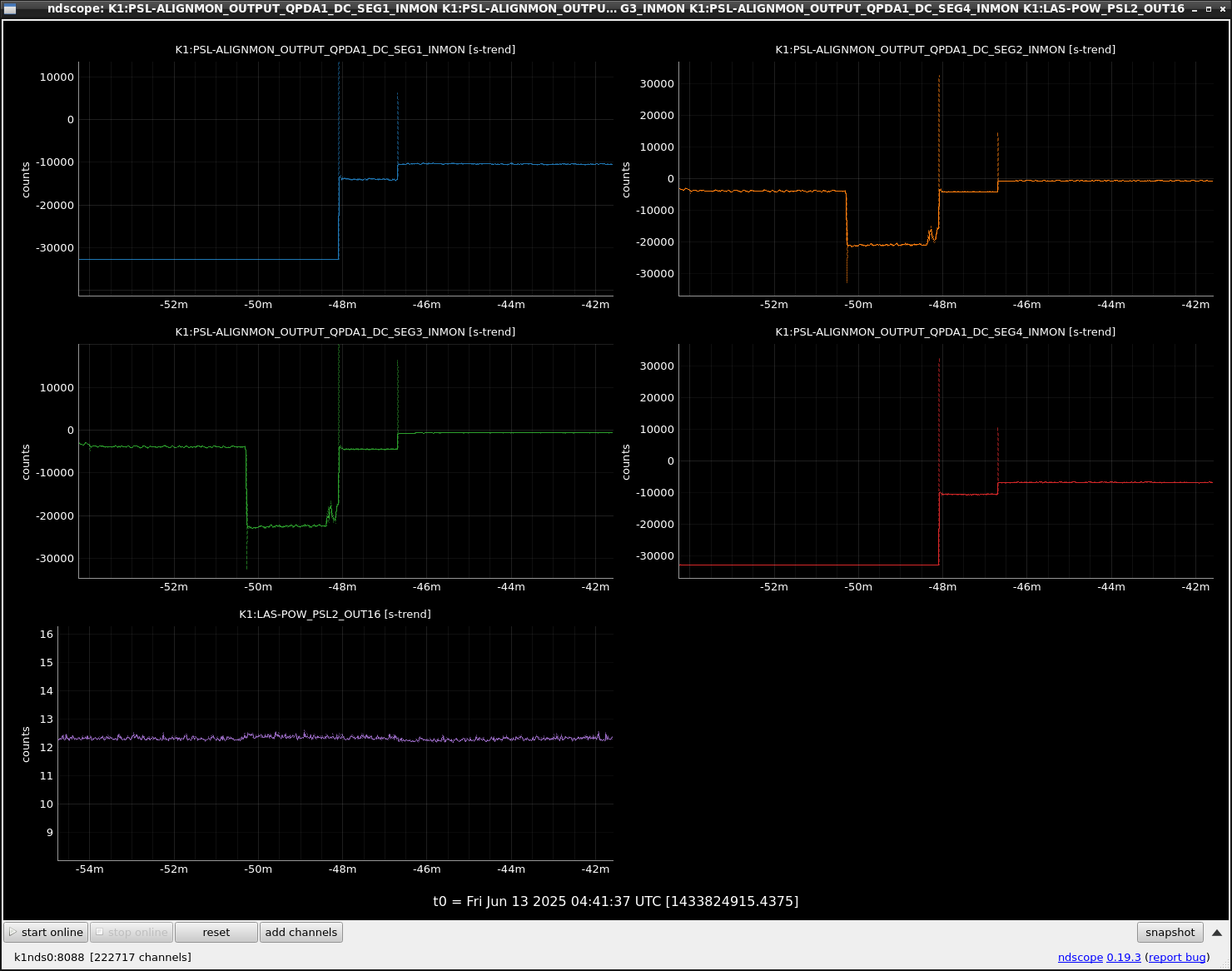

I toggled the gain switch on ALIGNMON QPD from HIGH to LOW. Thanks to switching, saturations on SEG 1 and 4 were solved (fig.1). I measured the dark offsets and subtracted them by changing the values in K1:PSL-ALIGNMON_OUTPUT_QPDA1_DC_SEG{1,2,3,4}_OFFSET.

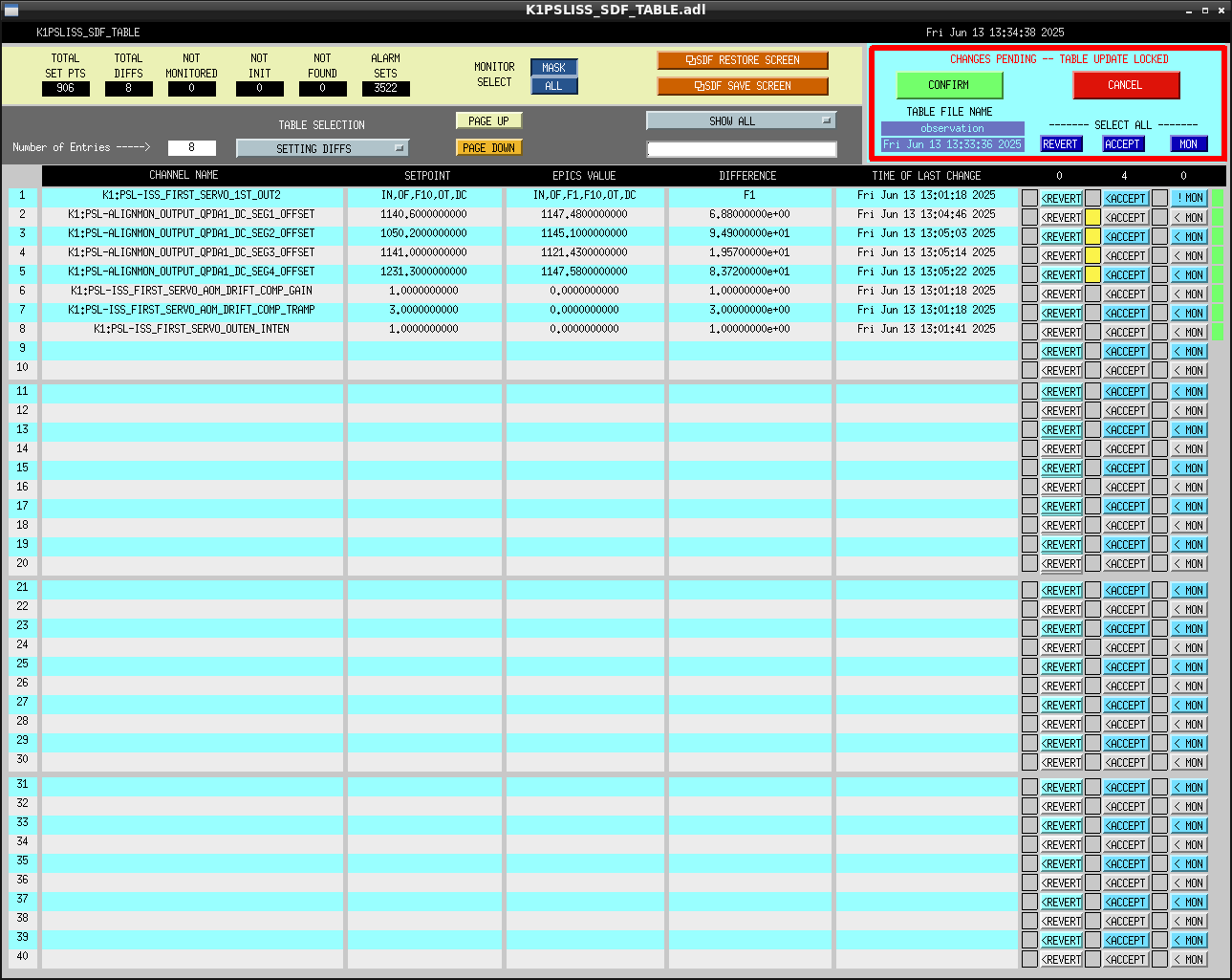

The SDFs related K1:PSL-ALIGNMON_OUTPUT_QPDA1_DC_SEG{1,2,3,4}_OFFSET were accetpted in OBSERVATION.snap (fig.2)

Images attached to this comment
