VIS (SR2)
shinji.miyoki - 8:47 Sunday 08 June 2025 (34104) Print this report
SR2 Yaw oscillation is increasing for the last 1 week

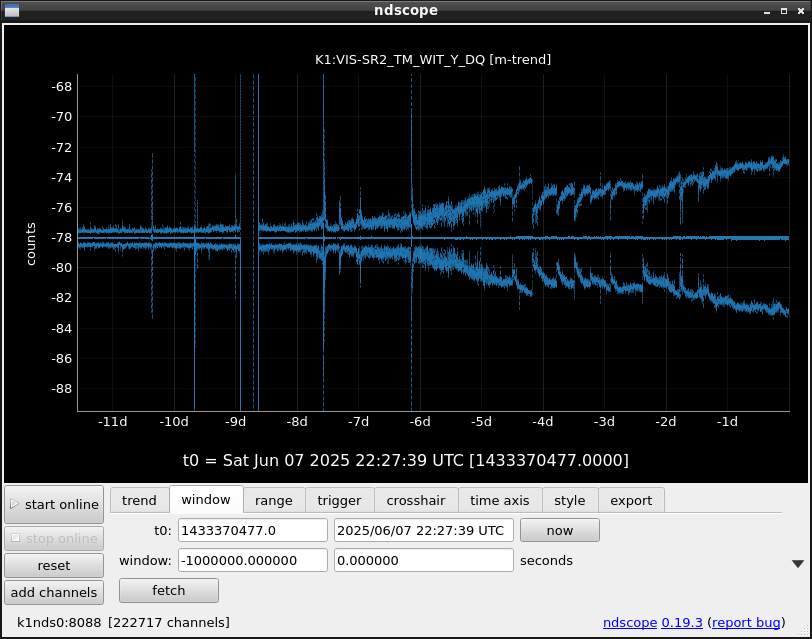

SR2's Yaw oscillation has been increasing for the last week up to 8 urad from the last report by ushiba-kun. It should be mitigated. It could be the reason for the short lock. (Fig.1)

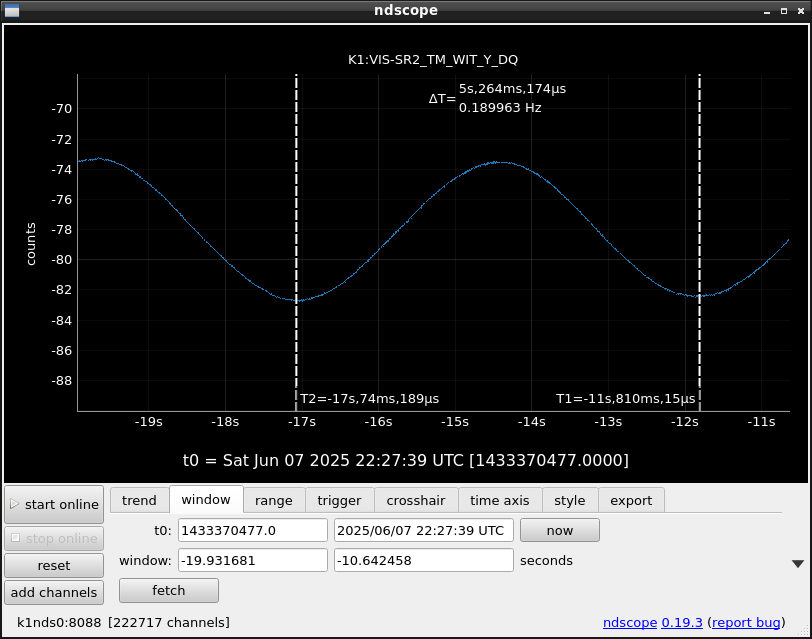

The frequency is about 0.19 Hz. (Fig.2)

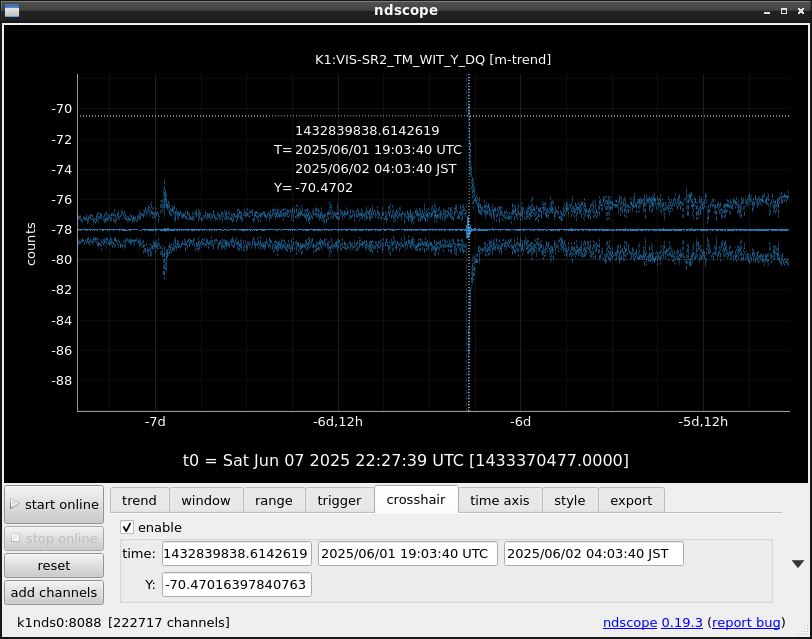

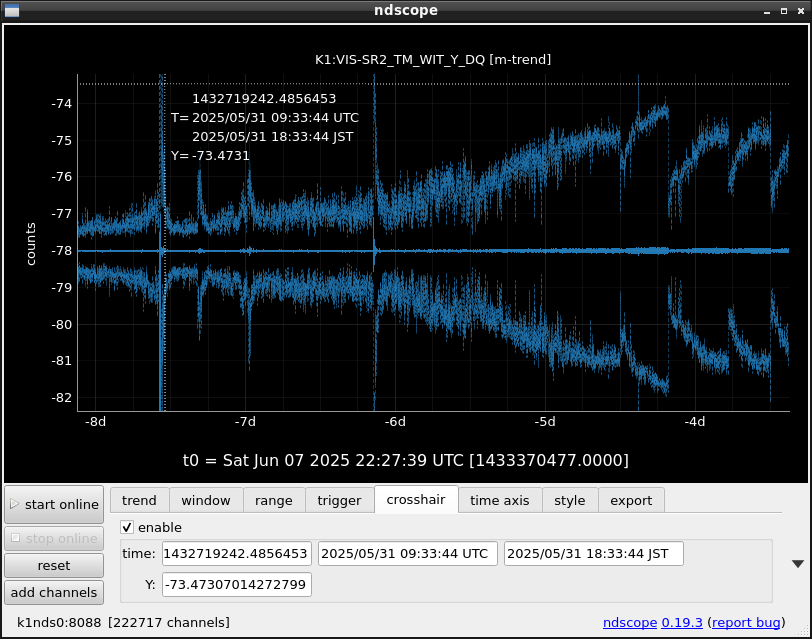

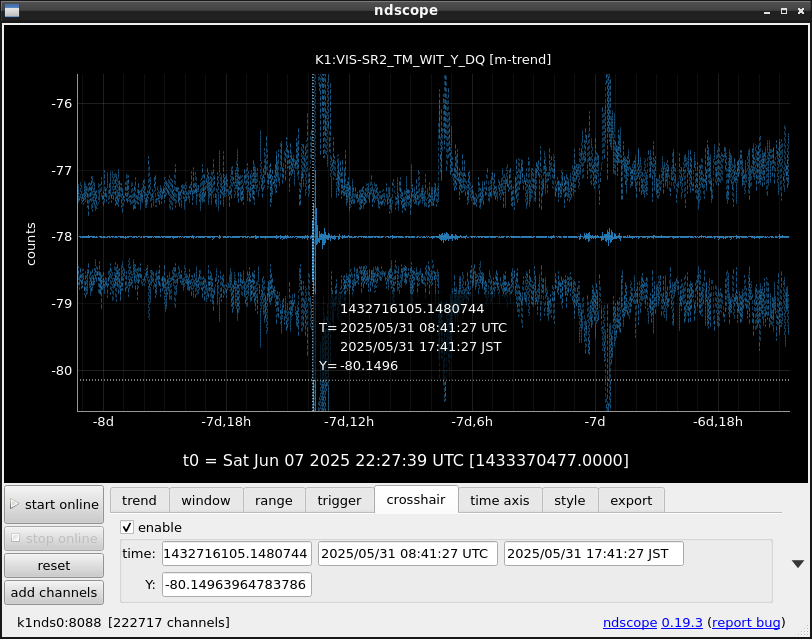

This oscillation growing up seemed to start on June 2nd Friday or on May 31st (Fig3,6). There was an M6.4 earthquake at Tokachi at the same time, denoted by the dotted line in Fig.3. While another M6.1 earthquake happened on May 31st, and it matched with the oscillation glowing up timing(Fig.6).  So some seismic noise excitation seemed to change the SR2 suspension conditions.

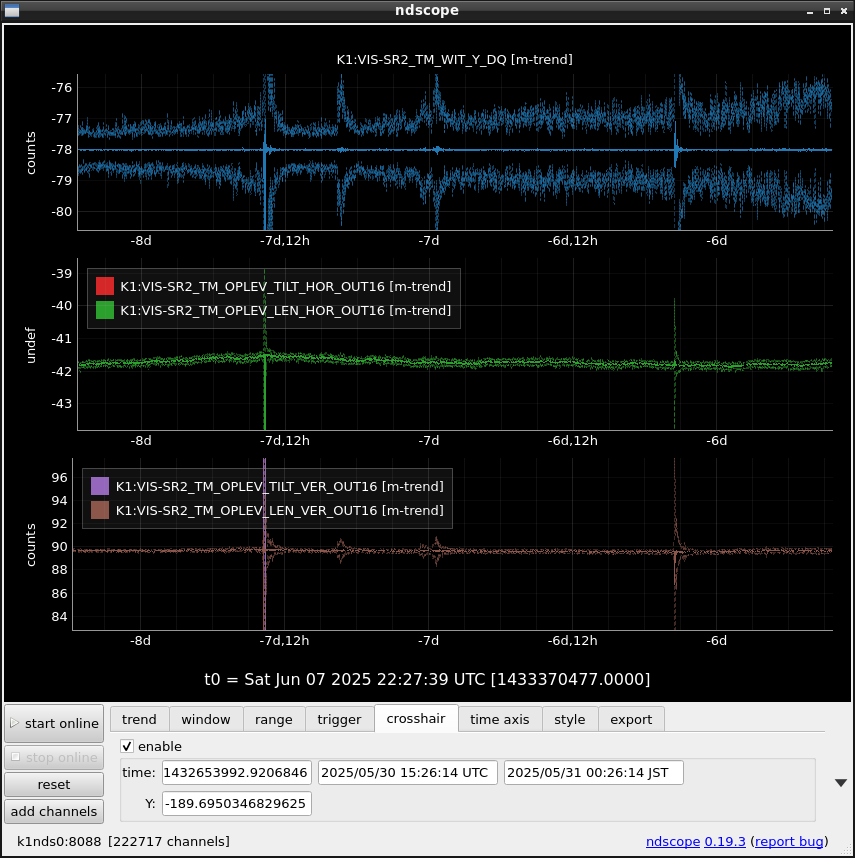

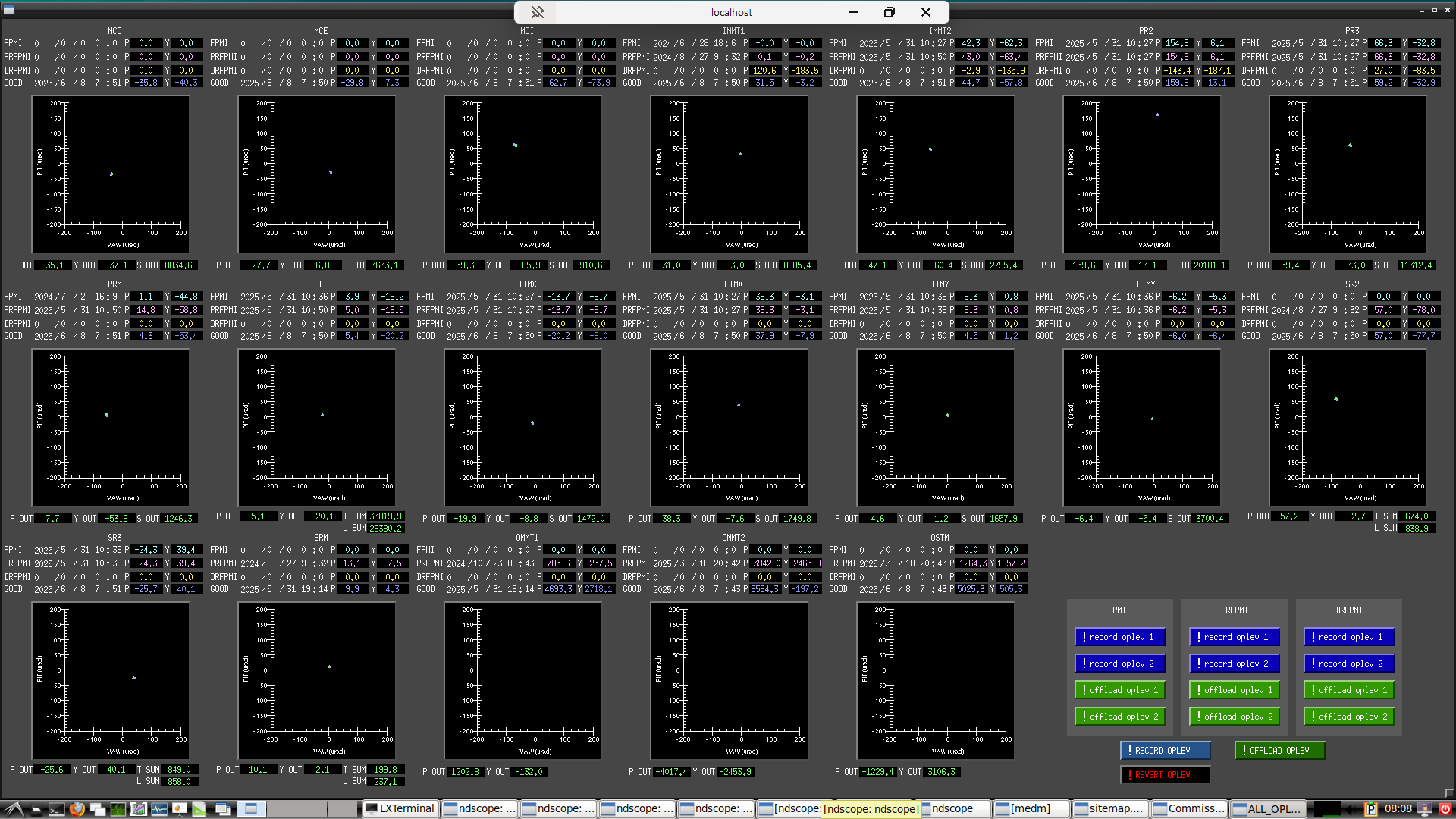

SR2 Oplev values are not so bad? or yaw is near 100urad (Fig.5). No big changes at the big earthquake timing (Fig.7).

Images attached to this report
Comments to this report:
shinji.miyoki - 10:13 Sunday 08 June 2025 (34107) Print this report

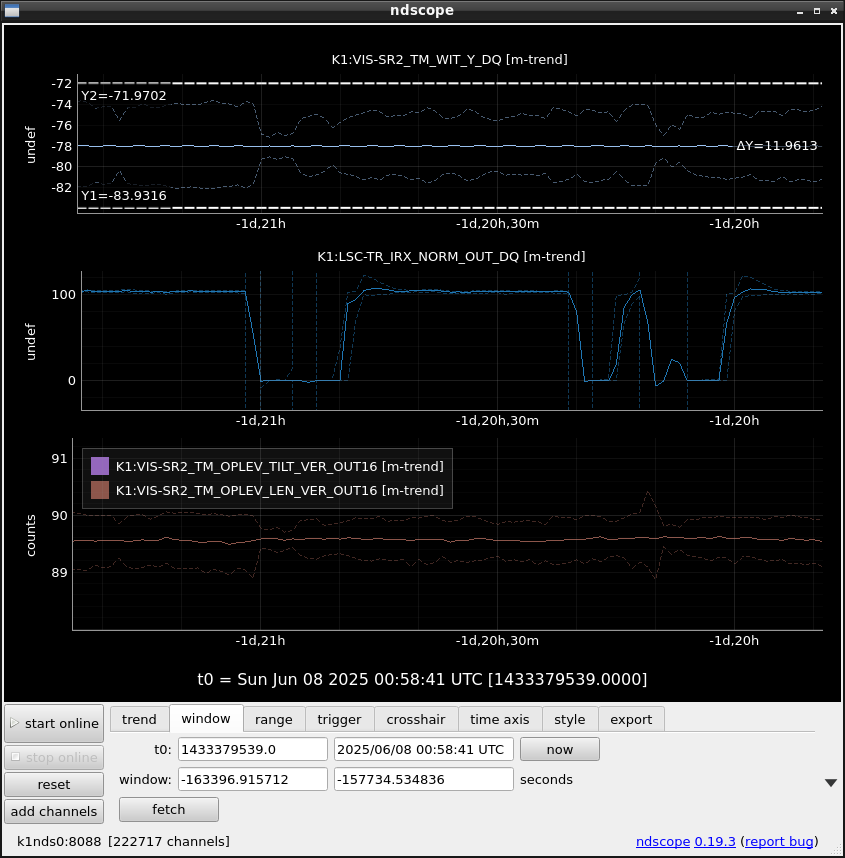

I checked the oscillation amplitude around lockloss (Fig.1). Just after the lock loss, the amplitude could be small. During the lock process, the amplitude starts increasing. So some control seemed to affect this amplitude.

According to Ushiba-kun, several reasons are possible for the damping controls using two paths.

Images attached to this comment
