takaaki.yokozawa - 14:50 Thursday 01 May 2025 (33633) Print this report

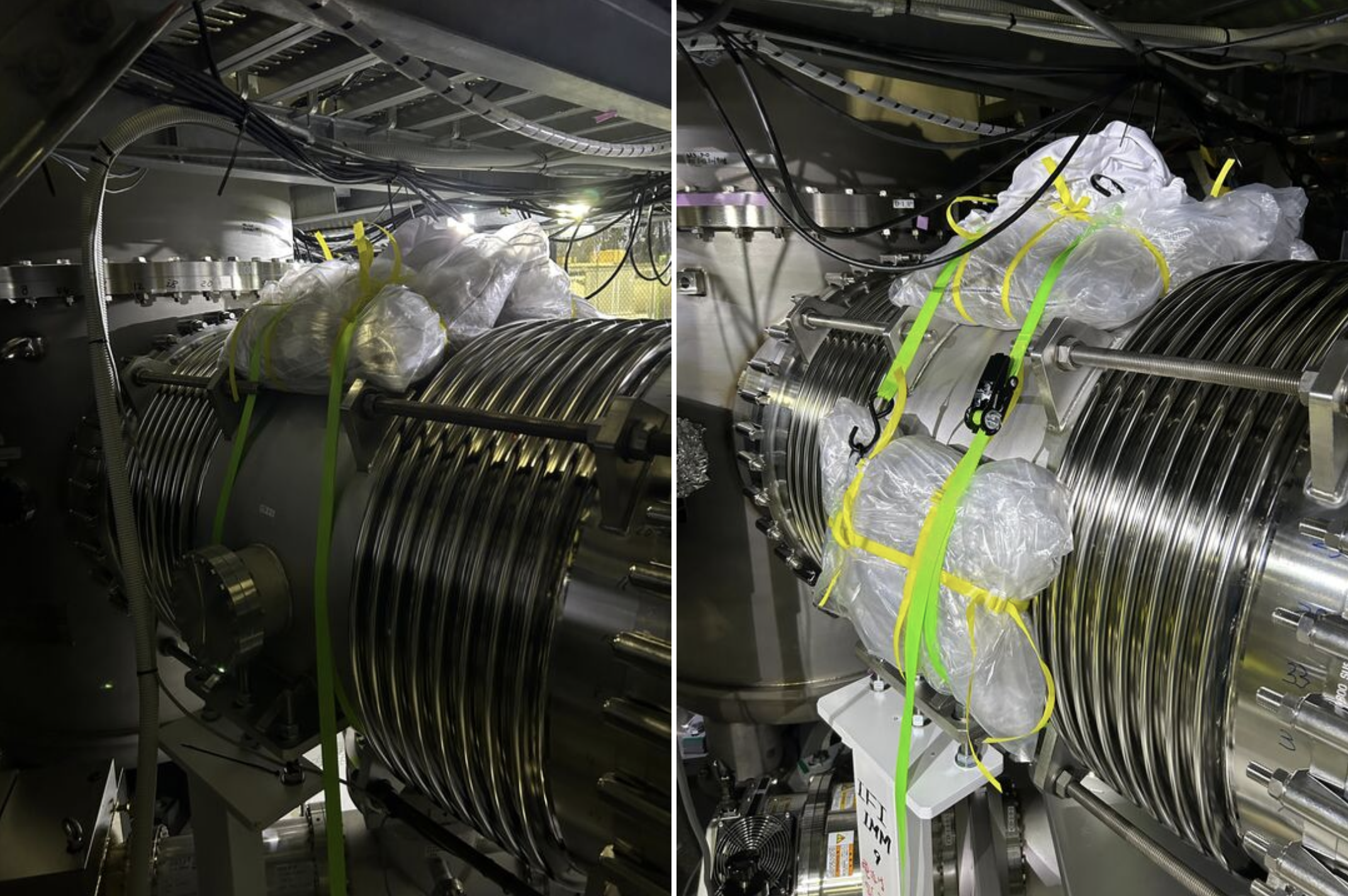

Trial of the adding the material on the beam duct between IFI and IMM
[Kimura, MTakahashi, Yasui, Yokozawa with Tomaru, Washimi supports]

We investigated the DARM specturm change by adding the material (Donoどのう) on the beam duct between IFI and IMM.
One material had about 20 kg, we installed totally three materials.

13:47 - 49 Completed the 1st material (+Y upper) and took data
13:53 - 55 Completed the 2nd material (+Y lower) and took data
14:05 - 08 Completed the 3rd material (-Y upper) and took data.

Even in any cases, the DARM sensitivity didn't change
Images attached to this report
