takaaki.yokozawa - 3:34 Friday 18 April 2025 (33462)

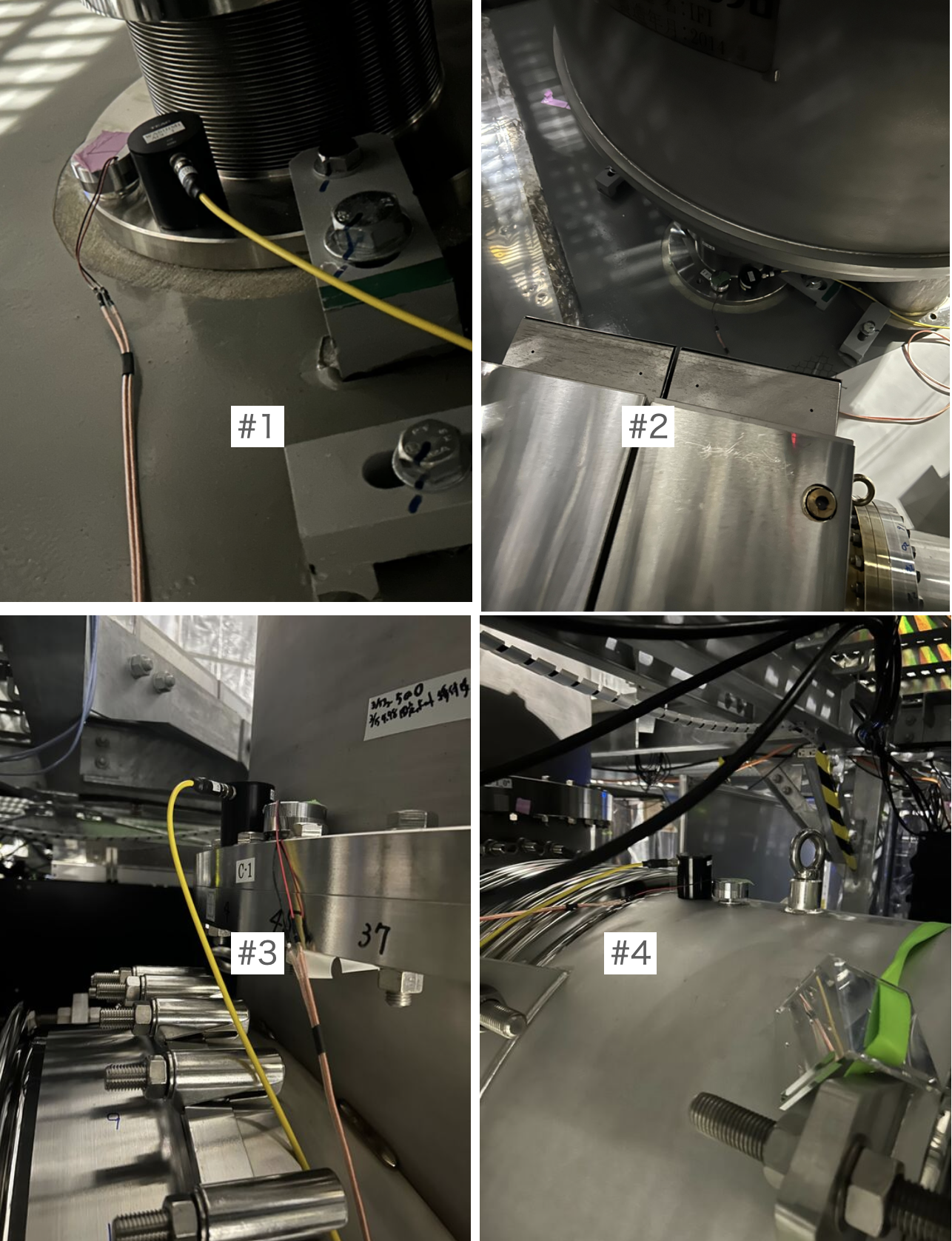

Moved the accelerometers and shakers from IMM to IFI chamber

I moved the accelerometers and shakers from PRM chamber to IMM chamber.

#1 accelerometer
On the bellows leg +X-Y side at IMM chamber (on the IMMT1)
K1:PEM-PORTABLE_PR_BOOTH_PR3_BNC1_OUT_DQ
#1 shaker
K1:PEM-EXCITATION_MCF0_RACK_9_EXC

#2 accelerometer
On the bellows leg +X-Y side at IFI chamber (on the IFI)
K1:PEM-PORTABLE_PR_BOOTH_PR3_BNC2_OUT_DQ
#2 shaker
K1:PEM-EXCITATION_MCF0_RACK_10_EXC

#3 accelerometer
On the top of the IFI chamber
K1:PEM-PORTABLE_PR_BOOTH_PR3_BNC3_OUT_DQ
#3 shaker
K1:PEM-EXCITATION_MCF0_RACK_11_EXC

#4 accelerometer
Beam duct between IMM and IFI (Not moved)
K1:PEM-PORTABLE_PR_BOOTH_PR3_BNC4_OUT_DQ
#4 shaker
K1:PEM-EXCITATION_MCF0_RACK_12_EXC

Images attached to this report

Comments to this report:

takaaki.yokozawa - 12:31 Monday 21 April 2025 (33494)

I removed two shakers and accelerometers.
Now only #3 and #4 remained.

#3 accelerometer
On the top of the IFI chamber
K1:PEM-PORTABLE_PR_BOOTH_PR3_BNC3_OUT_DQ
#3 shaker
K1:PEM-EXCITATION_MCF0_RACK_11_EXC

#4 accelerometer
Beam duct between IMM and IFI (Not moved)
K1:PEM-PORTABLE_PR_BOOTH_PR3_BNC4_OUT_DQ
#4 shaker
K1:PEM-EXCITATION_MCF0_RACK_12_EXC
