2025/04/11 6:17:00 - 06:52:00 Shaker injection test IMM #1
Excitation : K1:PEM-EXCITATION_MCF0_RACK_9_EXC
50 - 900 Hz , 5Hz resolution, 10 s in each measurement, 100 cnt
Fig.1. showed the whitening spectrogram
2025/04/11 6:52:00 - 07:27:00 Shaker injection test IMM #2
Excitation : K1:PEM-EXCITATION_MCF0_RACK_10_EXC
50 - 900 Hz , 5Hz resolution, 10 s in each measurement, 100 cnt
Fig.2. showed the whitening spectrogram
2025/04/11 7:27:00 - Shaker injection test PRM #3
Excitation : K1:PEM-EXCITATION_MCF0_RACK_11_EXC
50 - 900 Hz , 5Hz resolution, 10 s in each measurement, 100 cnt

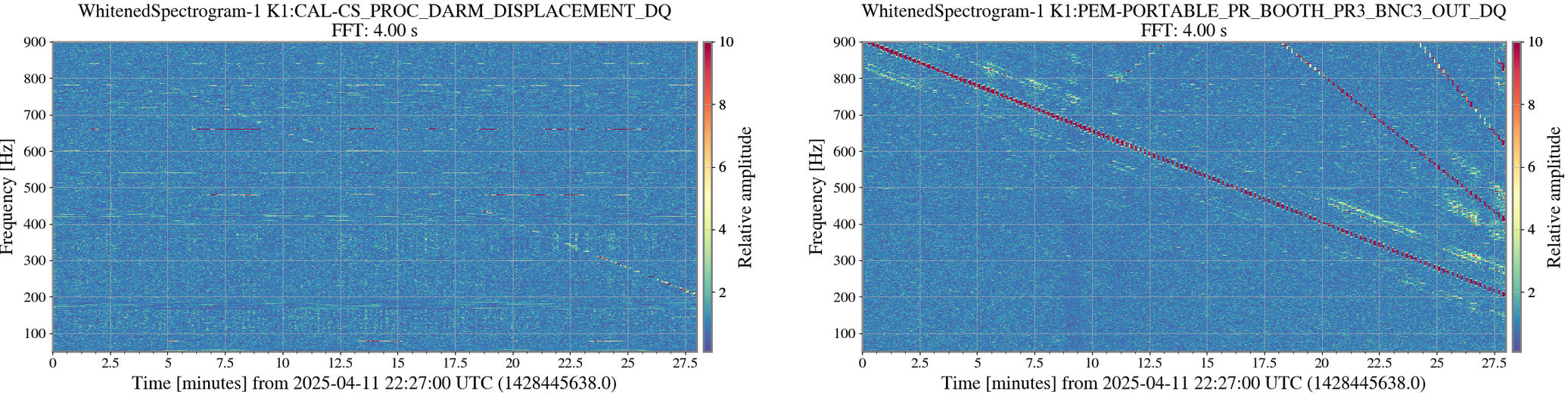

During the injection test of #3, the real time PC trouble happened
https://klog.icrr.u-tokyo.ac.jp/osl/?r=33375
But, we can see several peaks in DARM, so we need carefully check it
I analyzed the injection data of
2025/04/12 7:27:00 - Shaker injection test PRM #3
Excitation : K1:PEM-EXCITATION_MCF0_RACK_11_EXC
50 - 900 Hz , 5Hz resolution, 10 s in each measurement, 100 cnt
During the injection test of #3, the real time PC trouble happened
