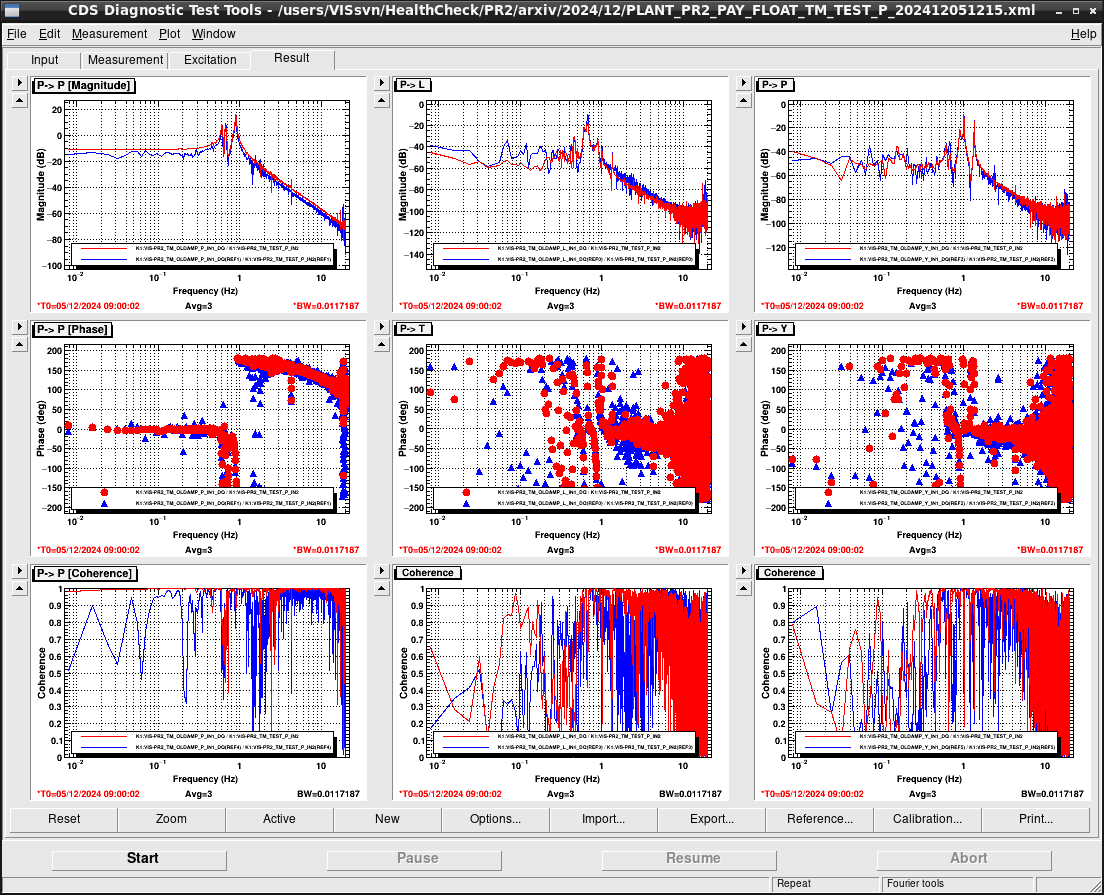

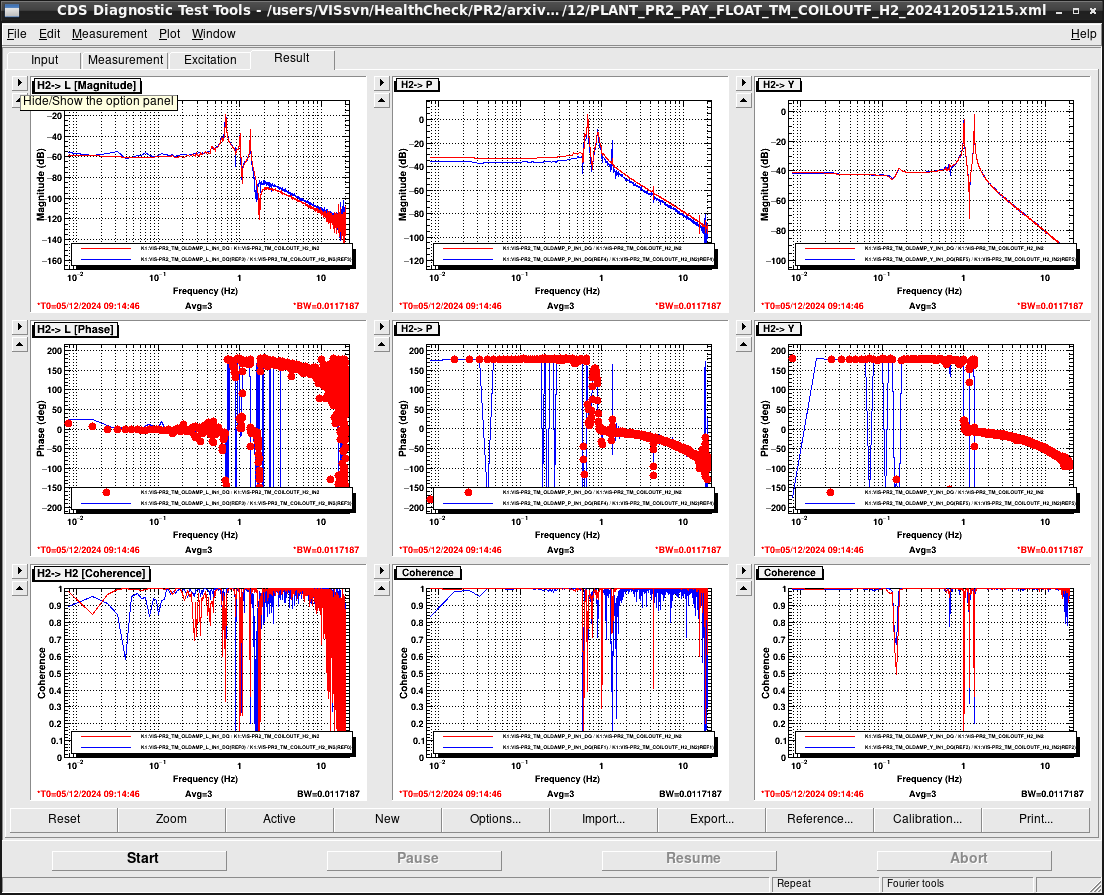

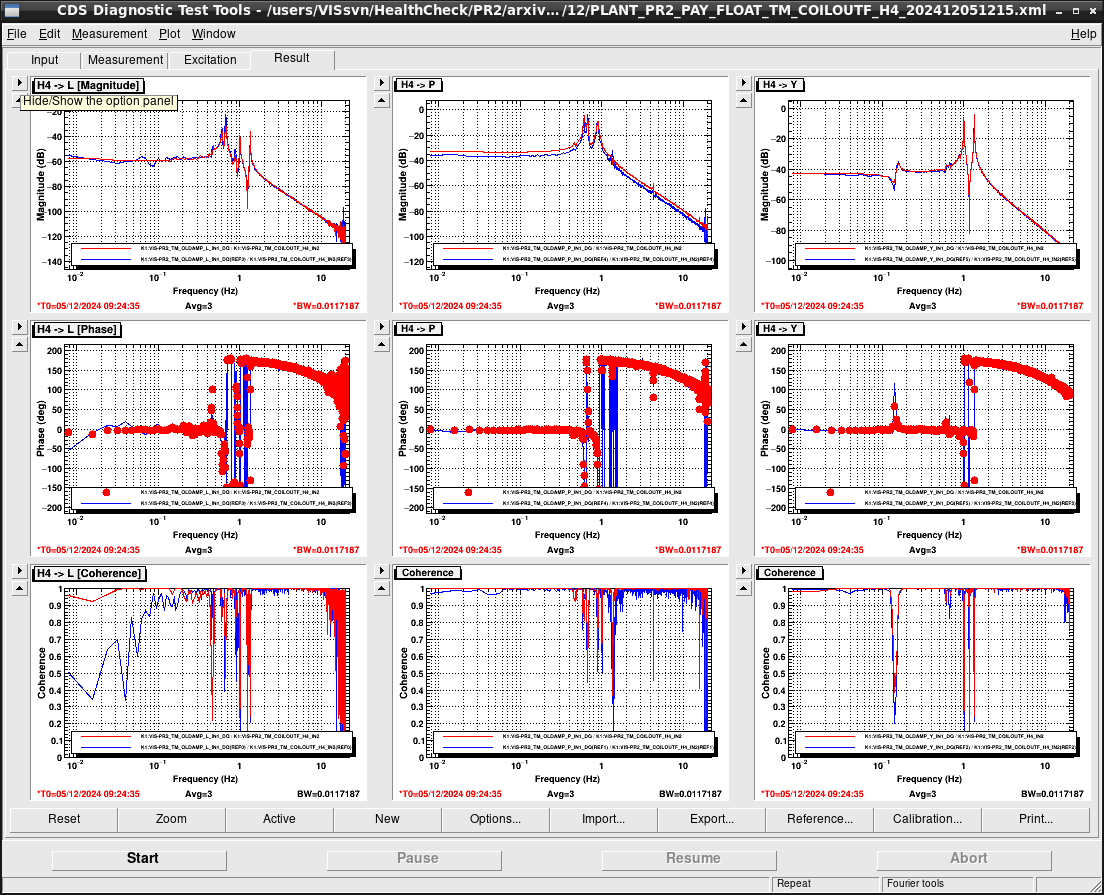

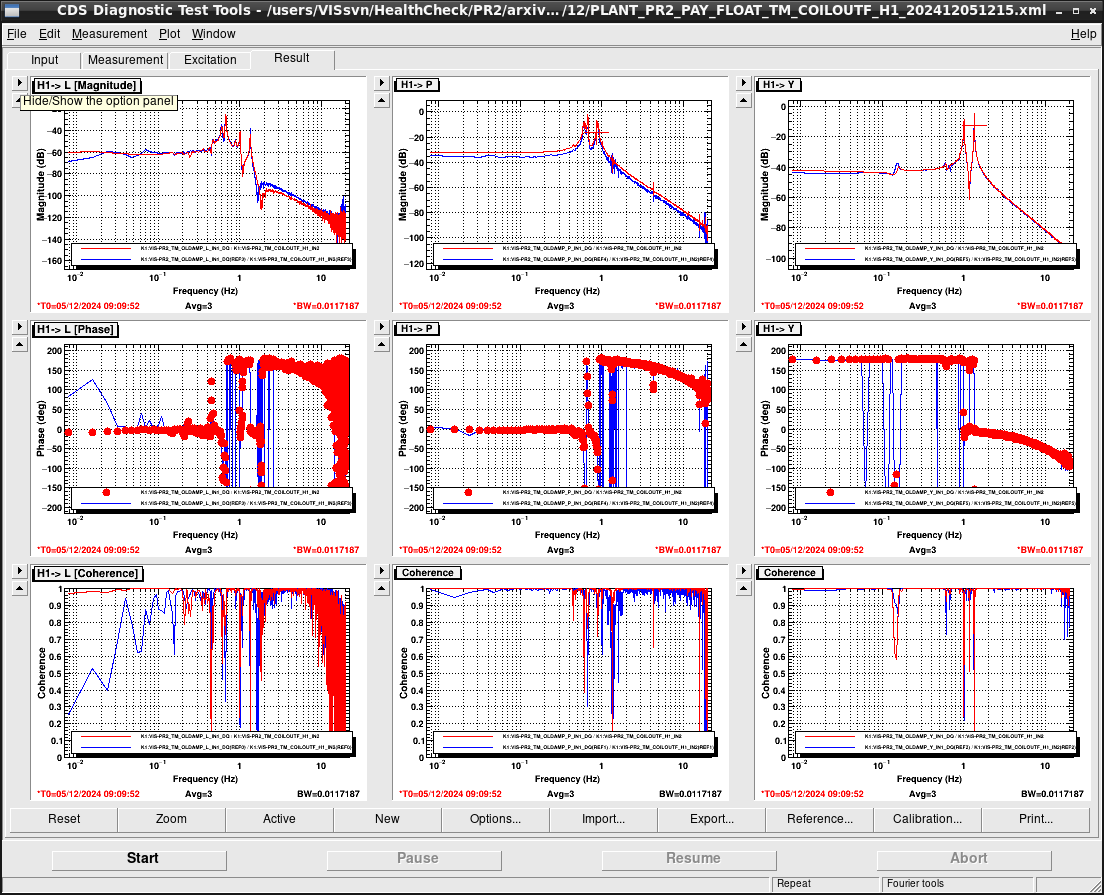

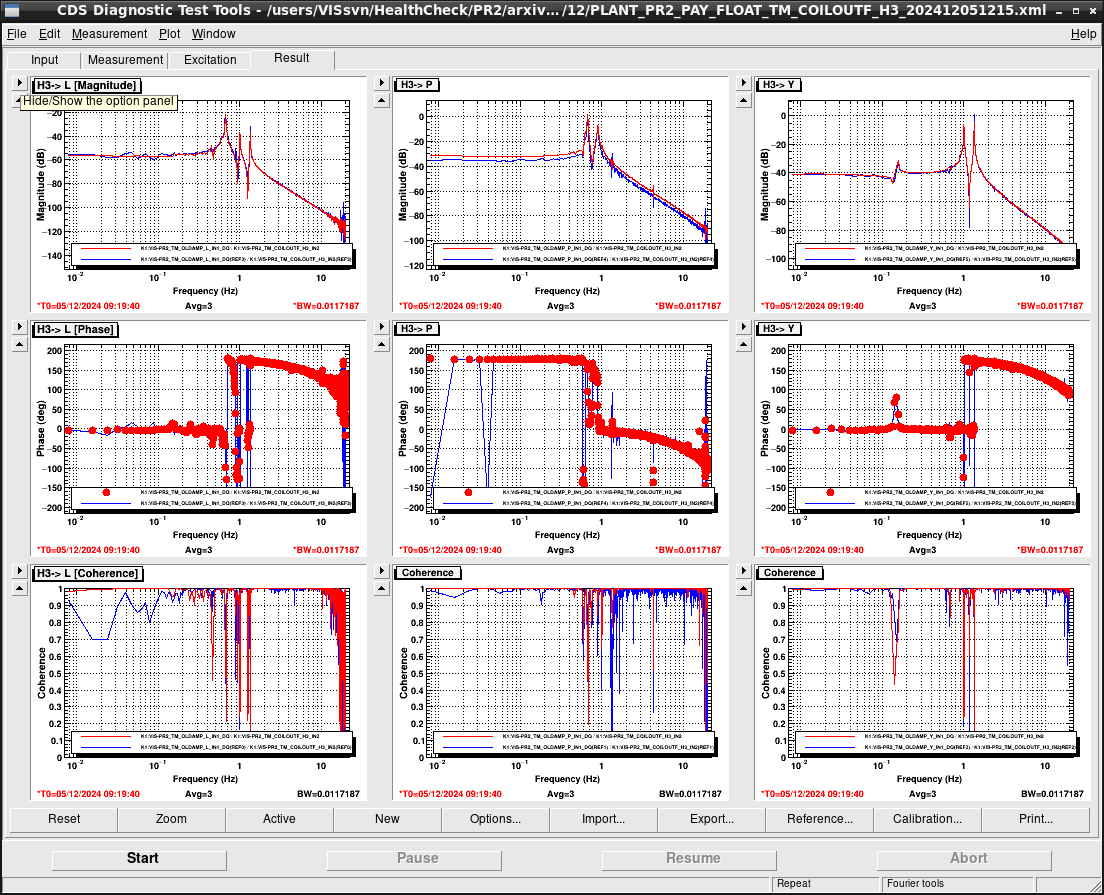

- TM H{1,2,3,4} -> P amplitude became larger
That may come from the oplev position
TM_OPLEV_TILT_VER INMON -0.55(blue health check) -> 0.16(red health check)
TM_OPLEV_TILT_HOR_INMON -0.3 -> -0.18

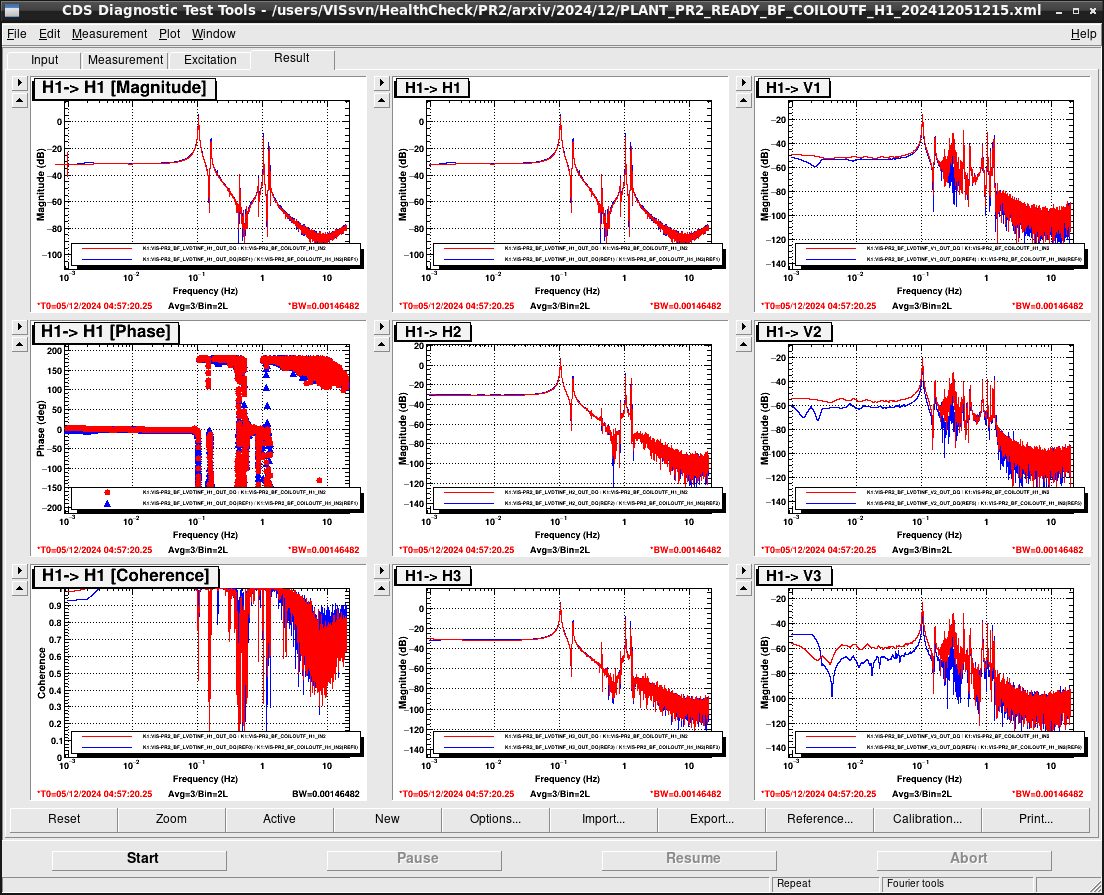

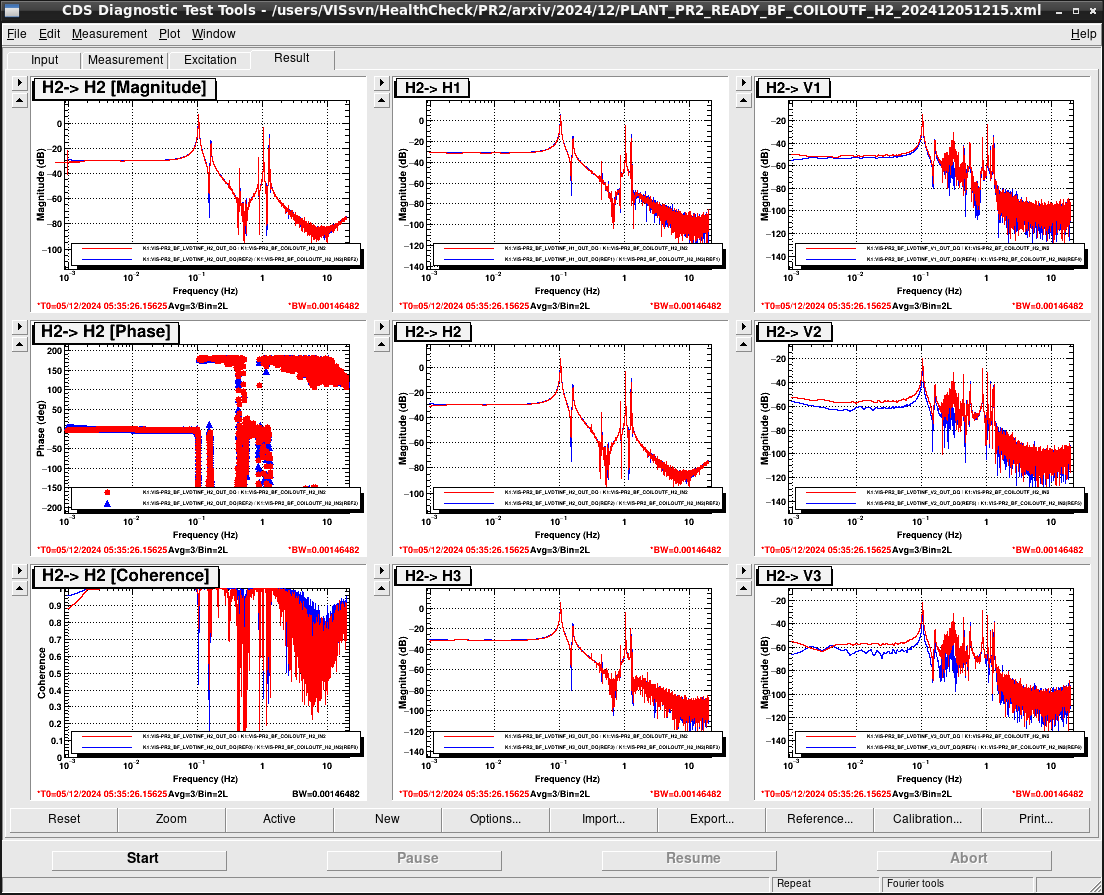

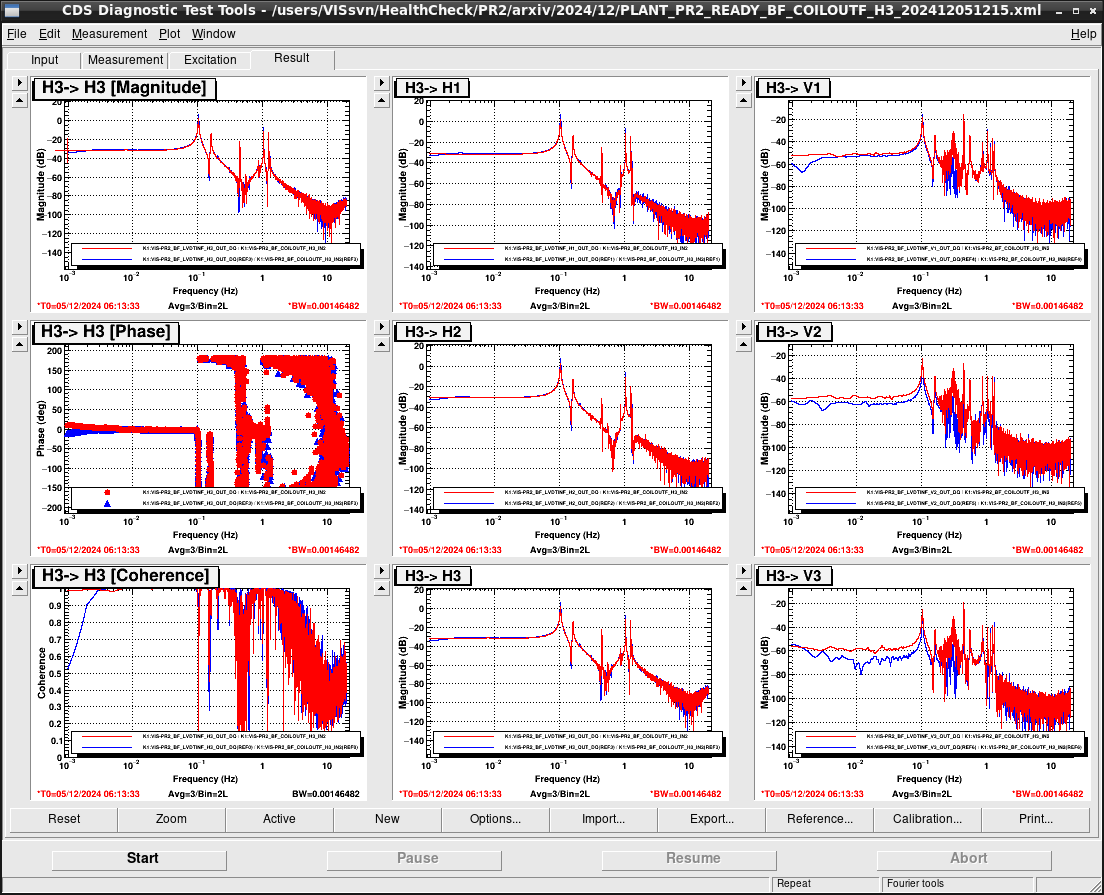

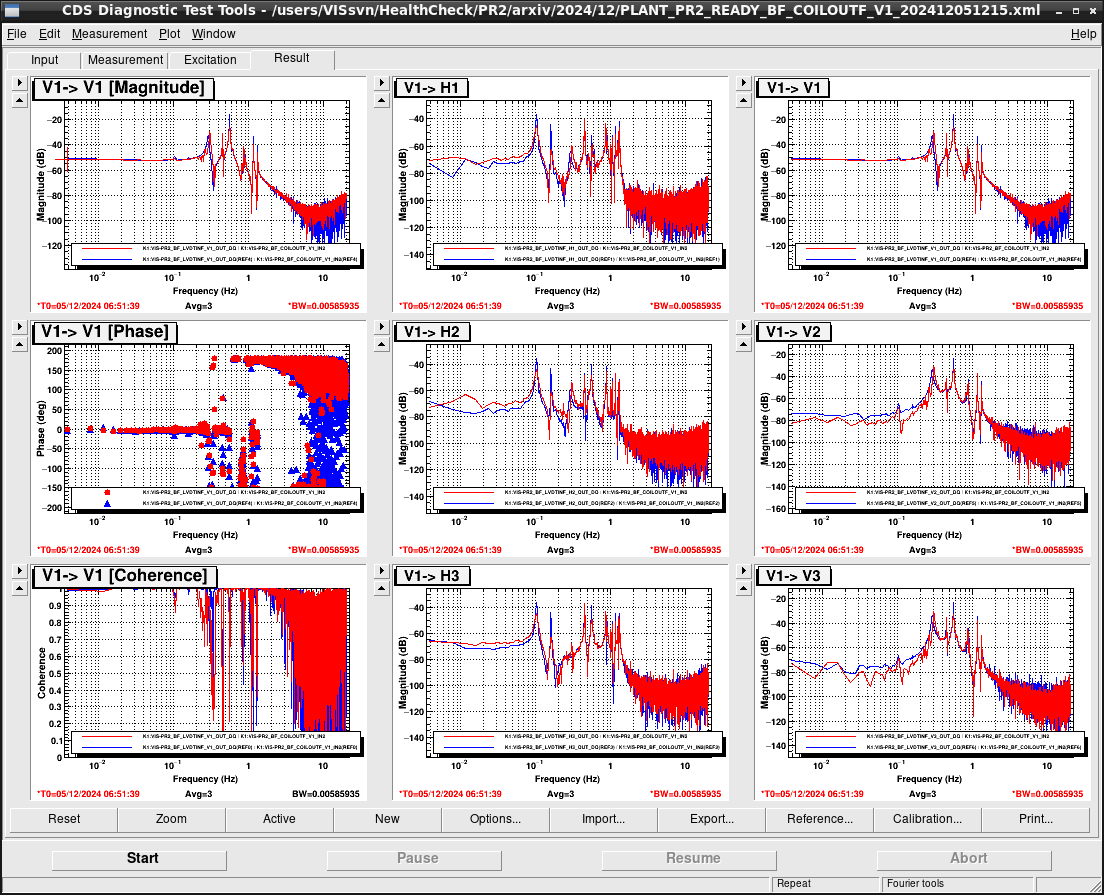

- PLANT_PR2_READY_BF_COILOUTF_H{1,2,3}.xml
Similarly with klog31837, there are several excess in ~100 mHz region

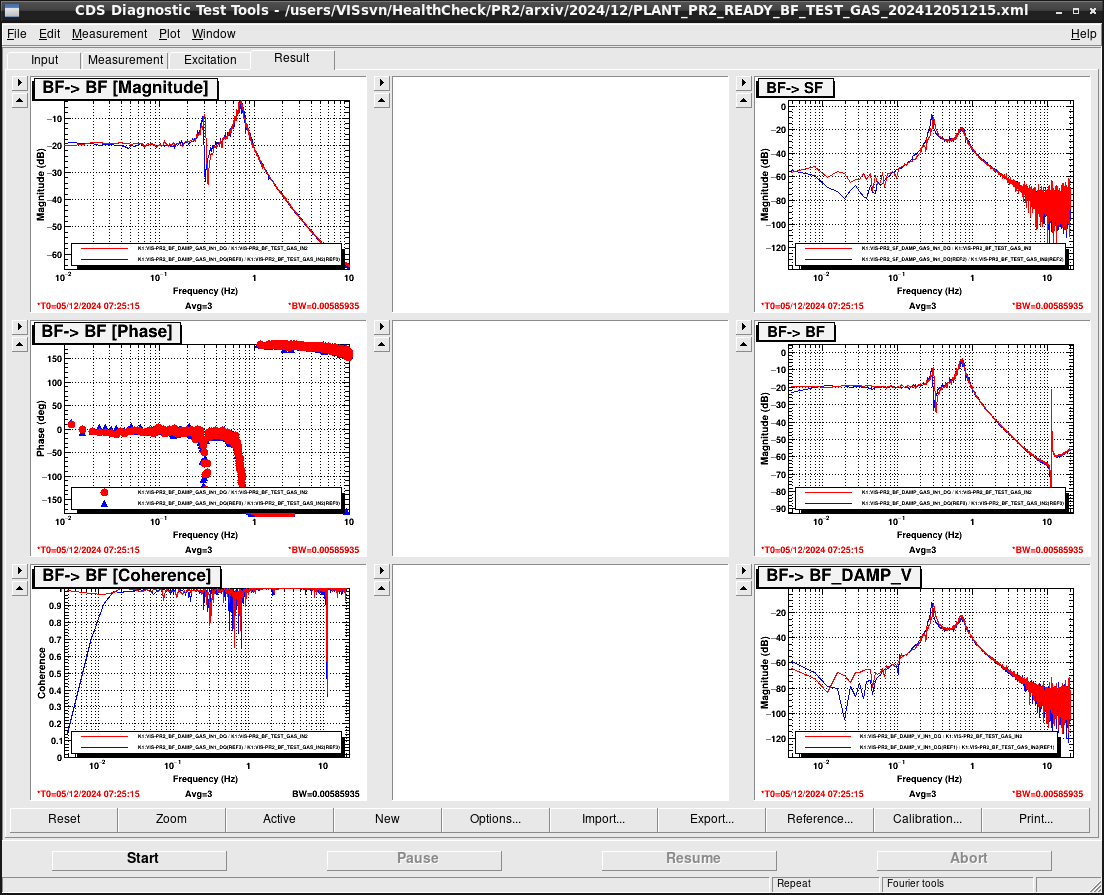

- BF->BF, SF->SF
The peak frequency around 0.3 Hz was changed from last measurement
Ushiba-san mentioned the drift of the temperature may affect the peak frequency, so I checked and temperature around PR2 BOOTH changed from 24.6 deg to 22.6 deg (About 2 deg. change)

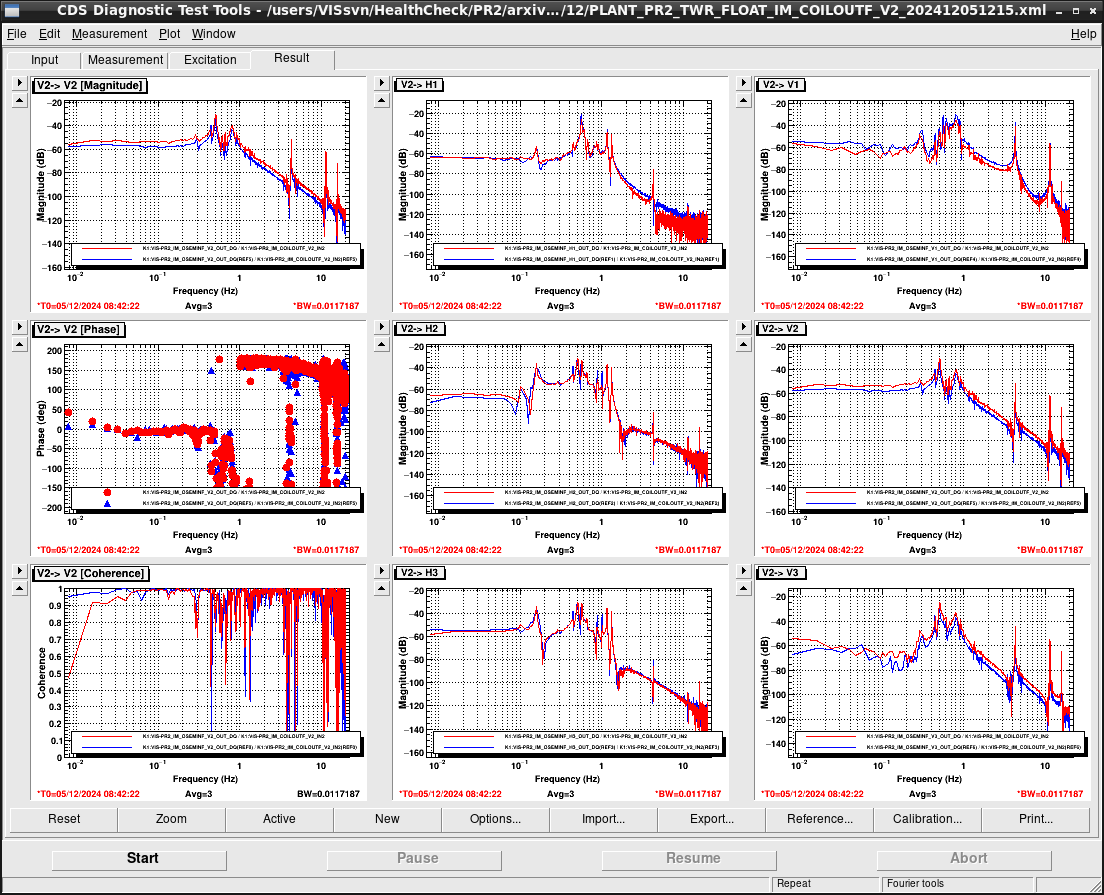

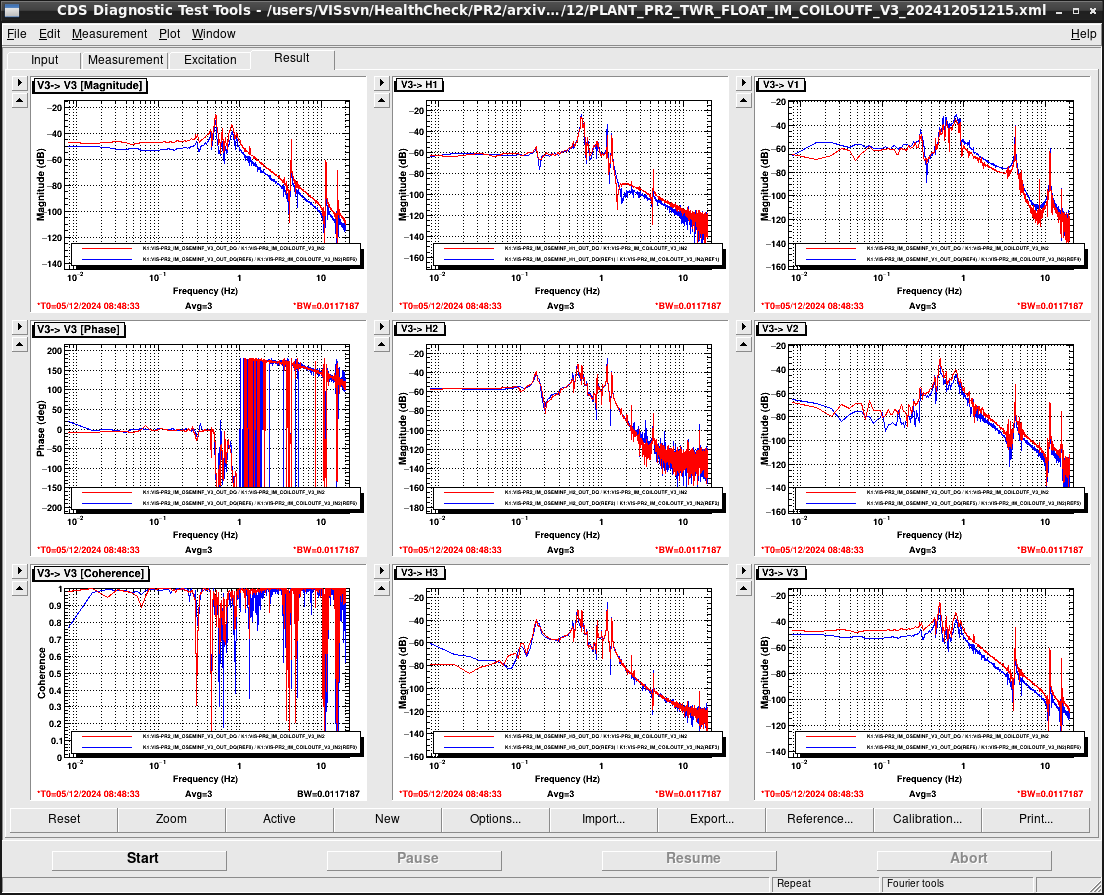

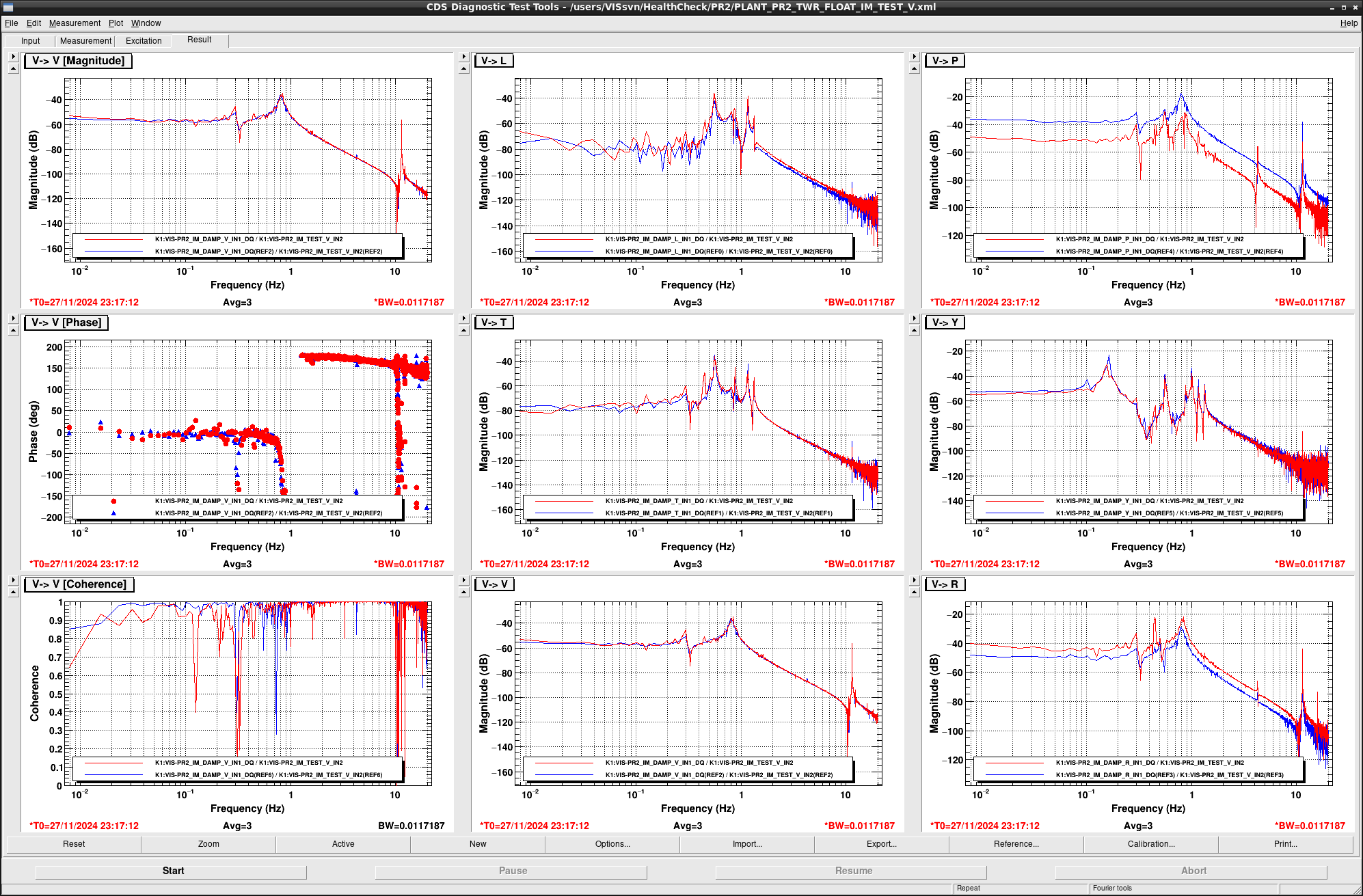

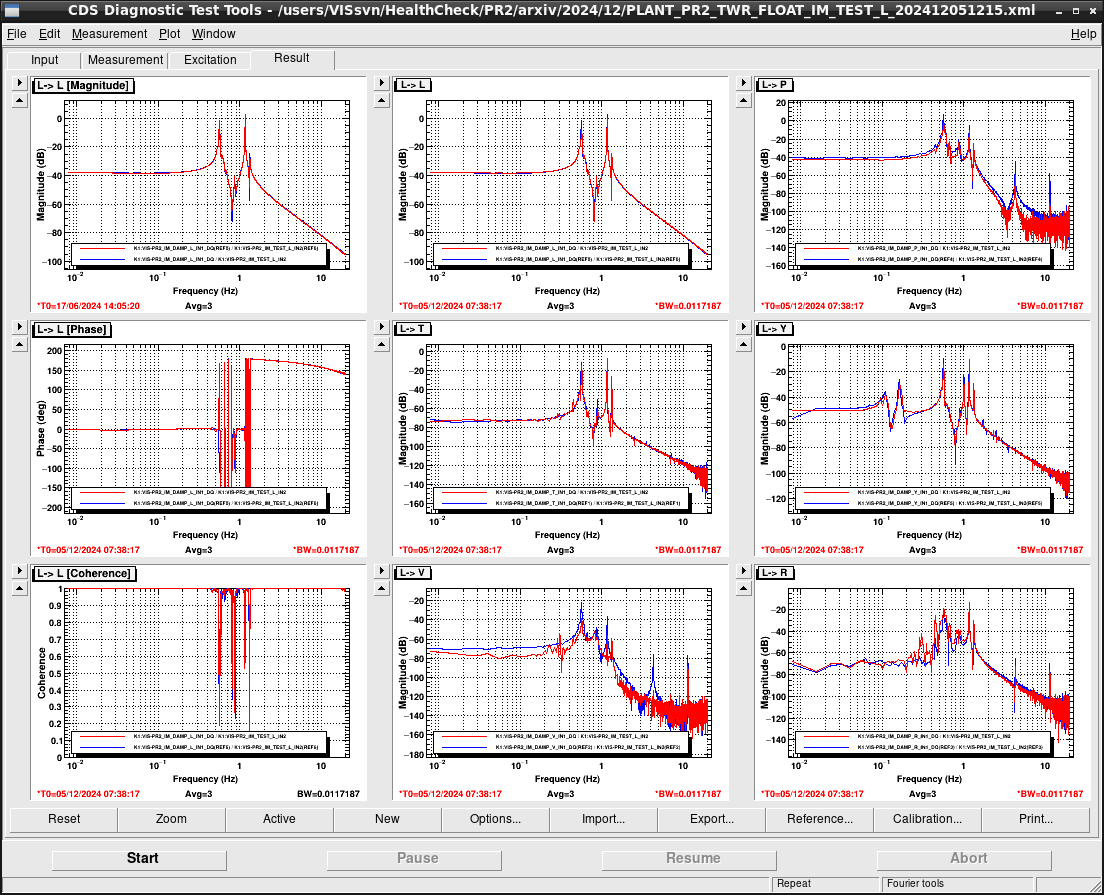

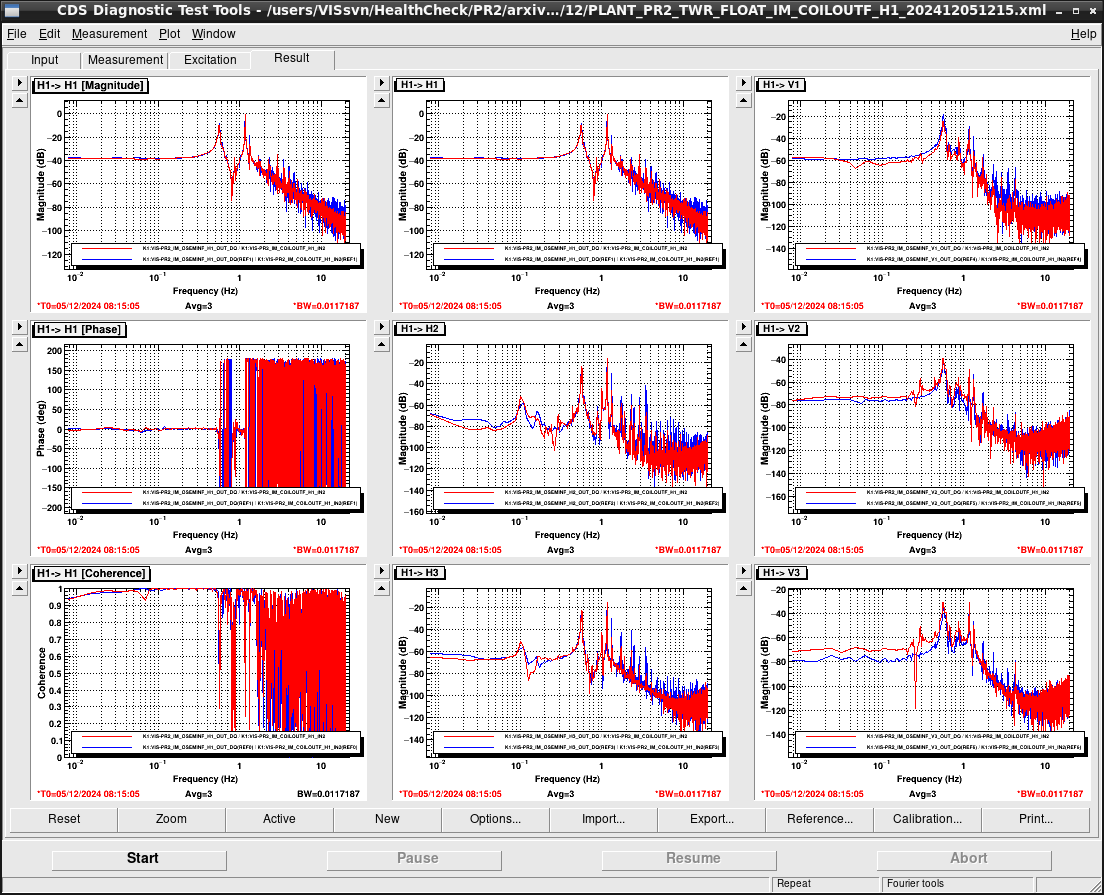

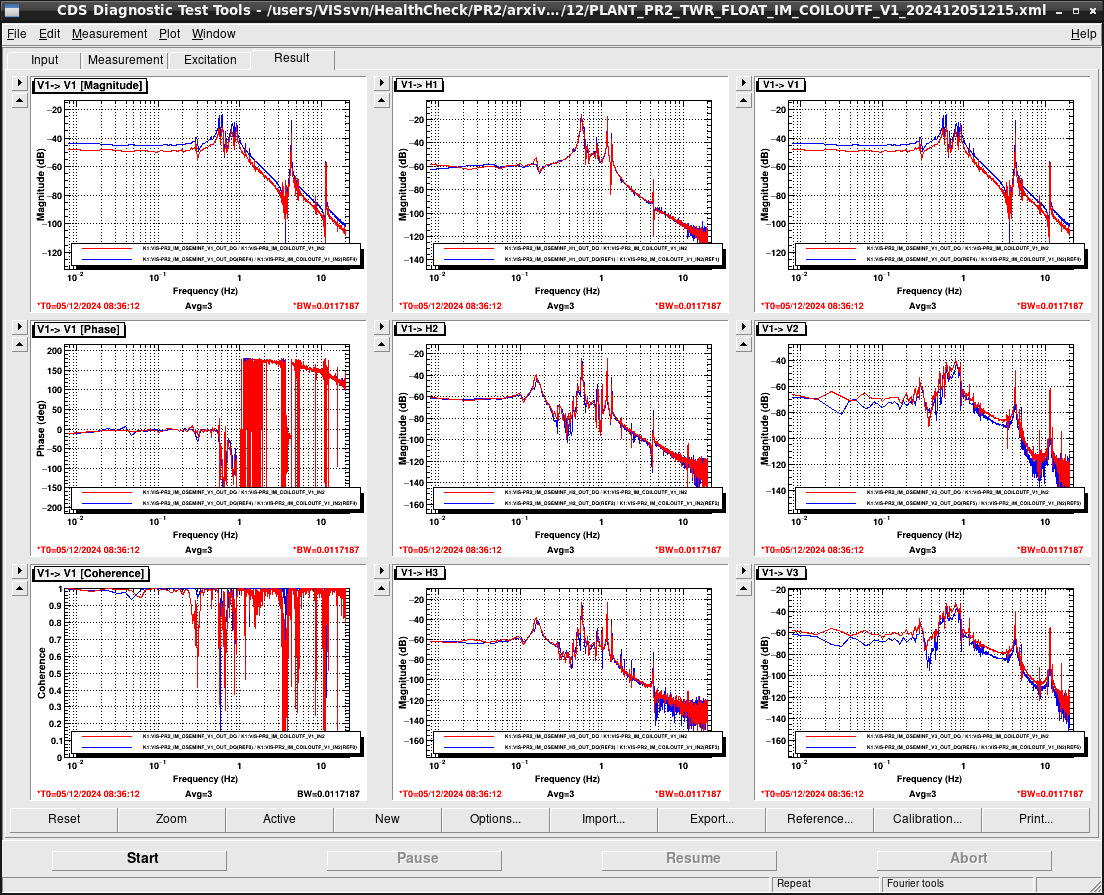

- IM V1->V1, V2->V2, V3->V3
The amplitude of the V{1,2,3} -> V{1,2,3} in IM changed.
IM_OSEMINF_V1 4780(blue) -> 6940(red)
IM_OSEMINF_V2 6270 -> 6210
IM_OSEMINF_V3 7120 -> 6600
IM_OSEMINF_H1 6010 -> 6220
IM_OSEMINF_H2 5250 -> 5230
IM_OSEMINF_H3 5240 -> 5200
After replacing the function generator for the LVDT driver, the health check was performed. The measured TFs were almost the same as the last measurement.

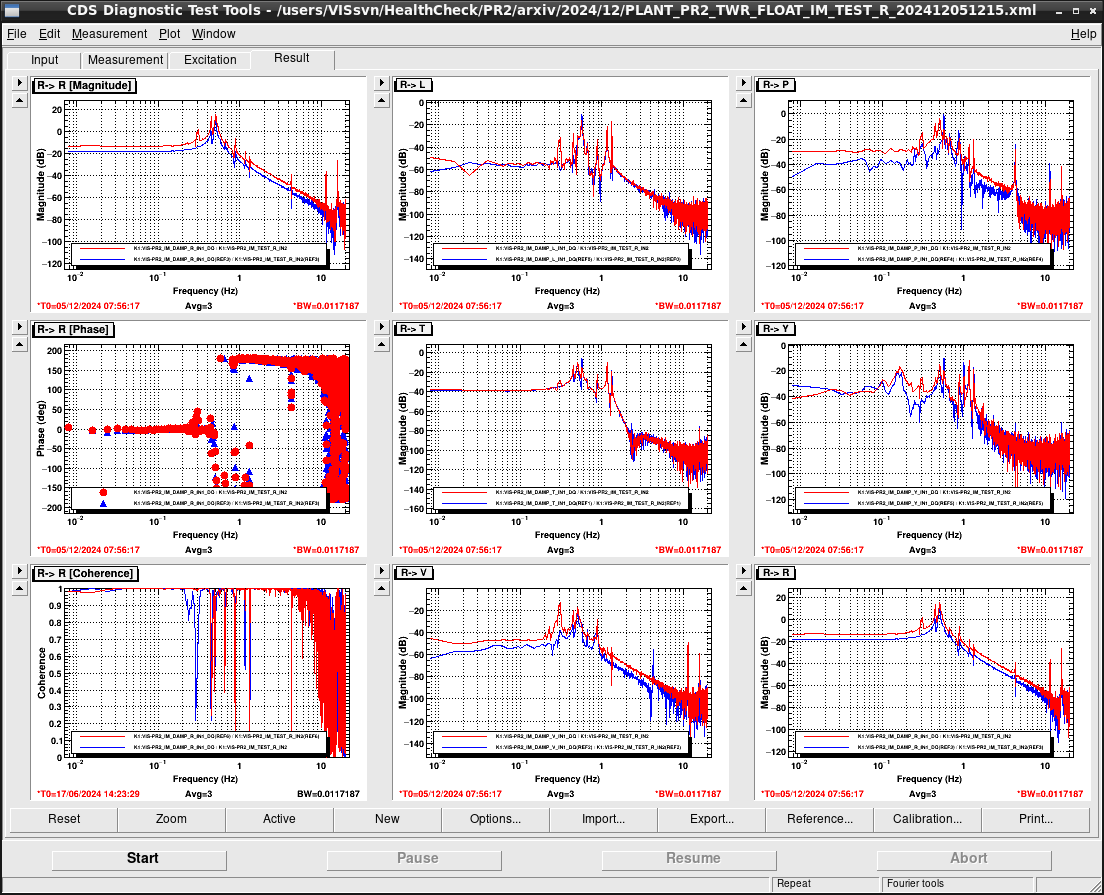

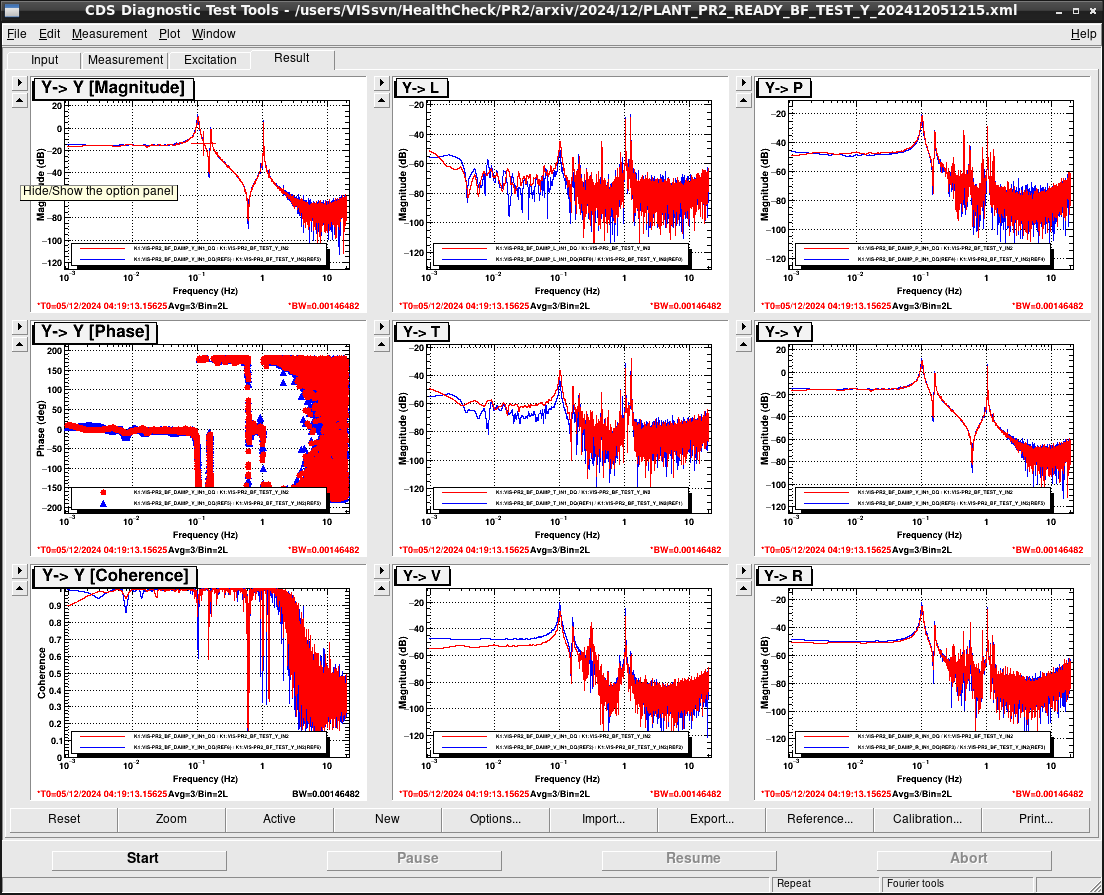

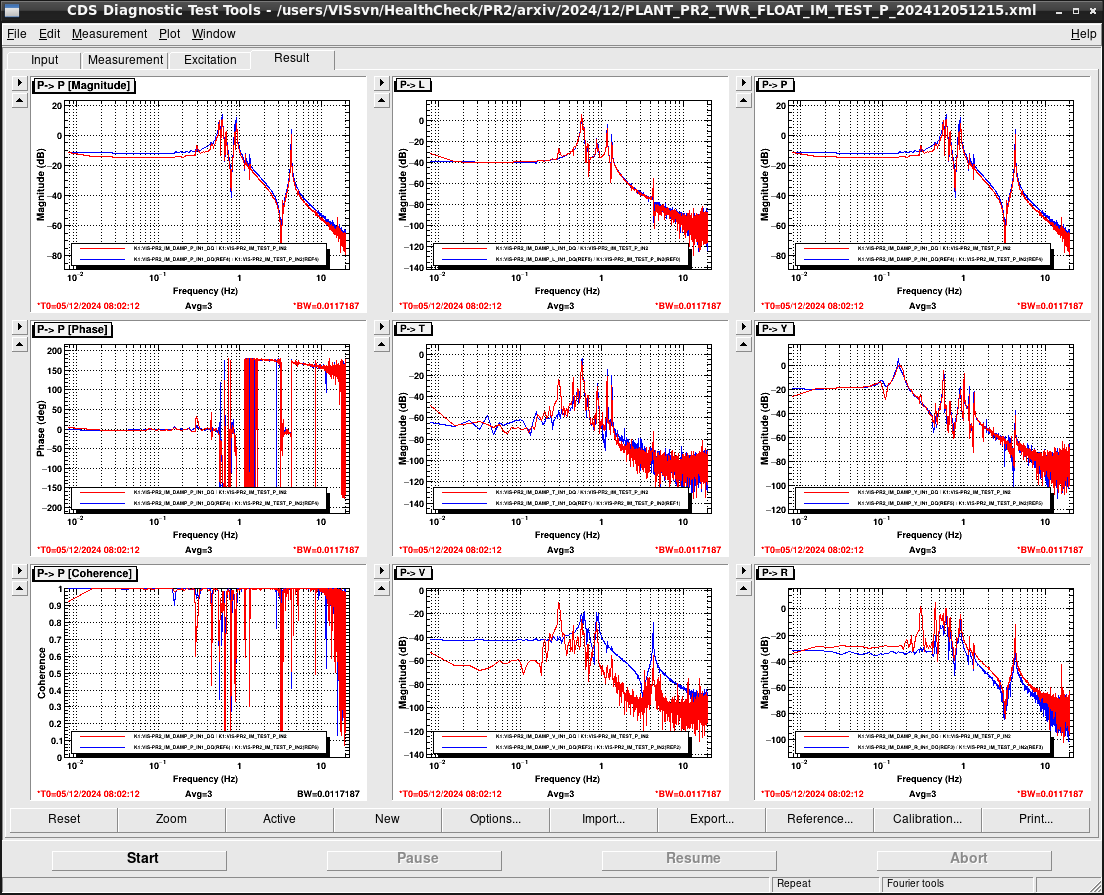

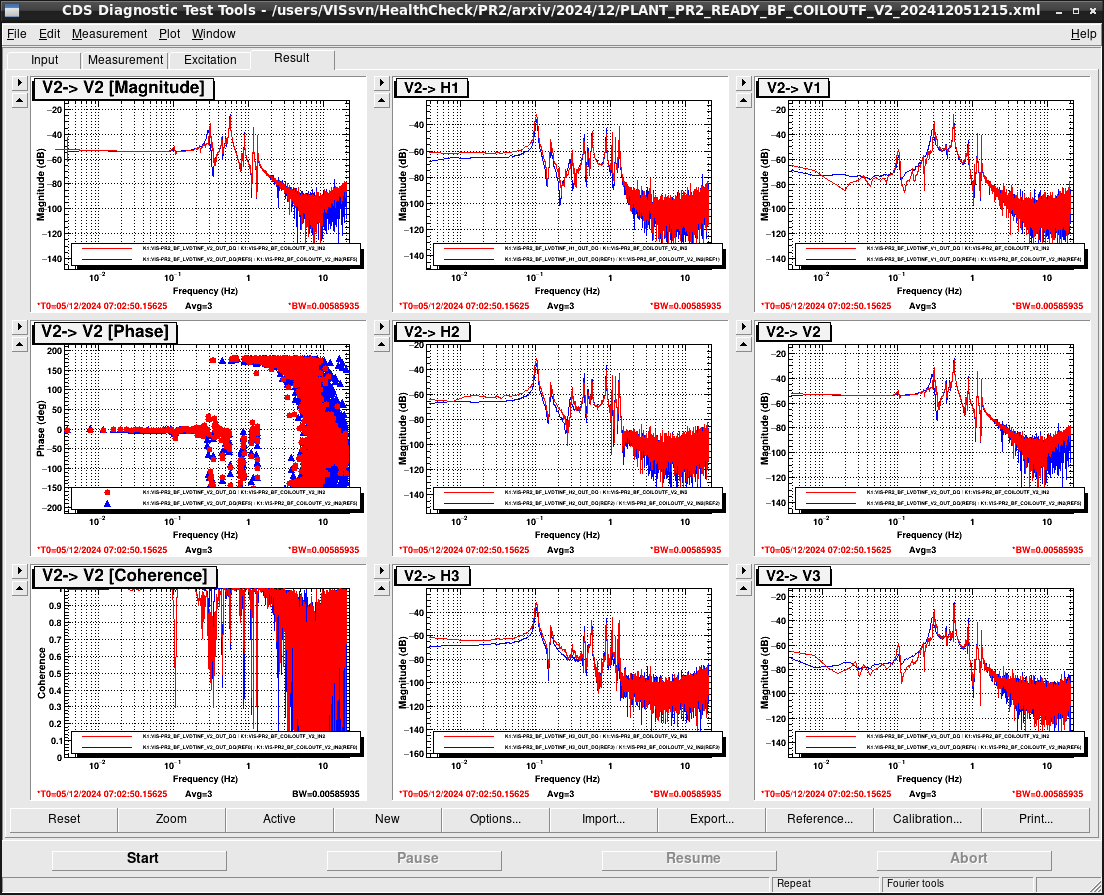

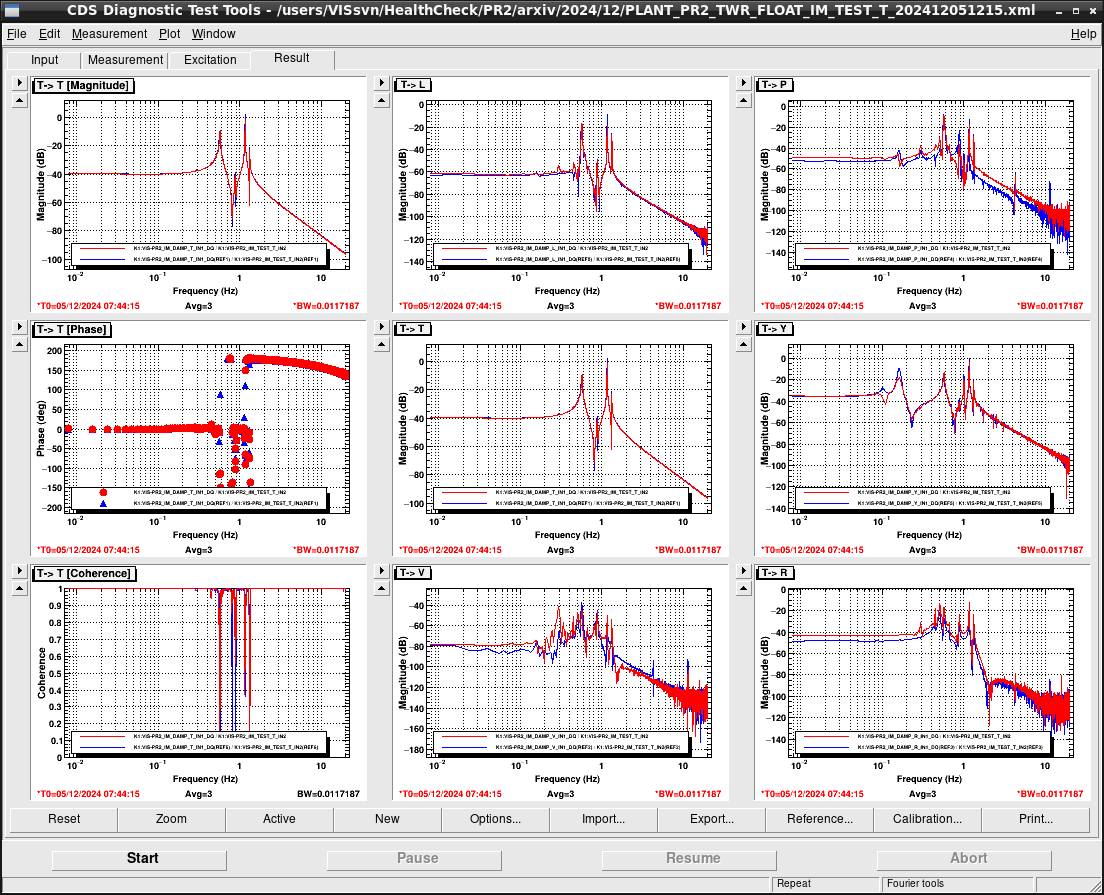

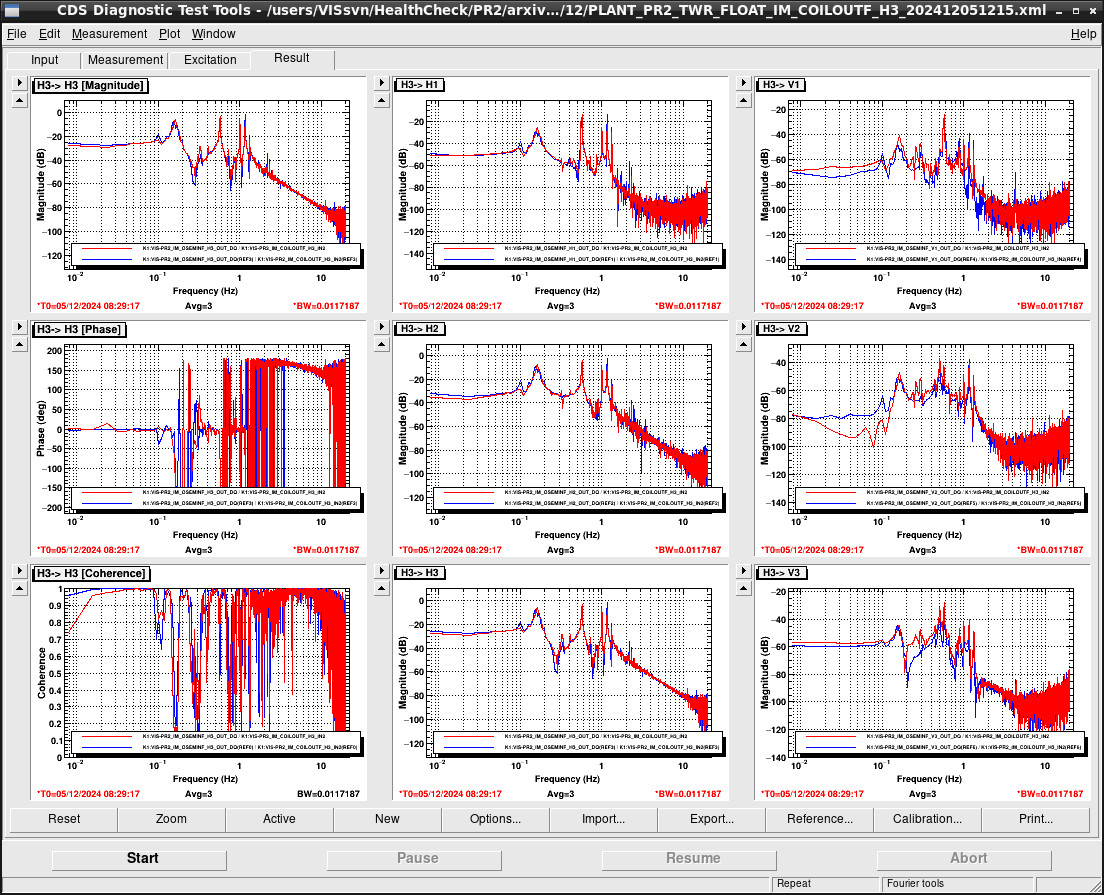

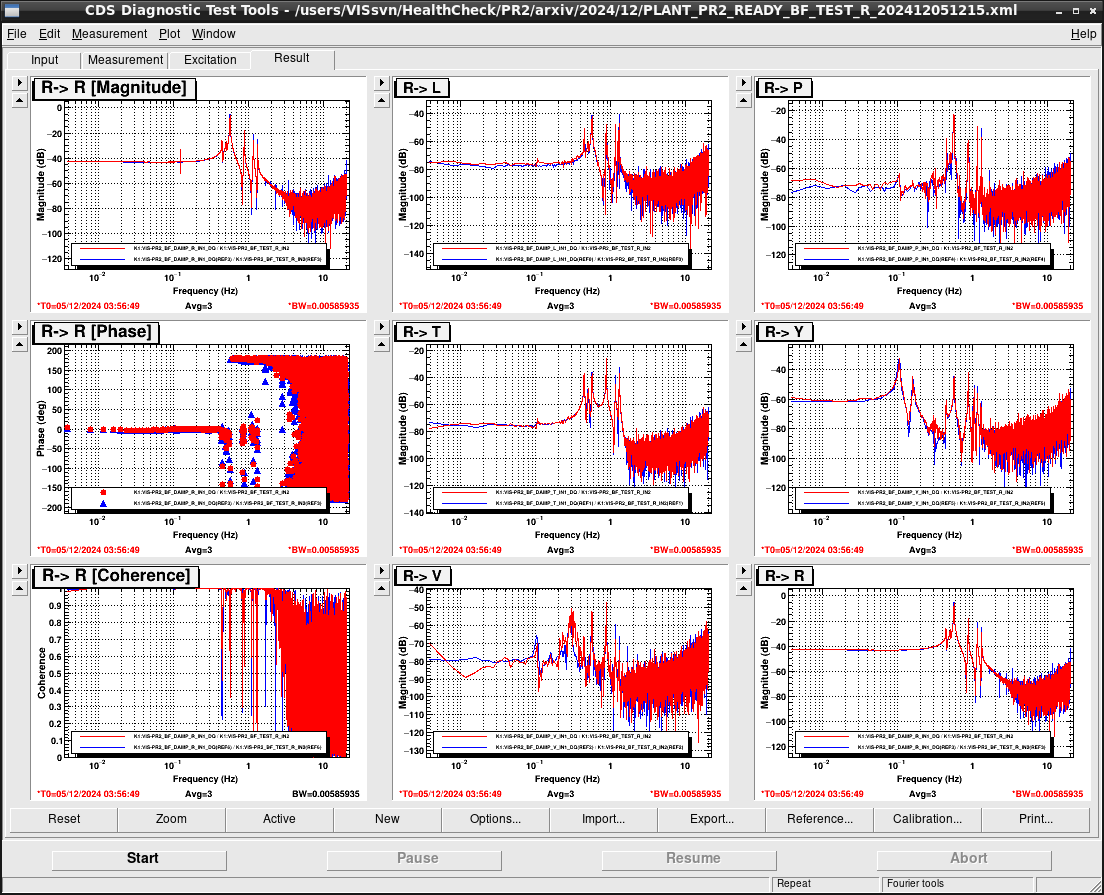

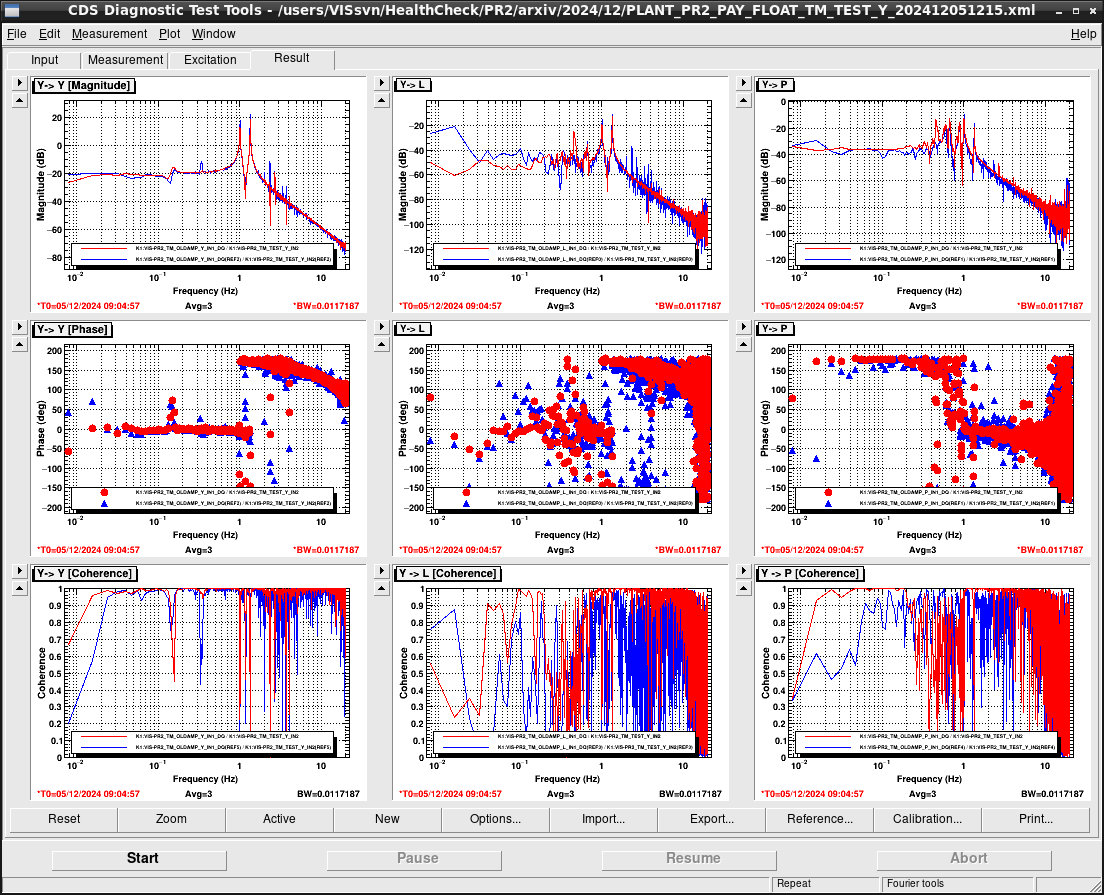

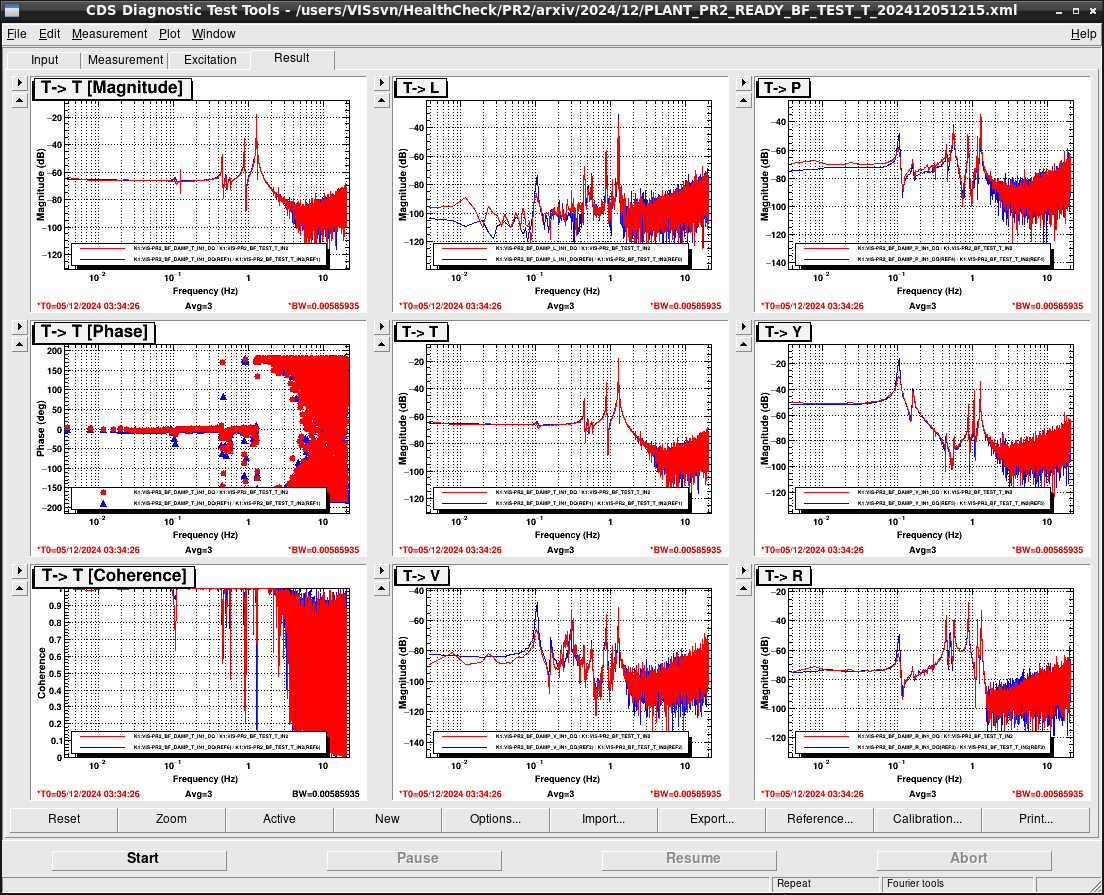

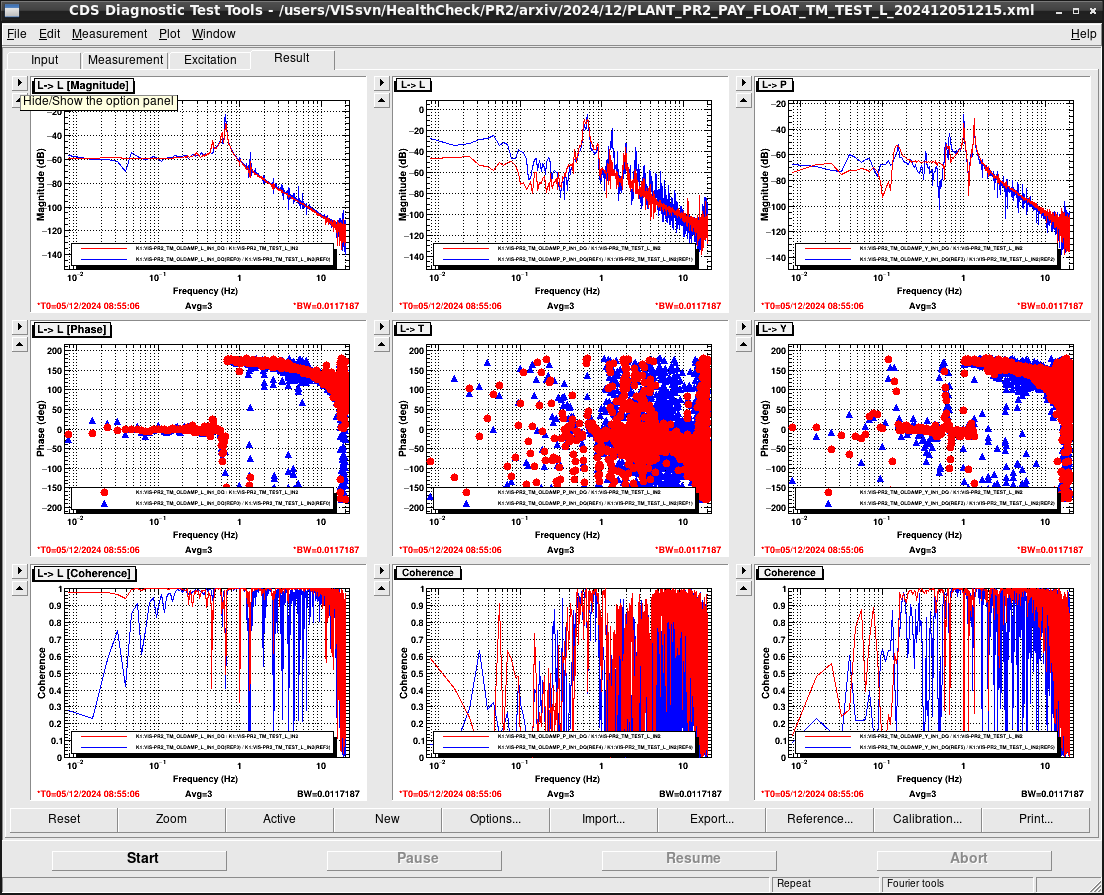

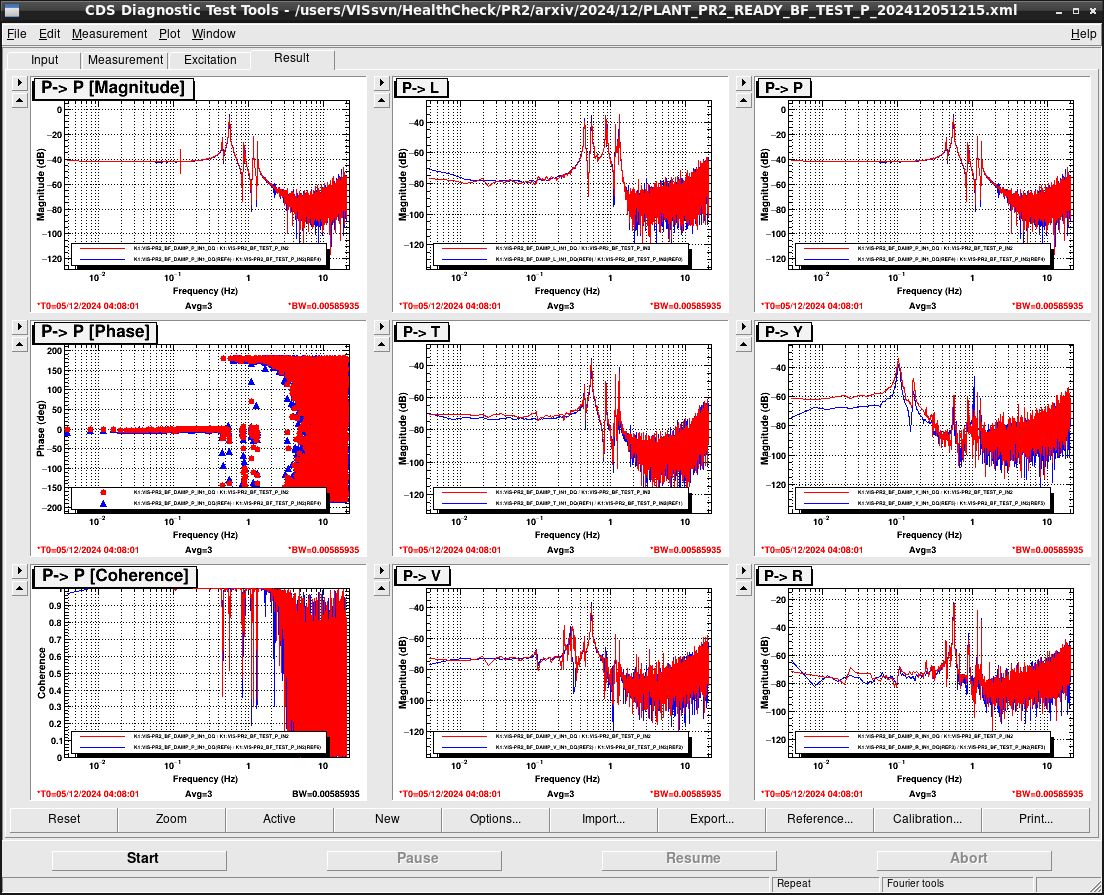

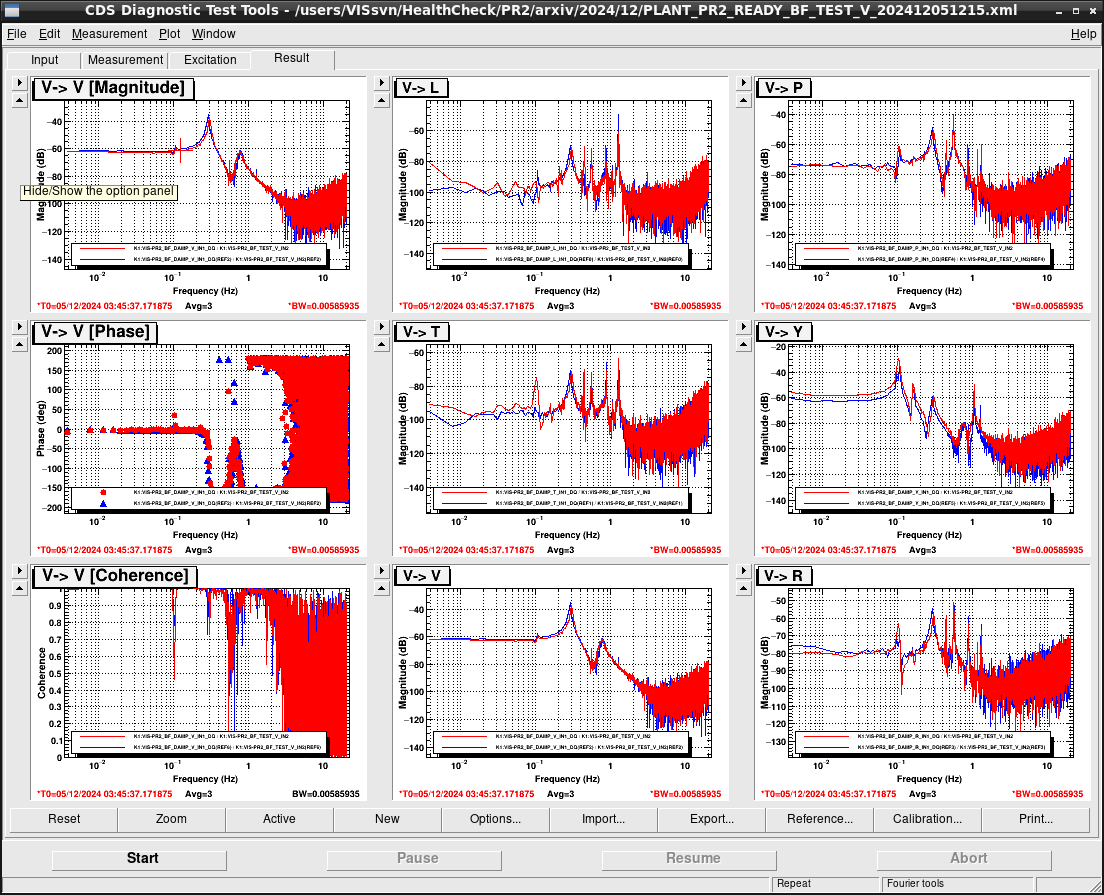

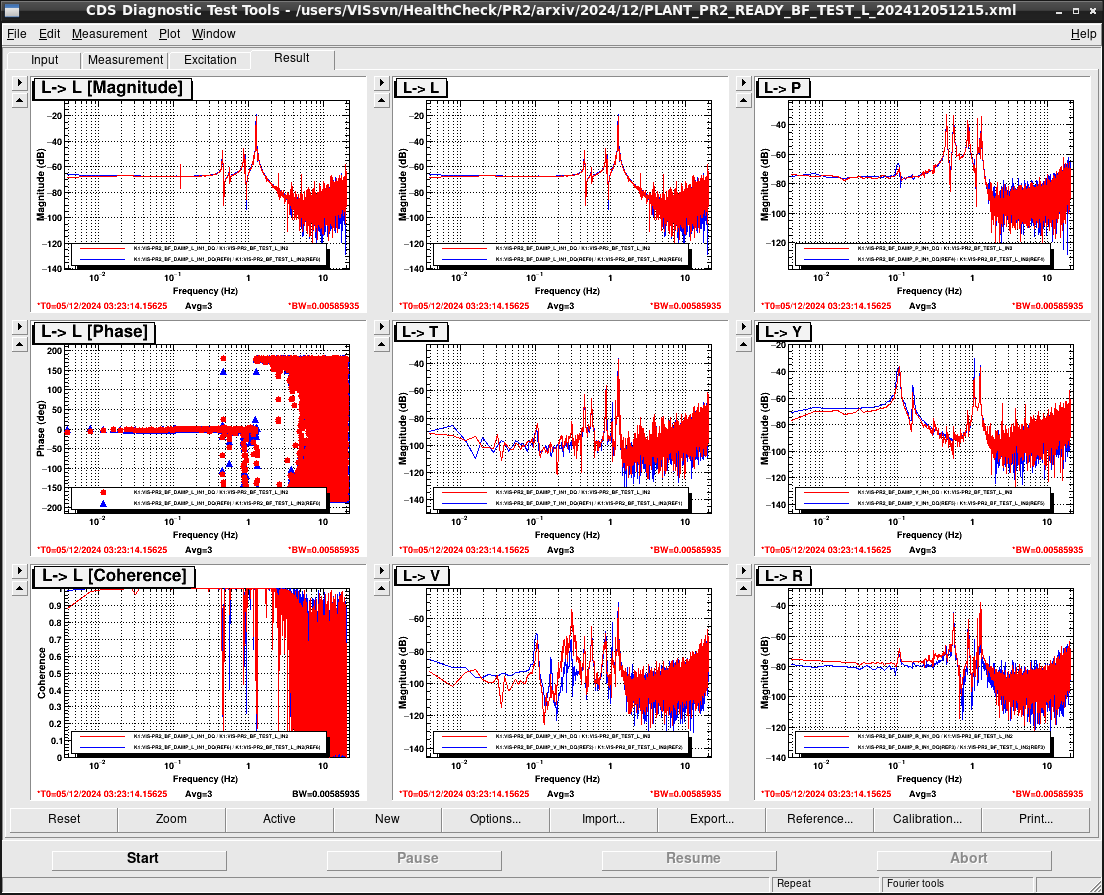

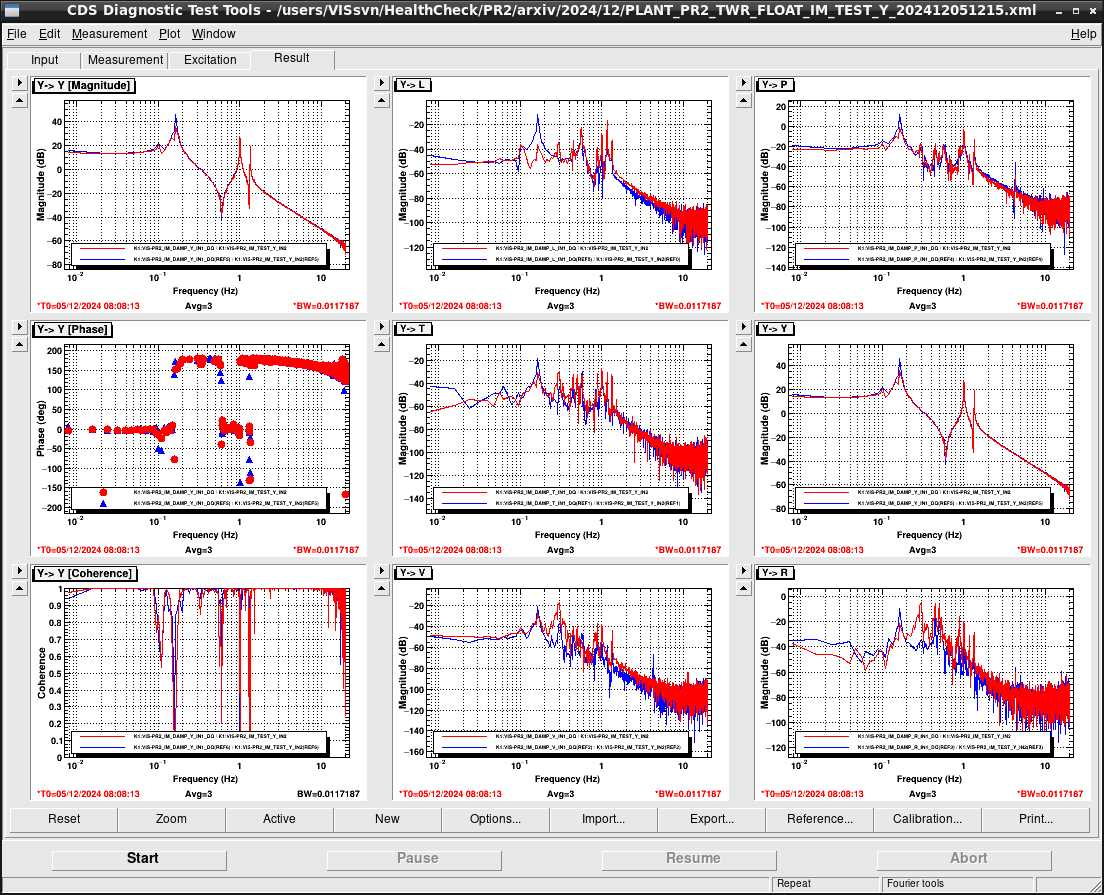

I checked the TF measurement results for the health check (fig1 - fig33).
All TF seems healthy.

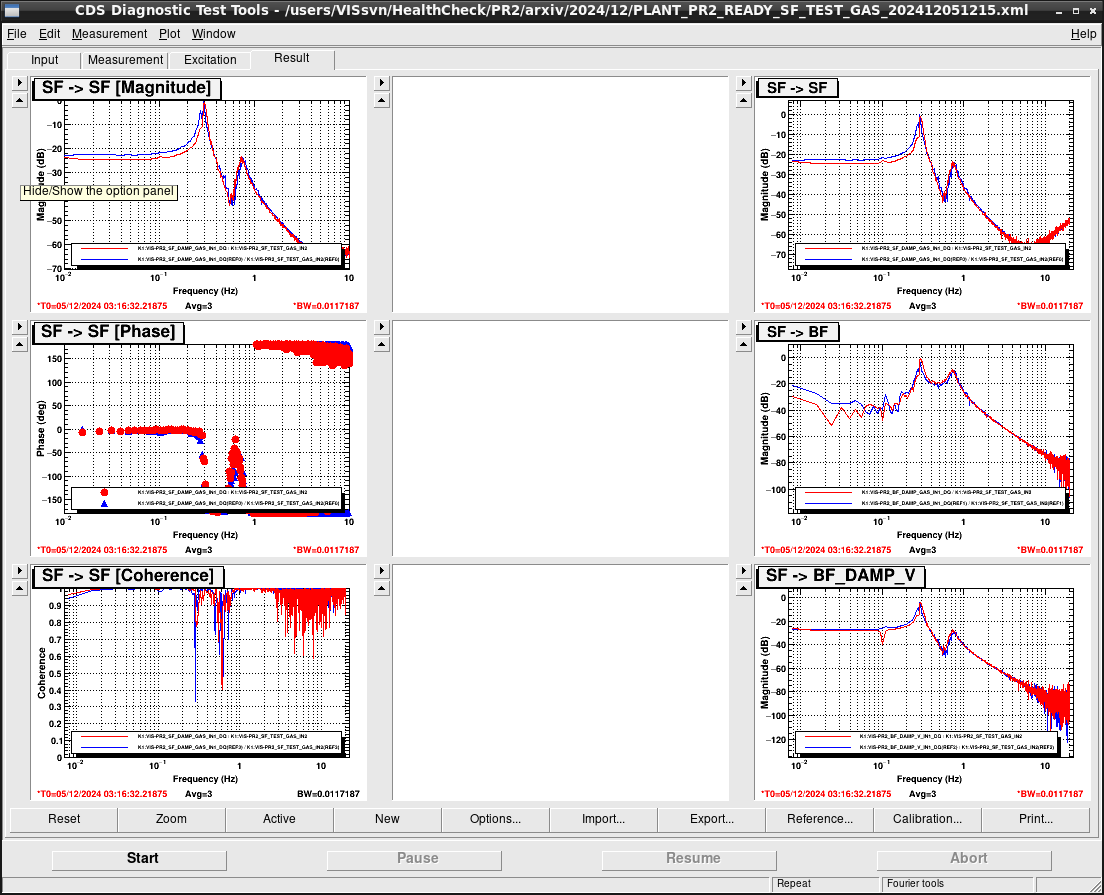

Athough resonant frequency of SF GAS TF measurement was shifted from the reference, this can be already seen in the previous health check results.
So, this result may not be so problematic
