MIF (General)
takaaki.yokozawa - 7:55 Thursday 28 September 2023 (26939) Print this report
Finesse measurement Yarm 230928
ATE : 2023/09/27 22:46 UTC
ARM : Y
TEMP ITM : 85.3
TEMP ETM : 84.8
NUM : 10
IFO REFL HWP : 168.0
PSL HWP : 20.0
IMC POWER : 2.4
VALUE : 1264.3
ERROR : 15.5

Measured data is stored to /users/Commissioning/data/Finesse/Yarm/20230927-224623

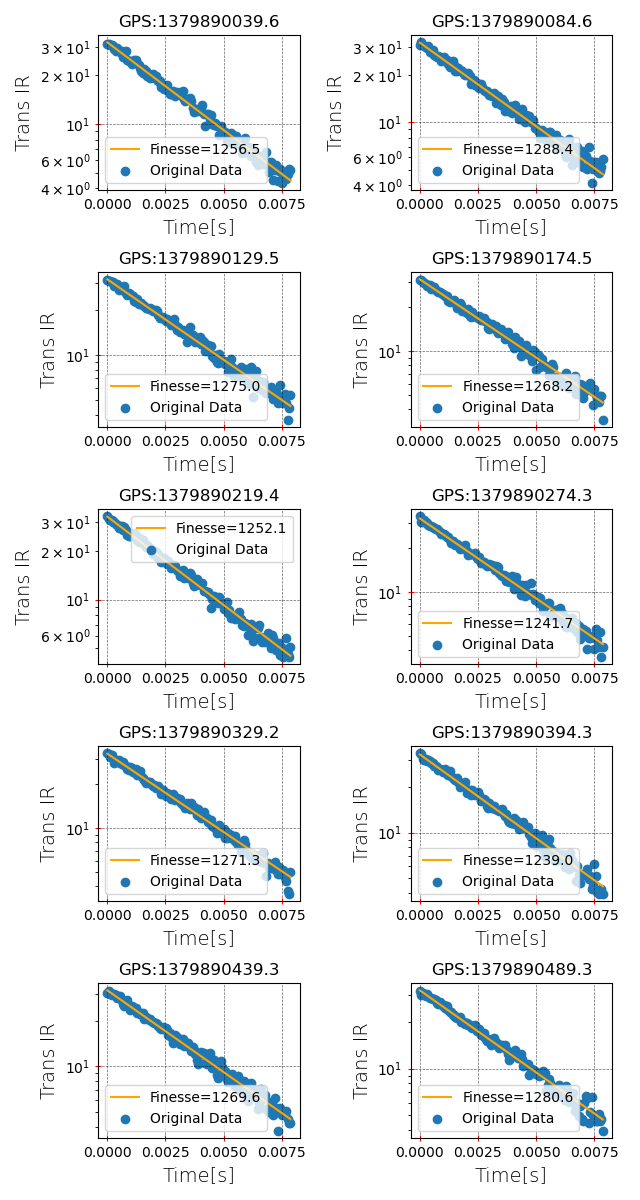

Images attached to this report
Comments to this report:
takafumi.ushiba - 18:38 Thursday 28 September 2023 (26966) Print this report

I measured the Y arm finesse in the different alignments: one is the alignment recorded during PRFPMI lock yesterday and the other is the one that the beam on both ITM and ETM is roughtly centered by using camera.
Figure 1 shows the decay and fiting curve when the mirror alignment was former.
Figure 2 shows the decay and fiting curve when the mirror alignment was latter.

Though there are strange values in both measurement, the finesse value with the latter alignment seems slightly better.
During the measurement, I checked the beam spot on ITMY and it seems shifted several cm horizontally, so this finesse different might come from the clipping of the beam by recoil mass but I'm not so sure.

Anyway, the finesse value measured with the latter alignment is over 1300, finesse degradation seems not happened.

Note:

Somehow, fitting sometimes failed and finese value becomes negative (and absolute value is very large).
So, it might be better to set some limit so that finesse becomes positive.

Images attached to this comment
