[Ushiba, Yuzu]

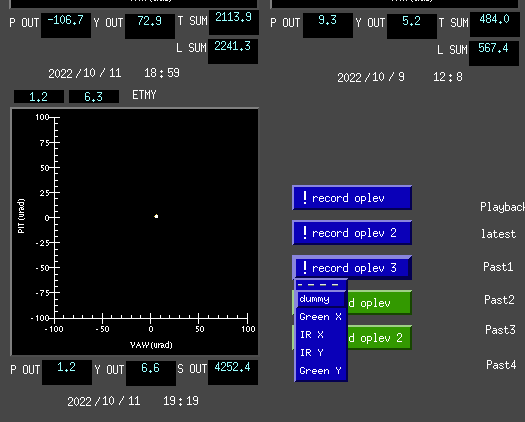

I updated the script `/users/Commissioning/scripts/record_good_oplev.py` to add the option for PRFPMI and FPMI. About the FPMI, you can launch the script from ALL_OPLEVS medm screen.
Today, we tested this script and confirmed that it works well for FPMI and for PRFPMI (tested only for PRM mirror). For usage, see the help.
----
controls@k1ctr7:/users/Commissioning/scripts$ python3 ./record_good_oplev.py --help
usage: record_good_oplev.py [-h] -i {PRFPMI,FPMI} -o OPTIC [OPTIC ...]
record good oplev values when taking initial alignment.
optional arguments:
-h, --help show this help message and exit
-i {PRFPMI,FPMI}, --configuration {PRFPMI,FPMI}
name of interferometer configuration
-o OPTIC [OPTIC ...], --optic OPTIC [OPTIC ...]
name of mirror name to record good oplev
-----
- Concrete usage
- To reset ASC for Green X and FPMI
- /users/Commissioning/scripts/record_good_oplev.py -i FPMI -o PR3 ITMX ETMY
- the user can speficy multiple optics at once, such as `-o PR3 ITMX ETMX` (separated by the space).
- the user usually use the script from medm screen. so you don't need to remember this.
- The channels name which store good oplev values were changed from previous. see klog#23191.
- Channel for FPMI is `K1:VIS-(SUS NAME)_FPMI_GOOD_OPLEV_{PIT,YAW}.`
- Channel for PRFPMI is `K1:VIS-(SUS NAME)_PRFPMI_GOOD_OPLEV_{PIT,YAW}.`
