All turbo pumps may work well (NORM : 27000rpm), and LED at turbo pump was no problem.

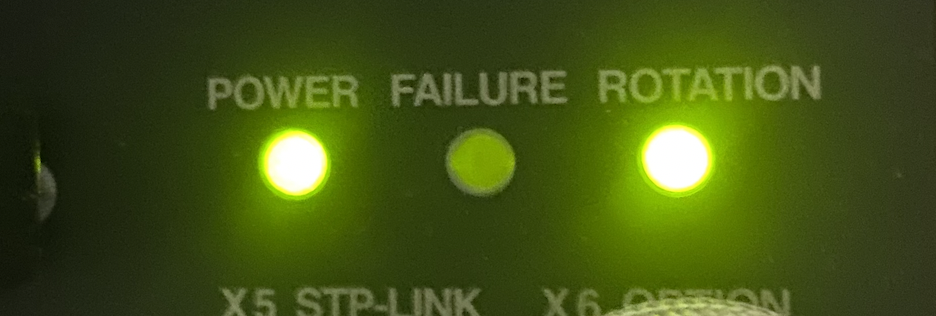

(POWER : ON
FAILURE : OFF
ROTATION : ON)
So, I couldn't find the reason...

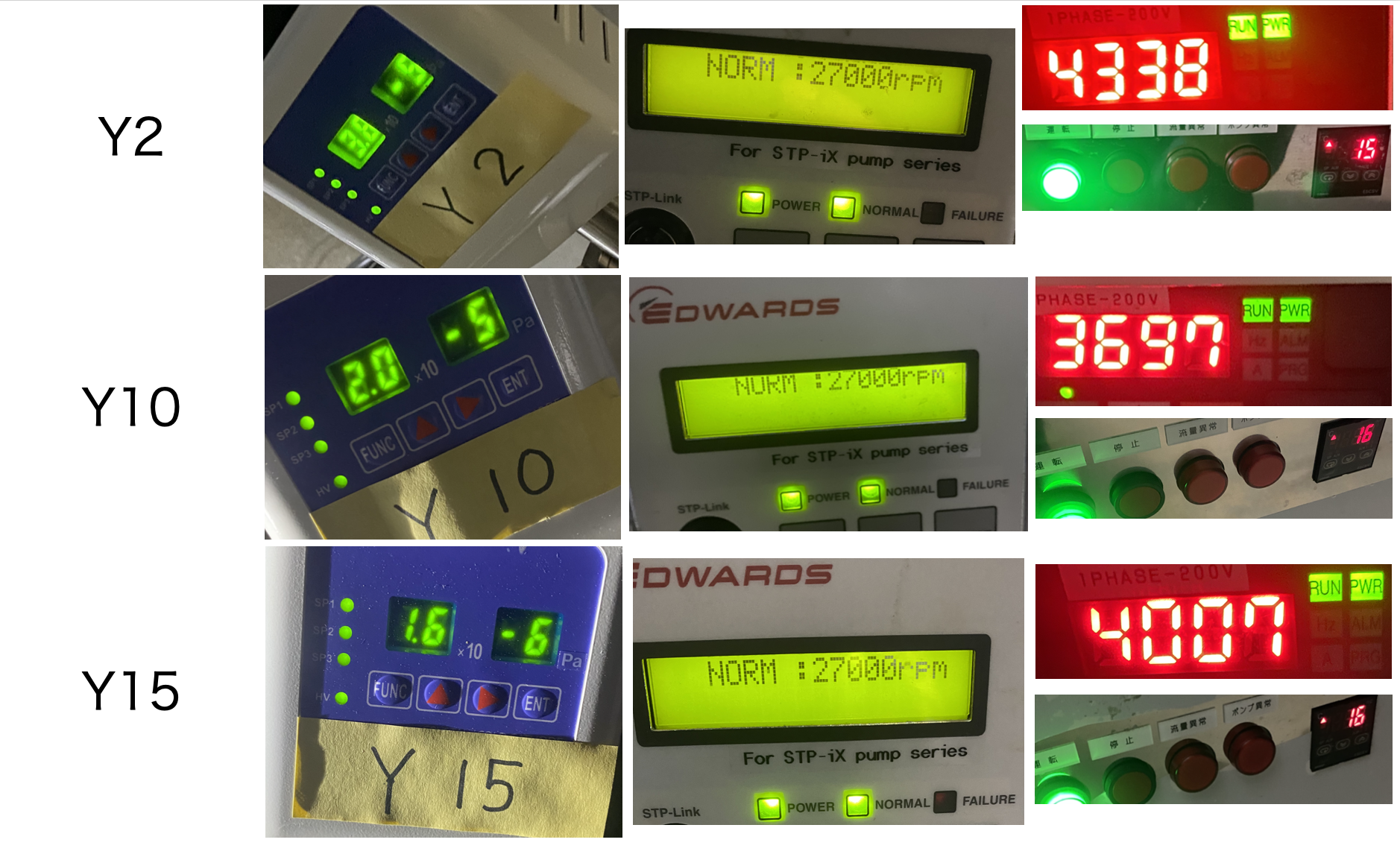

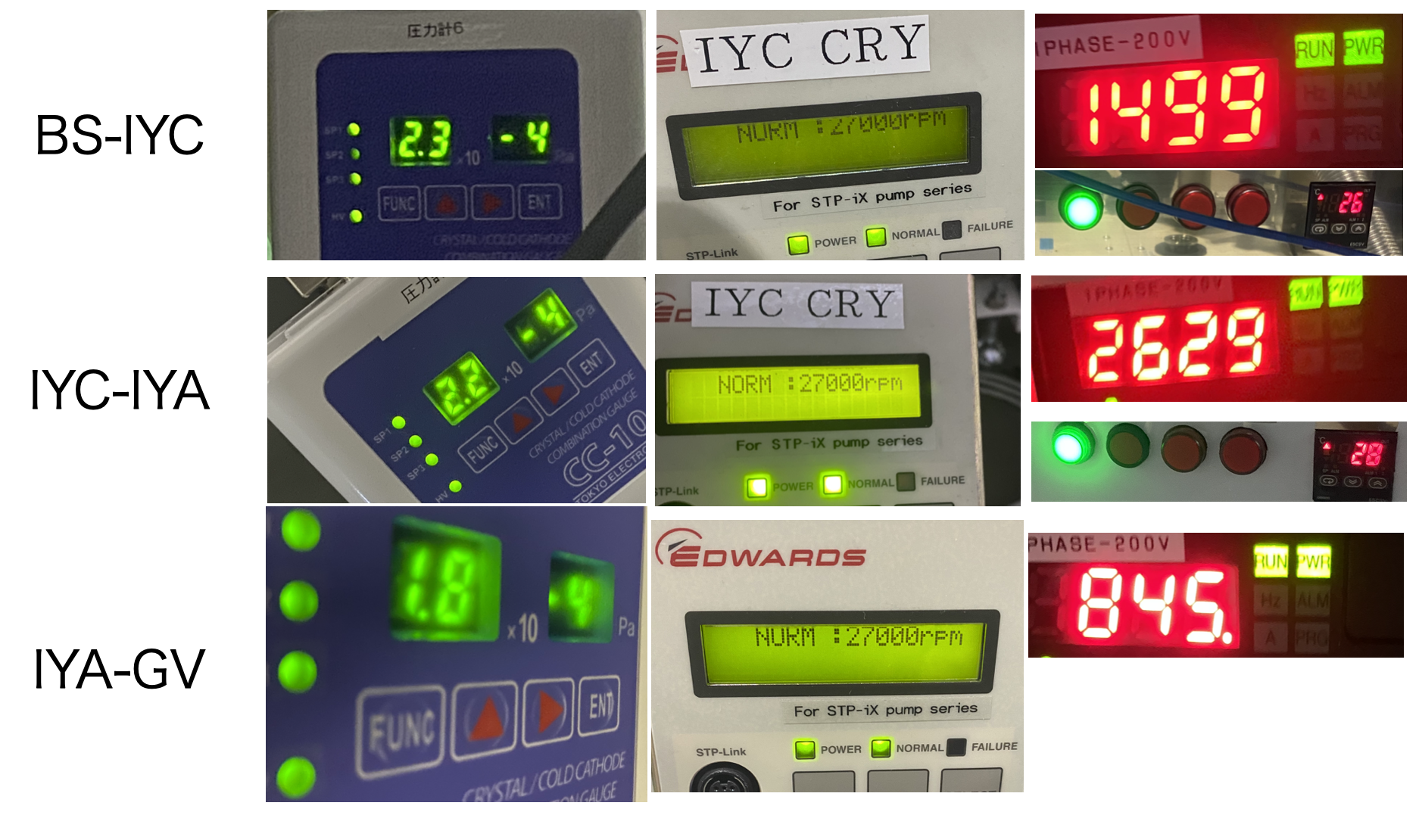

The cc-10 values are :
BS-IYC : 2.3e-4 Pa
IYC-IYA : 2.2e-4 Pa (Epics channel)
IYA-GV : 1.8e-4 Pa
Y2 : 3.8e-5 Pa
Y10 : 2.0e-5 Pa
Y15 : 1.6e-6 Pa (Epics channel)

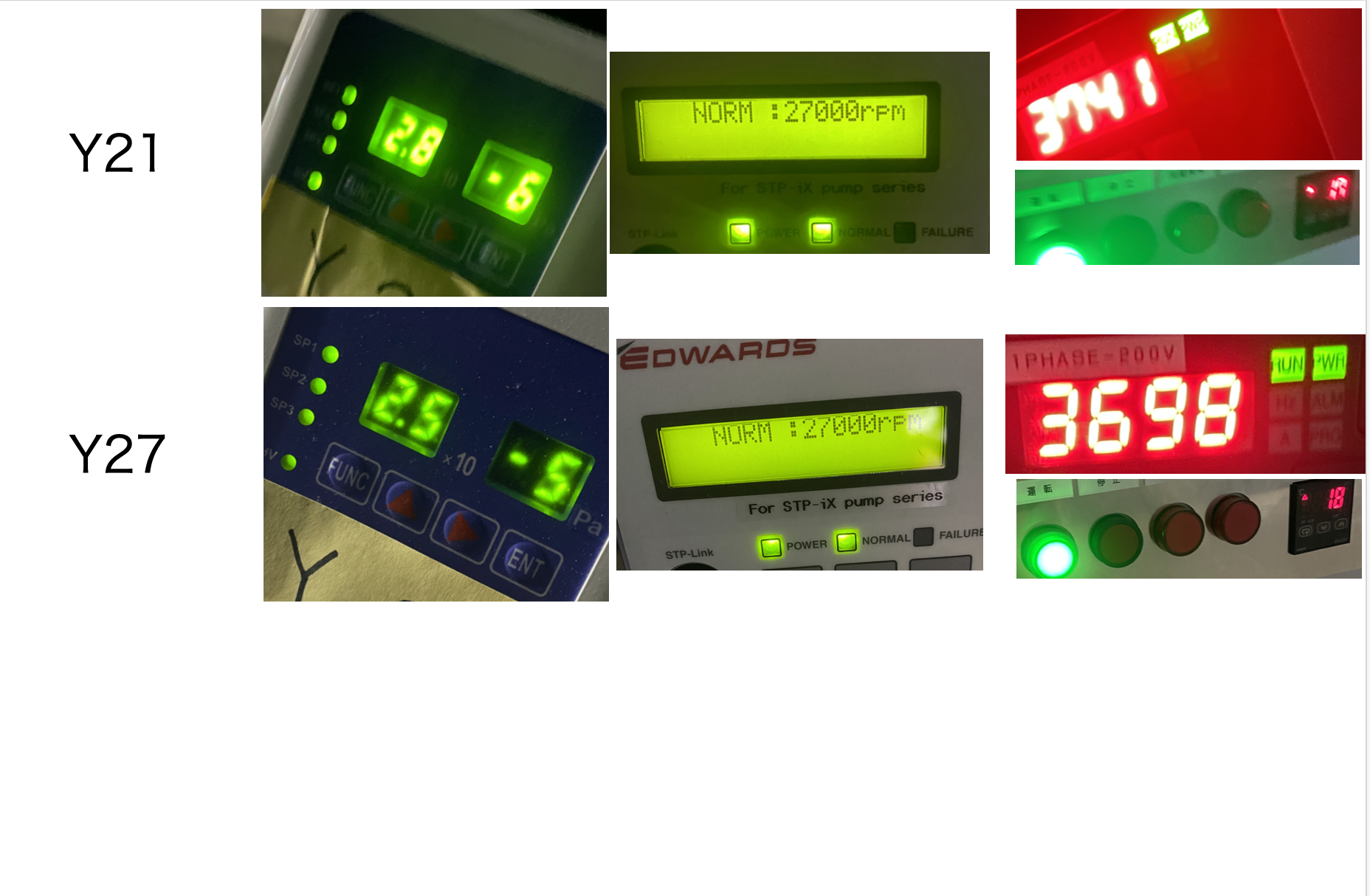

Y21 : 2.8e-6 Pa
Y27 : 2.5e-5 Pa

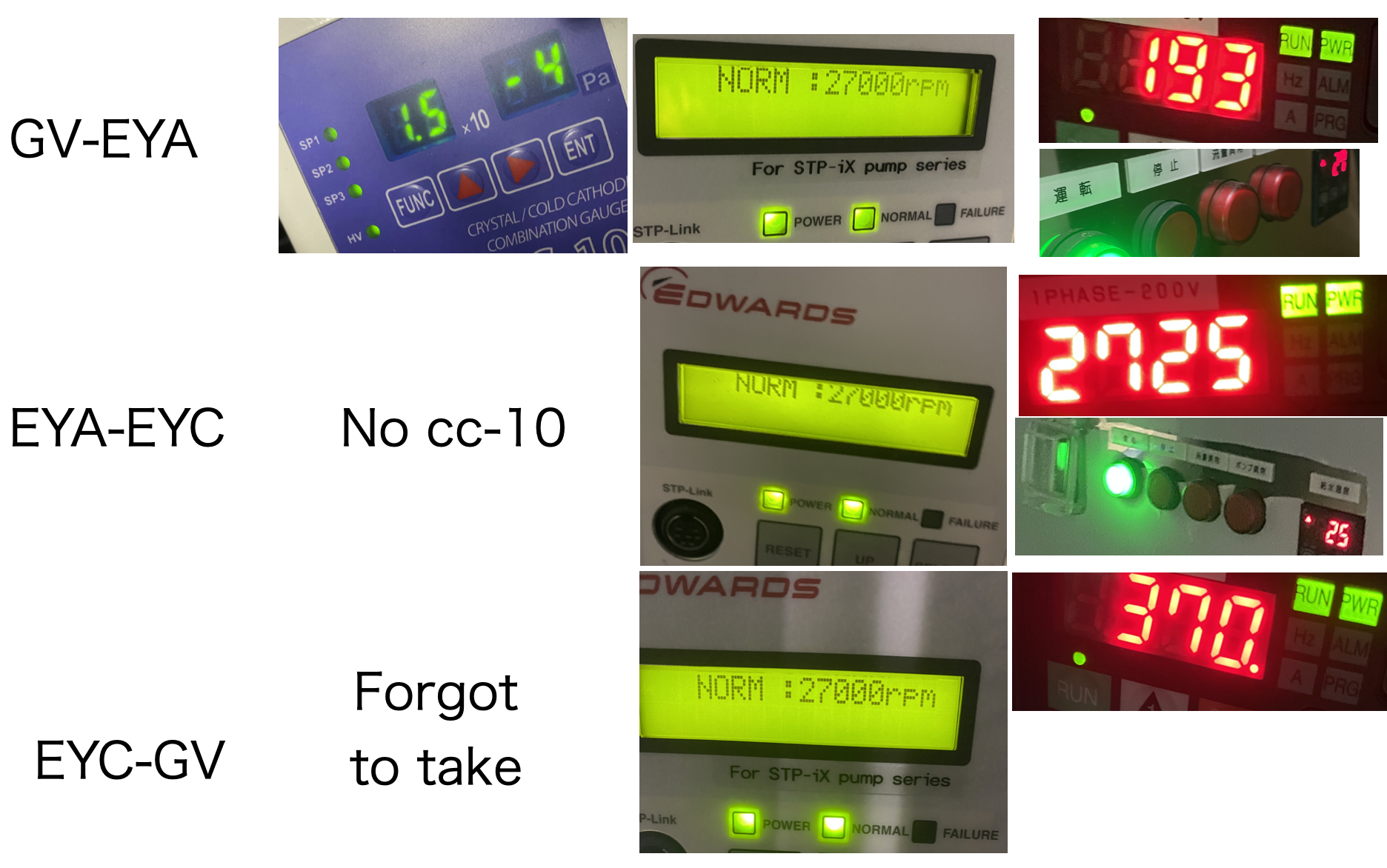

GV-EYA : 1.5e-4 Pa (Epics channel)
From those value, Y10 seems higher compared with Y21, but I want to ask expert to check it.
(Yesterday) -> (Today)
BS-IYC : 2.3e-4 Pa -> 2.2e-4 Pa
IYC-IYA : 2.2e-4 Pa -> 2.1e-4 Pa
IYA-GV : 1.8e-4 Pa -> 1.8e-4 Pa
Y2 : 3.8e-5 Pa -> 3.7e-4 Pa
Y10 : 2.0e-5 Pa -> 2.1e-5 Pa
Y15 : 1.6e-6 Pa -> 1.9e-6 Pa
Y21 : 2.8e-6 Pa -> 2.9e-6 Pa
Y27 : 2.5e-5 Pa -> 2.4e-5 Pa
And finally I found the gate value at Y-10 was CLOSED.
I found some klog(https://klog.icrr.u-tokyo.ac.jp/osl/?r=18535), previously troubled.
From that time (October 2021), this gate valve was closed,
so I opened gate valve again and I will monitor the vacuum level this weekend.
After opening the gate valve, the value of cc-10 became 1.5e-5 Pa

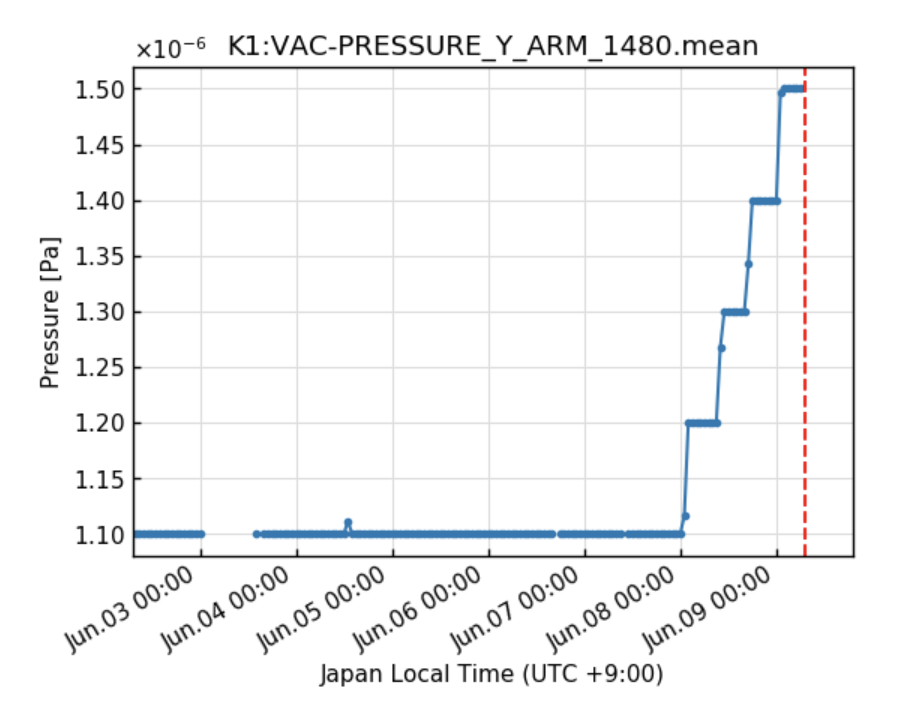

I tried the check the exact time to increase the vacuum level
First increasing occurred at 2:00 a.m. 8th June (Early Wednesday)
(Thursday) -> (Friday) -> (Today(Monday))
BS-IYC : 2.3e-4 Pa -> 2.2e-4 Pa -> 2.0e-4 Pa
IYC-IYA : 2.2e-4 Pa -> 2.1e-4 Pa -> 1.9e-4 Pa
IYA-GV : 1.8e-4 Pa -> 1.8e-4 Pa -> 1.6e-4 Pa
Y2 : 3.8e-5 Pa -> 3.7e-4 Pa -> 3.2e-5 Pa
Y10 : 2.0e-5 Pa -> 2.1e-5 Pa -> 3.0e-6 Pa
Y15 : 1.6e-6 Pa -> 1.9e-6 Pa -> 1.1e-6 Pa
Y21 : 2.8e-6 Pa -> 2.9e-6 Pa -> 2.9e-6 Pa
Y27 : 2.5e-5 Pa -> 2.4e-5 Pa -> 2.2e-6 Pa

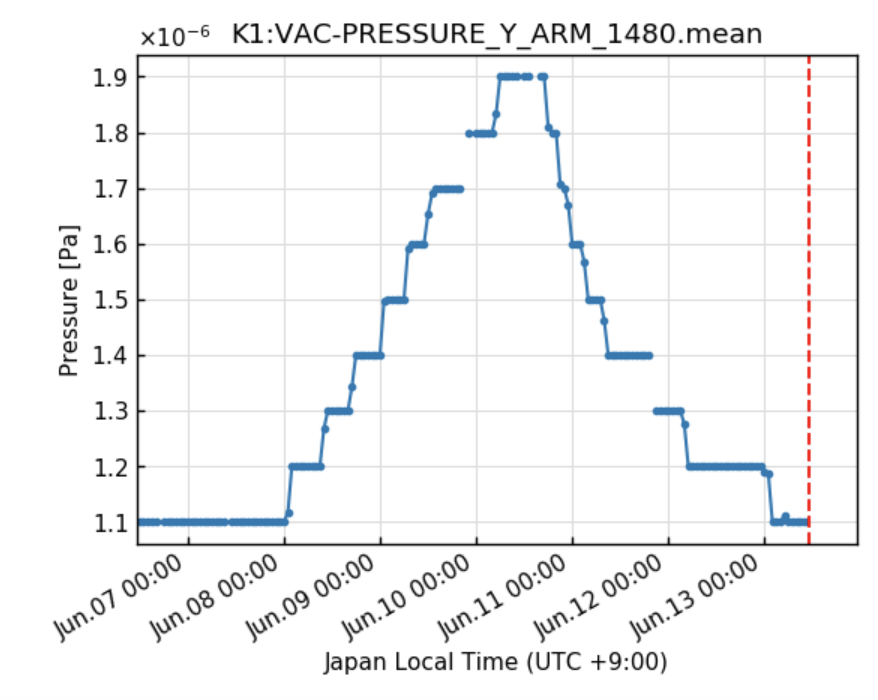

The vacuum level of Yarm 1500 recovered after opening the Y-10 gate valve.
