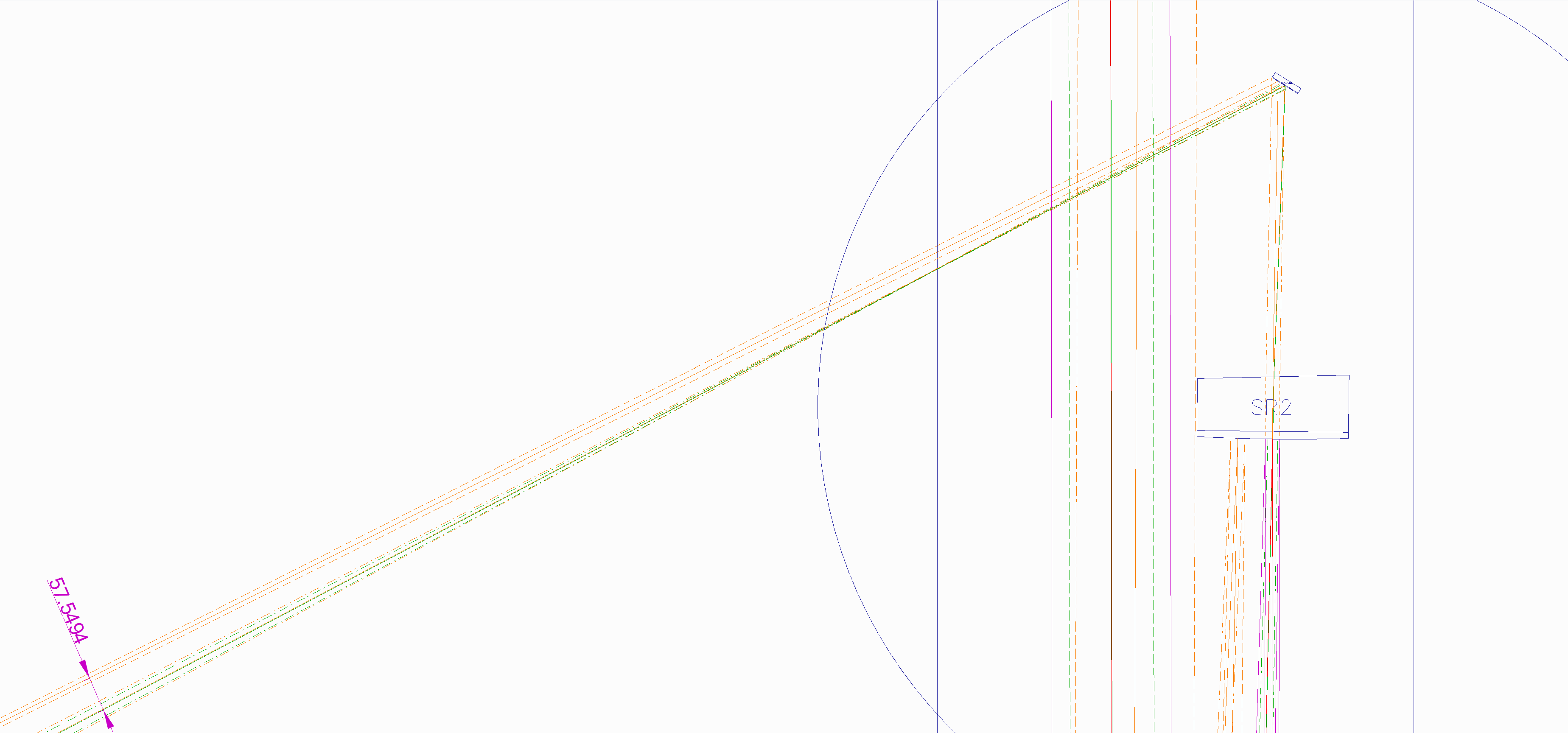

Here is a ray-tracing result of the POS beams.

At the POS table periscope, the separation between the green beam and the backward IR beam is about 60mm.

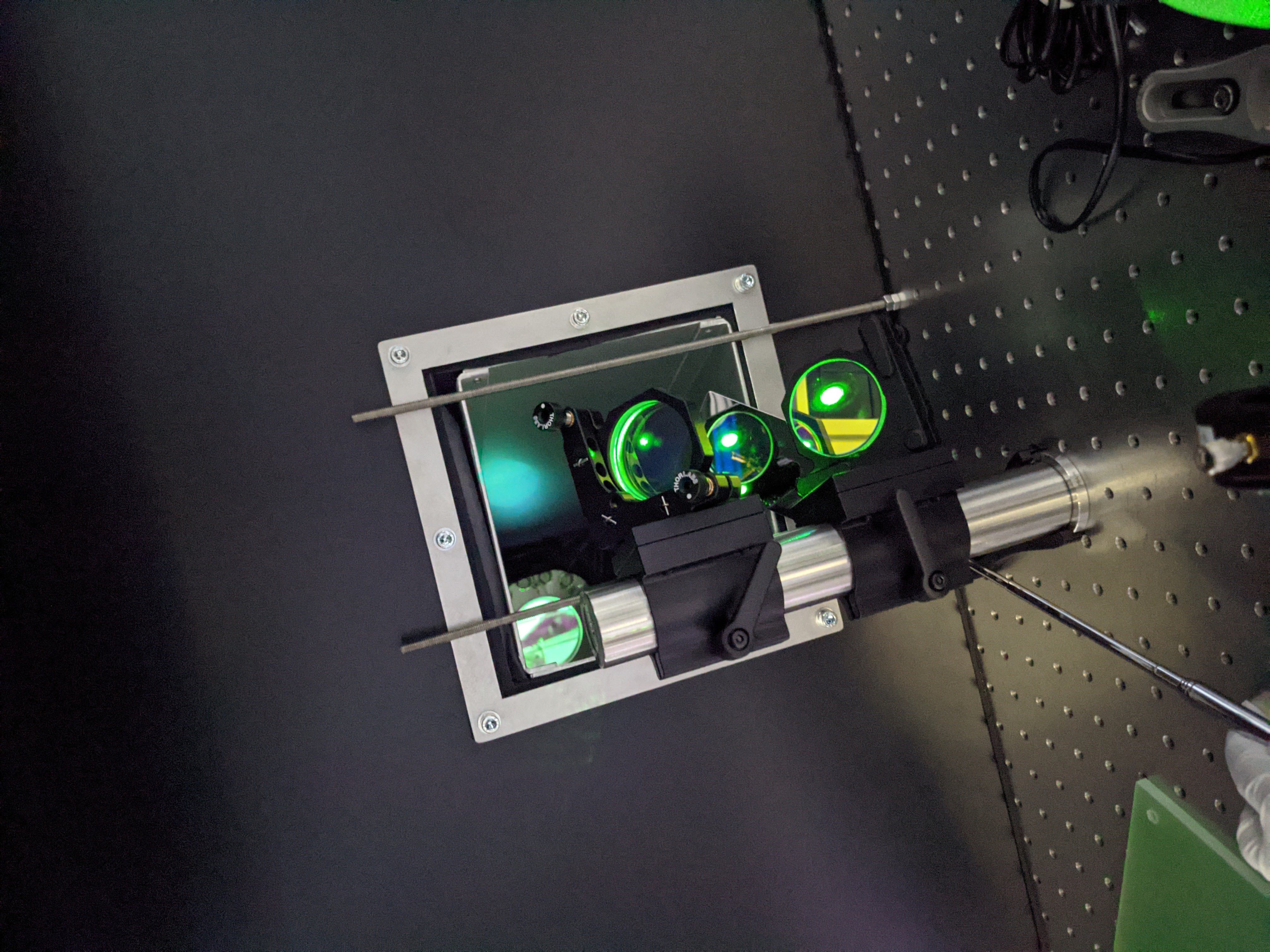

The current positions of the green beam on the periscope mirrors are shifted to right, which is the correct direction.
However, the amount of shift may not be enough.

When adjusting the green beam path, we should adjust this first.
