MIF (General)
takaaki.yokozawa - 8:53 Wednesday 19 February 2020 (13034) Print this report

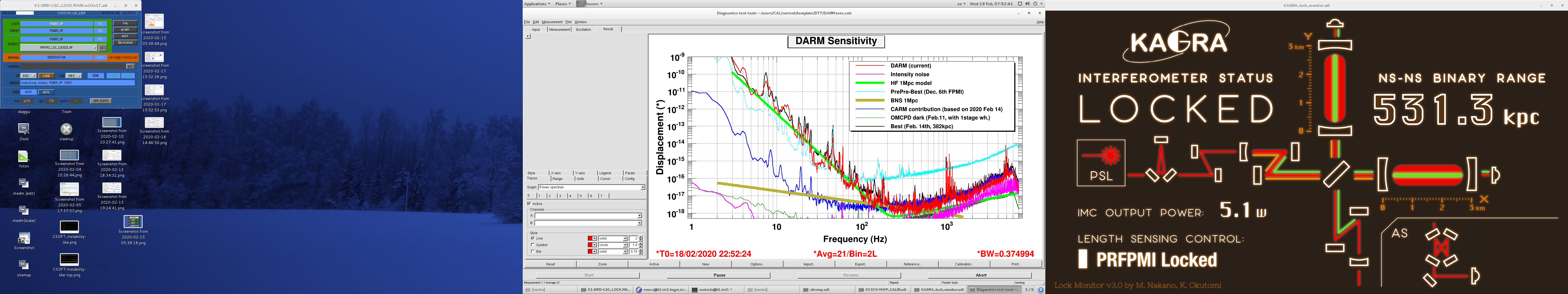

Current best screenshot

Images attached to this report
Comments to this report:
hyungwon.lee - 9:01 Wednesday 19 February 2020 (13036) Print this report
great!
shinji.miyoki - 7:39 Thursday 20 February 2020 (13067) Print this report

Accoeding to my calculation, the sensitivity cleaning (toward nearer 10^-18 [m/rHz] and remove peaks and bumps) "only" around 100 - 200 Hz can extend the range about  a factor of 1.9.

However, peaks around 180Hz are suspension sapphire fibers resonances.

Blue : KAGRA Displacement

Green : Simulated cleanline with better around 100-200Hz

Red: Simulated clean line with worse around 100-200Hz

Violet: 1.4-1.4 BNS Chirp signal projection ( 1/sqrt(5) factor is included )

Images attached to this comment
masayuki.nakano - 7:49 Thursday 20 February 2020 (13070) Print this report

Updated

Images attached to this comment
hyungwon.lee - 11:45 Thursday 20 February 2020 (13074) Print this report
Good job for increasing laser power.
It seems that the most important noise hunting should be done for 180~200Hz noise budget to achieve 1Mpc.
One more stupid questions, can we try to increase laser power to 10.0W, then stabilize?
