MIF (ITF Control)
yutaro.enomoto - 1:46 Friday 14 June 2019 (9236) Print this report
Some calculation around PRCL PDH signal and Gouy phase

[Stefan, Eleonora, Masayuki, Yutaro]

1. PRCL PDH signal with HOMs
Conditions:
- REFL_45I
- Relative power of each HOM: 0.3

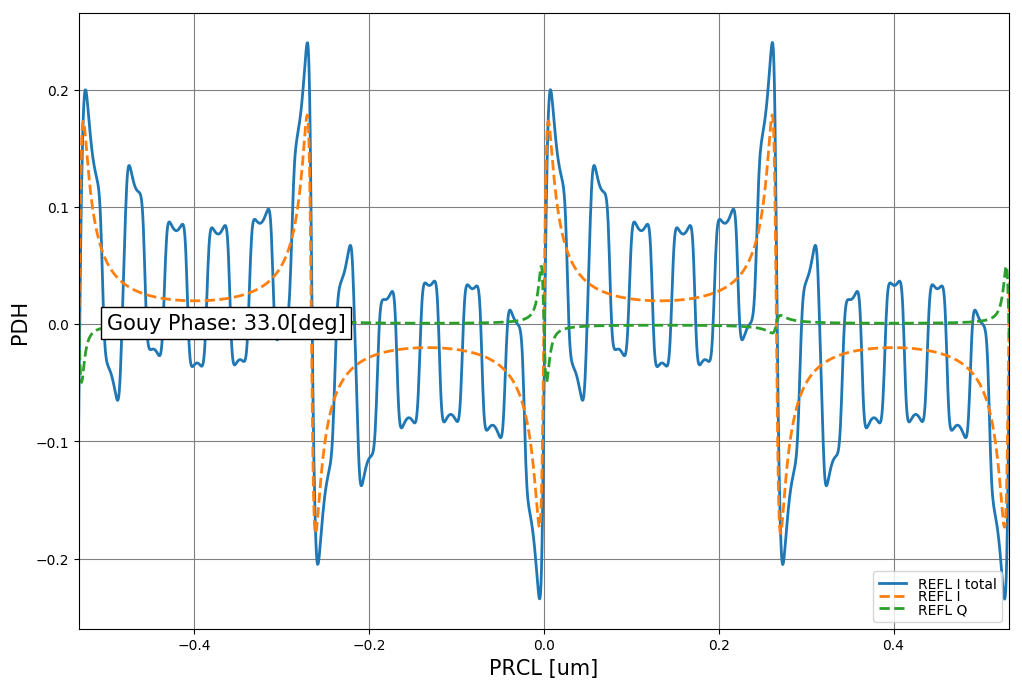

First plot: Gouy phase in PRC = 33.0 deg (nominal)

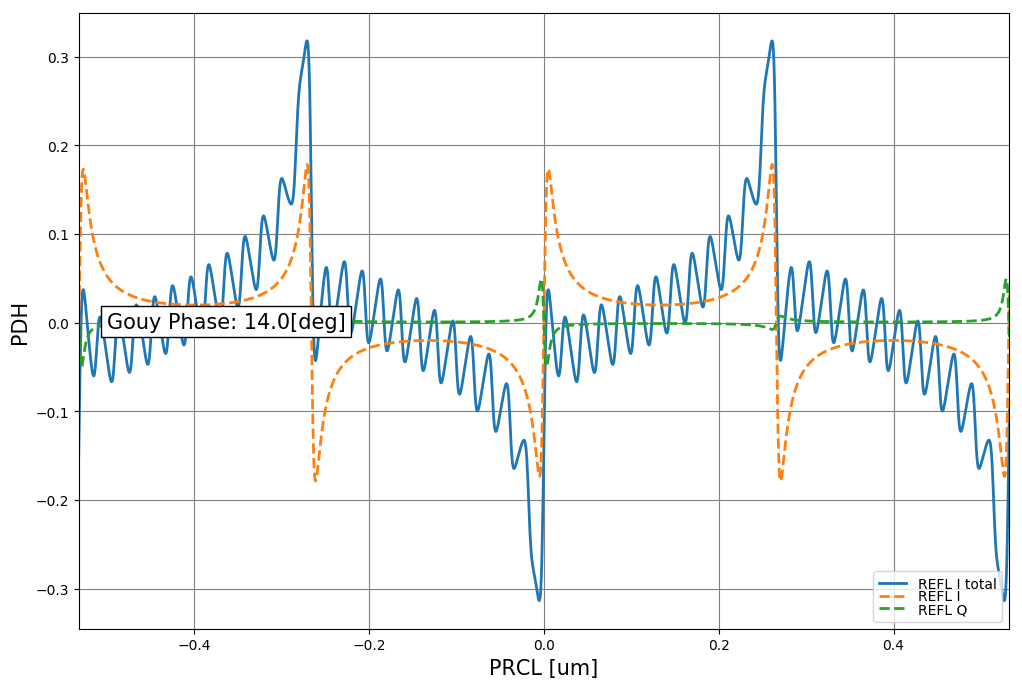

Second plot: Gouy phase in PRC = 14.0 deg

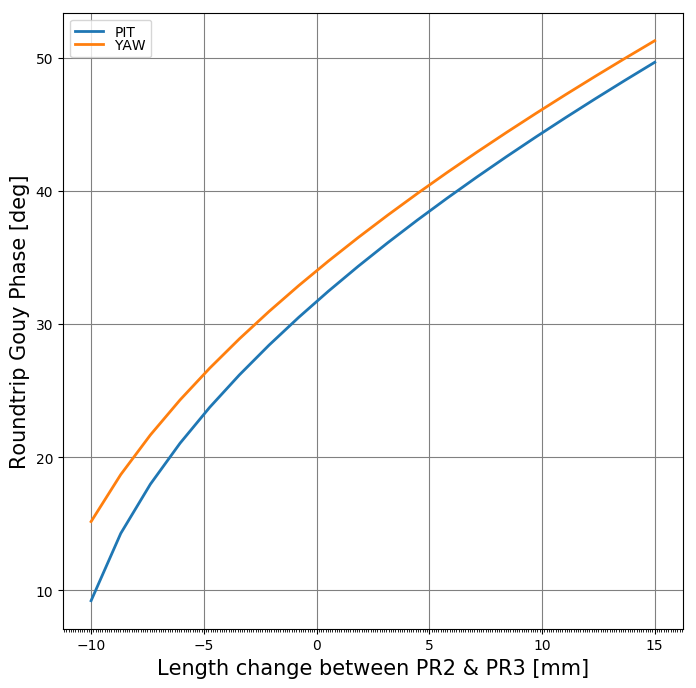

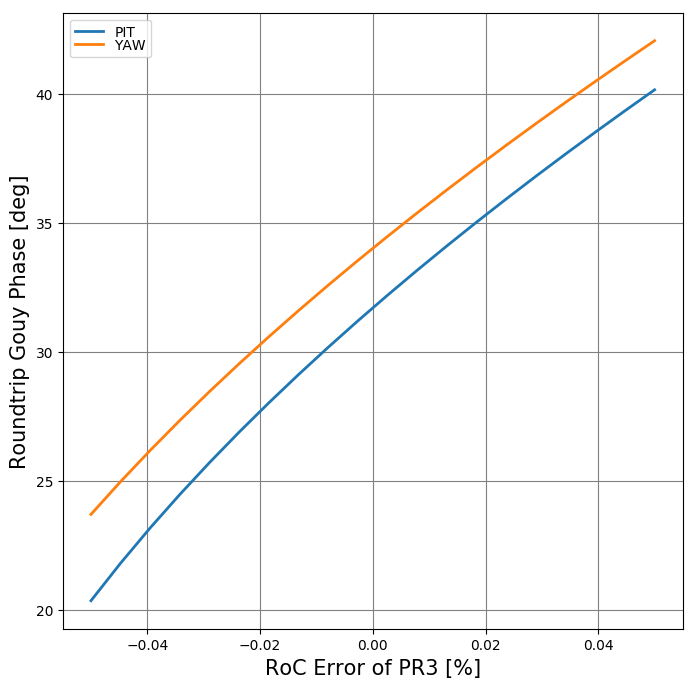

2. PRC Gouy phase vs {PR2-PR3 distance | PR2 RoC error | PR3 RoC error}
Plots are attached.
Tiny errors in any of them would give us ~15 deg of Gouy phase.

Images attached to this report
Comments to this report:
yutaro.enomoto - 23:35 Friday 14 June 2019 (9245) Print this report

Gouy phase vs deviations in SRC parameters.

Images attached to this comment
