VIS (SRM)
mark.barton - 17:23 Friday 09 November 2018 (6927) Print this report
SRM Installation

With Enzo, Hirata-san and Fabian.

Today:

  • Enzo and Fabian continued routing SF/... cables up via the cap and flying saucer to the underside of the F0.

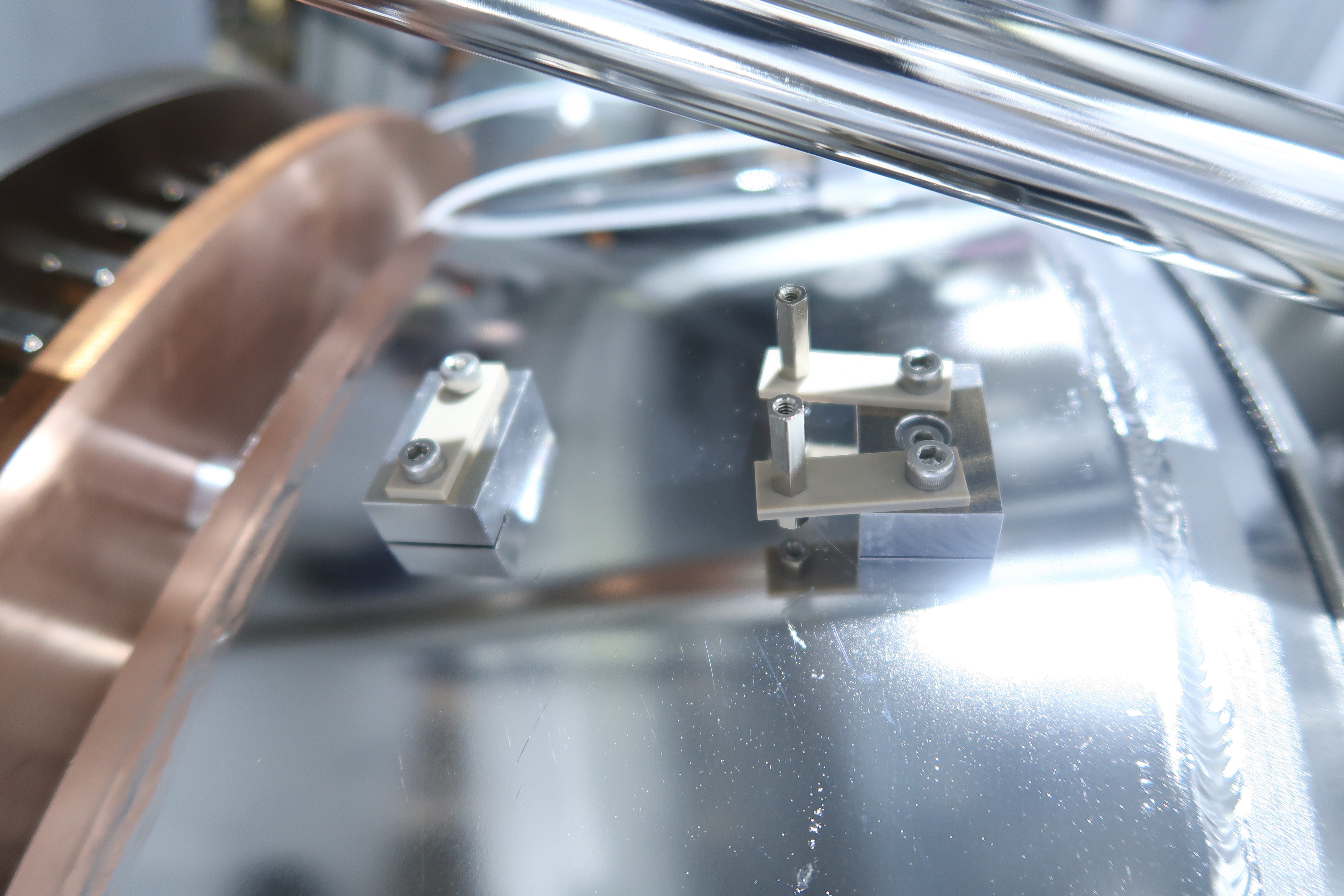

  • Fabian noticed that the DSub9 connectors are ferromagnetic and are strongly attracted to the magnets on the SF damper. This may explain the cross coupling from damper height to yaw that we were seeing on SR3. He improvised a method for anchoring connectors on the side of the cap (see photo) and will revise any routing that puts a connector near the damper.
  • Hirata-san installed the top ring for the LBB damper on the ceiling of the lower section of the tank.
Images attached to this report
